SOB Series Oval Suction Cup Special for Metal Sheet

SOB Series Oval Suction Cup Special for Metal Sheet
SOB Series Oval Suction Cup Special for Metal Sheet

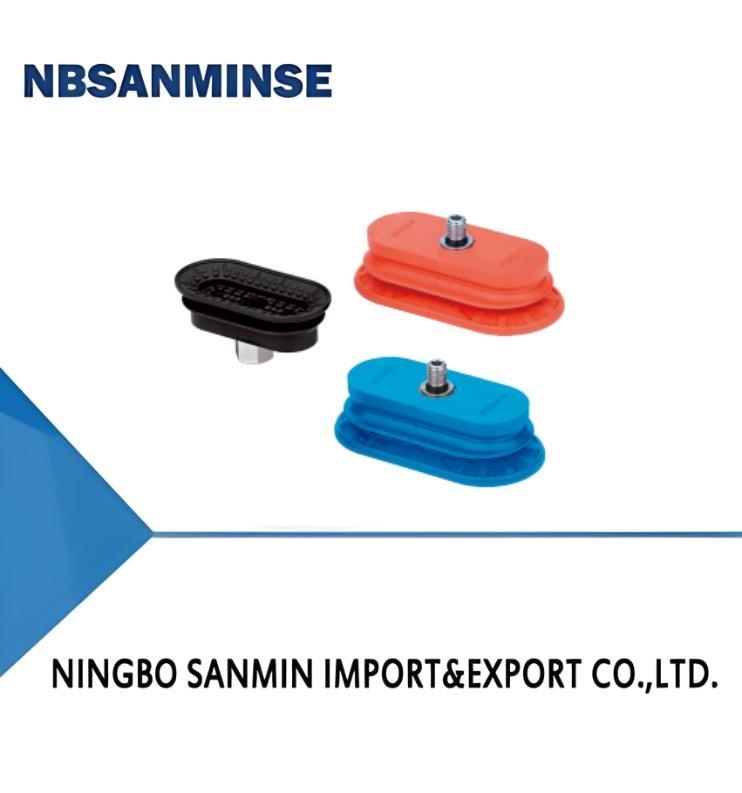

SOB Series Oval Suction Cup Special for Metal Sheet SOB Series Oval Suction Cup Special for Metal Sheet

Large Image :  SOB Series Oval Suction Cup Special for Metal Sheet

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SOB30×60
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

SOB Series Oval Suction Cup Special for Metal Sheet

Description
Vertical Pull-out: 53force N Lateral Pull-out: 50(Oily Surface)N
Inner Volume: 8.7 Cm³ Min.curve Radius Of: 25mm
Highlight:

oval suction cup for metal sheet

,

SOB series pneumatic suction cup

,

metal sheet suction cup with warranty

Features
  • 1.5 Bellows oval structure
  • Internal large area pattern support structure
  • Various sizes and specifications are available
Advantages
  • Handling long and narrow workpieces with even surface or curvature
  • The max. temp of HK material is 250℃, it can be used to pick up high temp metal sheet
  • The max. temp of HD material is 160℃, it can be used to pick up high temp glass without mark
  • Suitable for workpieces with different sizes and shapes
Applications
  • Handling narrow and long metal parts in fast speed, short cycle time
  • Handling metal sheet and aluminum plates without deformation
  • Handling automotive stamping metal parts
SOB Series Oval Suction Cup Special for Metal Sheet 0
Structure
  • 1.5 Bellows structure
  • Suction cup and fitting are one-piece structure
SOB Series Oval Suction Cup Special for Metal Sheet 1
SOB      30×60      N-G3F
①        ②         ③      ④
① Series ②Size ③ Material & Hardness
④ Connection thread
SOB 30×60 N - NBR 60 G2F-G1/4female thread

40×80 HK-Extra high temp rubber 65 G3F-G3/8female thread

55×110 HD-High temp/mark free material 60 G2M - G1/4 male thread
70×140

M10M-M10×1.5male thread



M14M-M14×1.5 male thread
RA-Rectangular adapter
Selection
  Model Connection thread G2M M1M M14M G2F G3F RA
 SOB30×60N-□ SOB30×60N-G2M SOB30×60N-M10M SOB30×60N-M14M SOB30×60N-G2F SOB30×60N-G3F SOB30×60N-RA
 SOB40×80N-□ SOB40×80N-G2M SOB40×80N-M10M SOB40×80N-M14M SOB40×80N-G2F SOB40×80N-G3F SOB40×80N-RA
  SOB55×110N-□ SOB55×110N-G2M SOB55×110N-M10M SOB55×110N-M14M SOB55×110N-G2F SOB55×110N-G3F SOB55×110N-RA
SOB70×140N-□ SOB70×140N-G2M SOB70×140N-M10M SOB70×140N-M14M SOB70×140N-G2F SOB70×140N-G3F SOB70×140N-RA
Model Connection thread G2M G2F G3F
SOB30×60HK- □ SOB30×60HK-G2M SOB30×60HK-G2F SOB30×60HK-G3F
SO40×80HK-□ SOB40×80HK-G2M SOB40×80HK-G2F SOB40×80HK-G3F
SOB55×110HK-□ SOB55×110HK-G2M SOB85×110HK-G2F SOB55×110HK-G3F
SOB70×140HK-□ SOB70×140HK-G2M SOB70×140HK-G2F SOB70×140HK-G3F
Model Connection thread G2M G2F G3F
SOB30×60HD- □ SOB30×60HD-G2M SOB30×60HD-G2F SOB30×60HD-G3F
SOB40×80HD-□ SOB40×80HD-G2M SOB40×80HD-G2F SOB40×80HD-G3F
SOB55×110HD-□ SOB55×110HD-G2M SOB55×110HD-G2F SOB55×110HD-G3F
SOB70×140HD-□ SOB70×140HD-G2M SOB70×140HD-G2F SOB70×140HD-G3F
Technical parameters
Model Vertical
pull-outforce
N		 Lateral
pull-outforce
N		 Lateral
pull-out force
(Oily surface)N		 Inner
volume
cm³		 Min.curve radius
of  workpiece
мм		 Weight g Recommended
hose dia.
мм		 MPQ
pcs
SOB30×60 53 60 50 8.7 25 26 6 1
SOB40×80 110 118 101 20 32 33 8 1
SOB55×110 197 200 183 50 50 75 8 1
SOB70×140 275 295 267 100 70 117 8 1

Technical parameters
Model Vertical
pull-outforce
N		 Lateral
pull-outforce
N		 Lateral
pull-out force
(Oily surface)N		 Inner
volume
cm³		 Min.curve radius
of workpiece
мм		 Weight g Recommended
hose dia.
мм		 MPQ
pcs
SOB30×60 53 60 50 8.7 25 26 6 1
SOB40×80 110 118

 101

 20 32 33 8 1
SOB55×110 197 200 183 50 50 75 8 1
SOB70×140 275 295 267 100 70 117 8 1

Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor. The data may be different according to different workpiece surfaces

SOB Series Oval Suction Cup Special for Metal Sheet 2

M - Male thread connection

Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
