SOF Series Oval Flat Suction Cup Speical for Metal Sheet

SOF Series Oval Flat Suction Cup Speical for Metal Sheet
SOF Series Oval Flat Suction Cup Speical for Metal Sheet

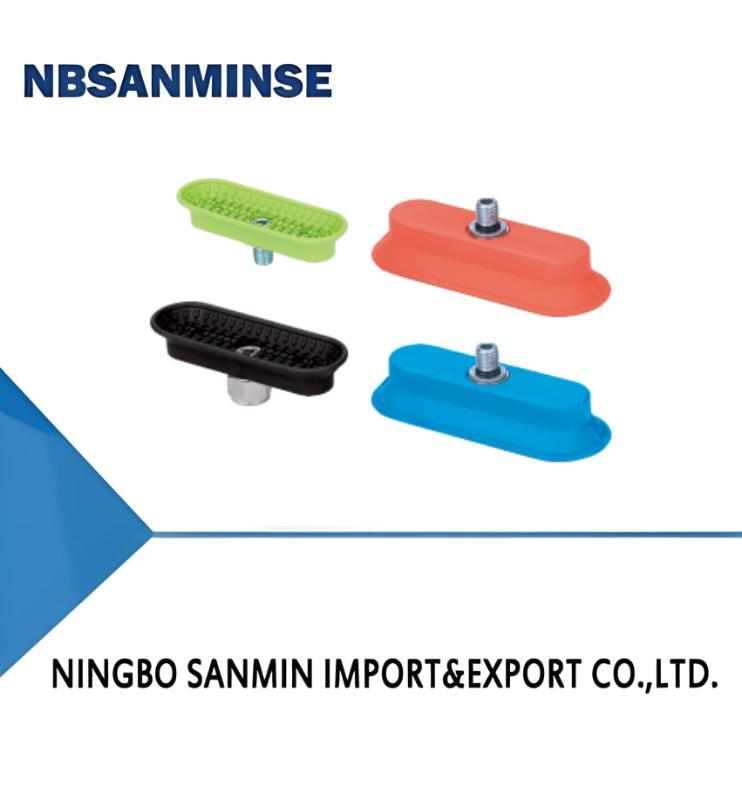

SOF Series Oval Flat Suction Cup Speical for Metal Sheet SOF Series Oval Flat Suction Cup Speical for Metal Sheet

Large Image :  SOF Series Oval Flat Suction Cup Speical for Metal Sheet

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SOF16×50
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

SOF Series Oval Flat Suction Cup Speical for Metal Sheet

Description
Vertical Pull-out: 33 Force N Lateral Pull-out: 12(Oily Surface)N
Inner Volume: 2 Cm³ Min.curve Radius Of Workpiece: 8mm
Warranty: 1 Year
Highlight:

oval flat suction cup for metal

,

pneumatic solenoid valve suction cup

,

metal sheet suction cup with warranty

Features
◇ Oval flat suction cup
◇ Internal large area pattern support structure
◇ Various sizes are available
Advantages
◇ Handling long and narrow workpieces
◇ Effectively enhance friction force between suction cups and workpieces
◇ The max. temp of HK material is 250℃, it can be used to pick up high
temp metal sheet
◇ The max. temp of HD material is 160℃, it can be used to pick up high
temp glass without mark
◇ Suitable for workpieces with different sizes and shapes

Applications
◇ Handling narrow and long metal parts in fast speed, short cycle time
◇ Handling metal sheet and aluminum plates without deformation
◇ Handling automotive stamping metal parts
SOF Series Oval Flat Suction Cup Speical for Metal Sheet 0
Structure
◇ Suction cup and fitting are one-piece structure
SOF Series Oval Flat Suction Cup Speical for Metal Sheet 1


SOF    40×80N-G3F
①②③④
①Series ②Size
③Material&Hardness
④Connection thread
SOF 16×50 40×110 N-NBR 60  G2F-G1/4 female thread M10M-M10×1.5 male thread
20×80 50×100 NG-NBR 45  G3F-G3/8female thread M14M-M14×1.5 male thread
23×60 60×120 HK-Extra high temprubber 65  G2M-G1/4 male thread RA-Rectangular adapter
30×90 70×140 HD-High temp/mark free material 60

40×80





Selection
Model Connection thread
G2M		 M10M M14M G2F G3F RA
SOF16×50□-□ SOF16×50□-G2M SOF16×50□-M10M
SOF20×80□-M10M		 SOF16×50□-M14M SOF16×50□-G2F SOF16×50□-G3F SOF16×50□-RA
SOF20×80□-□ SOF20×80□-G2M SOF20×80□-M10M SOF20×80□-M14M SOF20×80□-G2F SOF20×80□-G3F SOF20×80□-RA
SOF23×60□-□ SOF23×60□-G2M SOF23×60□-M10M SOF23×60□-M14M SOF23×60□-G2F SOF23×60□-G3F SOF23×60□-RA
SOF40×80□-□ SOF40×80□-G2M SOF40×80□-M10M SOF40×80□-M14M SOF40×80□-G2F SOF40×80□-G3F SOF40×80□-RA
SOF30×90□-□ SOF30×90□-G2M SOF30×90□-M10M SOF30×90□-M14M SOF30×90□-G2F SOF30×90□-G3F SOF30×90□-RA
SOF40×110□-口 SOF40×110□-G2M SOF40×110□-M10M SOF40×110□-M14M SOF40×110□-G2F SOF40×110□-G3F SOF40×110□-RA
SOF50×100□-口 SOF50×100□-G2M SOF50×100□-M10M SOF50×100□-M14M SOF50×100□-G2F SOF50×100□-G3F SOF50×100□-RA

SOF60×120□-口		 SOF60×120□-G2M SOF60×120□-M10M SOF60×120□-M14M SOF60×120□-G2F SOF60×120□-G3F SOF60×120□-RA
SOF70×140□-□ SOF70×140□-G2M SOF70×140□-M10M SOF70×140□-M14M SOF70×140□-G2F SOF70×140□-G3F SOF70×140□-RA

Model

Connecticmthread

 G2M

 C2F G3F     Model Conmection thread
G2M		 G2F G3F
S0F16×50-K-□ S0F16×50HK-G2M S0F16×50HK-G2F S0F16×50HK-G3F S0F16×50HD-□ SOF16×50HD-G2M SOF16×50HD-G2F S0F16×50-D-G3F
S0F20×BC-K-□ S0F20×80HK-G2M S0F20×80HK-C2F S0F20×B0HK-G3F S0F20×B0ED-□ S0F20×80ED-G2N S0F20×80HD-C2F S0F20×80-D-G3F
S0F23×60-K-□ S0F23×60HK-G2M S0F23×60HK-C2F S0F23×60HK-G3F S0F23×60HD-□ SOF23×60HD-G2M SOF23×60HD-G2F S0F23×60-D-G3F
S0F40×BC-K-□ S0F40×80HK-G2M S0F40×80HK-C2F S0F40×B0HK-G3F S0F40×B0ED-□ SOF40×80HD-G2M SOF40×80HD-C2F S0F40×8C-D-G3F
S0F30×90-K-□ S0F30×90HK-G2M S0F30×90HK-G2F S0F30×90HK-G3F S0F30×90HD-□ S0F30×90ED-G2N S0F30×90HD-G2F S0F30×90-D-G3F
S0F40×110HK-□ S0F40×110HK-G2M S0F40×110HK-C2F S0F40×110HK-G3F S0F40×110HD-□ S0F40×11CHD-GZM S0F40×110HD-G2F S0F40×110HD-G3F
S0F50×100HK-□ S0F50×100EK-G2M S0F50×10CHK-G2F S0F50×100HK-G3F S0F50×100HD-□ S0F50×10C-D-G2M S0F50×10C-D-C2F S0F50×100HD-G3F
S0F60×120HK-□ S0F60×120EK-G2M S0F60×120HK-G2F S0F60×120HK-G3F S0F60×120HD-□ S0F60×120FD-G2M S0F60×120HD-G2F S0F60×120HD-G3F
S0F70×140HK-□ S0F70×140HK-G2M S0F70×140HK-C2F S0F70×140HK-G3F S0F70×140HD-□ S0F70×14CHD-G2M S0F70×140HD-G2F S0F70×140HD-G3F

Model Vertical
pull-
out force
N		 Lateral
pull-
out force
N		 Lateral
pull-out force
(oily surface)N		 Inner
volume
cm³		 Min.curve radius
of workpiece
mm		 Weight g Recommended
hose dia.
mm		   MPQ
  pcs
SOF16×50 33  24  12  2  8  17  4    1
SOF20×80 78  38  35  5  25  23  4    1
SOF23×60 57  37  33  3  20  29  4    1
SOF30×90 125  77  60  10  30  24  4    1
SOF40×80 141  110  100  11  50  43  6    1
SOF40×110 200  188  118  25  35  47  6    1
SOF50×100 217  181  121  20  75  56  6    1
SOF60×120 312  254  170  35  75  70  6    1
SOF70×140 445  344  230  52  90  77  8    1




◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces.
SOF Series Oval Flat Suction Cup Speical for Metal Sheet 2


Model/Size L W H G LG h 5  Y
SOF16×50□-G2F 50  16  19.5  G1/4 11  14  17  3
SOF16×50□-G3F 50  16  19.5  G3/8 11  14  22  3
SOF16×50□-RA 50  16  19.5  31.8×31.8 4.7  18.7  - 3
SOF20×80□-G2F 84  24  15.5  G1/4 11  14  17  5
SOF20×80□-G3F 84  24  15.5  G3/8 11  14  22  5
SOF20×80□-RA 84  24  15.5  31.8×31.8 4.7  18.7  - 5
SOF23×60□-G2F 61.5  22.5  12  G1/4 11  14  17  3
SOF23×60□-G3F 61.5  22.5  12  G3/8 11  14  22  3
SOF23×60□-RA 61.5  22.5  12  31.8×31.8 4.7  18.7  - 3
SOF30×90□-G2F 93  33  16  G1/4 11  14  17  5
SOF30×90□-G3F 93  33  16  G3/8 11  14  22  5
SOF30×90□-RA 93  33  16  31.8×31.8 4.7  18.7  - 5
SOF40×80□-G2F 82  39  14  G1/4 11  14  17  4
SOF40×80□-G3F 82  39  14  G3/8 11  14  22  4
SOF40×80□-RA 82  39  14  31.8×31.8 4.7  18.7  - 4
SOF40×110□-G2F 113  43  21.5  G1/4 11  14  17  6
SOF40×110□-G3F 113  43  21.5  G3/8 11  14  22  6
SOF40×110□-RA 113  43  21.5  31.8×31.8 4.7  18.7  - 6
SOF50×100□-G2F 102  49  16  G1/4 11  14  17  5
SOF50×100□-G3F 102  49  16  G3/8 11  14  22  5
SOF50×100□-RA 102  49  16  31.8×31.8 4.7  18.7  - 5
SOF60×120□-G2F 123  58  18  G1/4 11  14  17  6
SOF60×120□-G3F
SOF60×120□-RA		 123  58  18  G3/8 11  14  22  6
123  58  18  31.8×31.8 4.7  18.7  - 6
SOF70×140□-G2F 141  67.5  19  G1/4 11  14  17  7
SOF70×140□-G3F 141  67.5  19  G3/8 11  14  22  7
SOF70×140□-RA 141  67.5  19  31.8×31.8 4.7  18.7  - 7

SOF Series Oval Flat Suction Cup Speical for Metal Sheet 3

Model/Size L W H G LG h S Y
SOF16×50□-G2M 50  16  19.5  G1/4 9  10.5  5  3
SOF16×50□-M10M 50  16  19.5  M10×1.5 12  13.5  5  3
SOF16×50□-M14M 50  16  19.5  M14×1.5 12  13.5  5  3
SOF20×80□-G2M 84  24  15.5  G1/4 9  10.5  5  5
SOF20×80□-M10M 84  24  15.5  M10×1.5 12  13.5  5  5
SOF20×80□-M14M 84  24  15.5  M14×1.5 12  13.5  5  5
SOF23×60□-G2M 61.5  22.5  12  G1/4 9  10.5  5  3
SOF23×60□-M10M 61.5  22.5  12  M10×1.5 12  13.5  5  3
SOF23×60□-M14M 61.5  22.5  12  M14×1.5 12  13.5  5  3
SOF30×90□-G2M 93  33  16  G1/4 9  10.5  5  5
SOF30×90□-M10M 93  33  16  M10×1.5 12  13.5  5  5
SOF30×90□-M14M 93  33  16  M14×1.5 12  13.5  5  5
SOF40×80□-G2M 82  39  14  G1/4 9  10.5  5  4
SOF40×80□-M10M 82  39  14  M10×1.5 12  13.5  5  4
SOF40×80□-M14M 82  39  14  M14×1.5 12  13.5  5  4
SOF40×110□-G2M 113  43  21.5  G1/4 9  11  5  6
SOF40×110□-M10M 113  43  21.5  M10×1.5 12  13.5  5  6
SOF40×110□-M14M 113  43  21.5  M14×1.5 12  13.5  5  6
SOF50×100□-G2M 102  49  16  G1/4 9  11  5  5
SOF50×100□-M10M 102  49  16  M10×1.5 12  13.5  5  5
SOF50×100□-M14M 102  49  16  M14×1.5 12  13.5  5  5
SOF60×120□-G2M 123  58  18  G1/4 9  11  5  6
SOF60×120□-M10M 123  58  18  M10×1.5 12  13.5  5  6
SOF60×120□-M14M 123  58  18  M14×1.5 12  13.5  5  6
SOF70×140□-G2M 141  67.5  19  G1/4 9  11  5  7
SOF70×140□-M10M 141  67.5  19  M10×1.5 12  13.5  5  7
SOF70×140□-M14M 141  67.5  19  M14×1.5 12  13.5  5  7

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?

Focus Point High Temperature Environment Countermeasures Extreme Cold Environment Countermeasures
Seals Fluororubber, PTFE Low-temperature nitrile, silicone rubber, polyurethane
Lubrication High-temperature synthetic grease (low volatility) Low-temperature grease (low pour point, low viscosity)
Air Supply Treatment Strengthen cooling, efficient water removal Ultra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal Components Reserve expansion clearance Select materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control Components High heat-resistant grade coils, heat dissipation, low power consumption Install insulation boxes, local heating, prevent cold condensation
Installation Keep away from heat sources, add heat insulation plates Avoid exposure to wind and snow, wrap with thermal insulation materials
