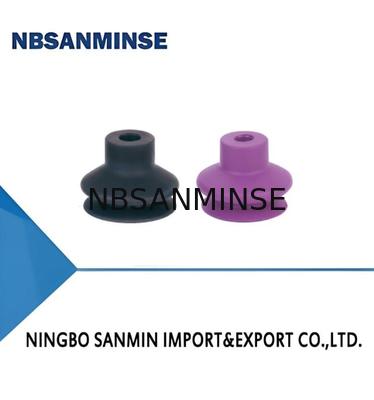

SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling

SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling
SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling
SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling

Large Image :  SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SBA6
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling

Description
Pull-out Force N: 1.4 Inner Volume: 0.1cm³
Min. Curved Radius Of Workpiece: 2 Mm Recommended Hose Dia: 4 Mm
MPQ Pcs: 10 Working Temp: 5-50degree,5~50°C
Highlight:

SBA Series bellows suction cup

,

1.5 bellows suction cup

,

pneumatic solenoid valve suction cup

Features
◇ 1.5 Bellows
◇ Special material with high temperature resistance is optional
◇ Various sizes for option
Advantages
◇ Easy to fit uneven surface of workpiece, has buffer effect
◇ Can handle workpiece with high temperature
◇ Fitting can be used repeatedly, greatly reducing customer’s cost
◇ Suitable for workpieces with different sizes and shapes
Applications
◇ Handling of workpieces with uneven surface, such as carton,
cardboard, cambered workpiece, pipe, etc.
◇ Handling high temperature plastic injection parts, metal sheet,
glass, etc.
◇ Handling smooth wood plate, smooth steel plate and so on
SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling 0
Structure
◇ 1.5 Bellows, large compressed stroke
◇ Suction cup and fitting are split structure design, wearing parts
can be replaced separately
◇ Mark free plug is optional, for grasping without any mark
SBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling 1
  SBA    33    N-G2M    -PK
①            ③         ④         ⑤
①Series ②Diameter
③Material&Hardness
④Connection thread ⑤Special specification
SBA 6 -φ6mm 27-φ27mm N -NBR 55  Nil -Suction cup only Nil-Standard type
11-φ11mm 33-φ33mm Ws-White silicone 50  M5M-M5×0.8male thread PK-With mark free plug
14-φ14mm 43-φ43mm HD-High temp/Mark free 60  G1M-G1/8 male thread
16-φ16mm 53-φ53mm NR-Naturalrubber 40  G2M-G1/4 male thread
20-φ20mm 63-φ63mm

M5F-M5×0.8 female thread
22-φ22mm 78-φ78mm

G1F-G1/8 female thread

25-φ25mm


G2F-G1/4 female thread
Selection
Model   Connection thread
  M-Male thread		 F-Female thread
SBA6□   SBA6□-M5M SBA6□-M5F
SBA11□   SBA11□-M5M     SBA11□-G1M SBA11□-M5F    SBA11□-G1F
SBA14□   SBA14□-M5M     SBA14□-G1M SBA14□-M5F    SBA14□-G1F
SBA16 □   SBA16□-M5M     SBA16□-G1M 5BA16□-M5F    SBA16□-G1F
SBA20□   SBA20□-M5M     SBA20□-G1M SBA20□-M5F    SBA20□-G1F
SBA22□   SBA22□-M5M     SBA22□-G1M SBA22□-M5F    SBA22□-G1F
SBA25□   SBA25□-M5M     SBA25□-G1M SBA25□-M5F    SBA25□-G1F
SBA27□   SBA27□-G2M SBA27□-G2F
SBA33□   SBA33□-G2M SBA33□-G2F
SBA43□   SBA43□-G2M SBA43□-G2F
SBA53□   SBA53□-G2M SBA53□-G2F
SBA63□   SBA63□-G2M SBA63□-G2F
SBA78□   SBA78□-G2M SBA78□-G2F
Selection-With mark free plug
  Model M-Male thread F-Female thread
  SBA11□-PK


 SBA11□-M5M-PK     SBA11□-G1M-PK SBA11□-M5F-PK    SBA11□-G1F-PK
SBA14□-PK

 SBA14□-M5M-PK     SBA14□-G1M-PK SBA14□-M5F-PK    SBA14□-G1F-PK
  SBA16□-PK SBA16□-M5M-PK     SBA16□-G1M-PK SBA16□-M5F-PK    SBA16□-G1F-PK
  SBA20□-PK SBA20□-M5M-PK     SBA20□-G1M-PK SBA20□-M5F-PK    SBA20□-G1F-PK
  SBA22□-PK SBA22□-M5M-PK     SBA22□-G1M-PK SBA22□-M5F-PK    SBA22□-G1F-PK
  SBA25□-PK SBA25□-M5M-PK     SBA25□-G1M-PK SBA25□-M5F-PK    SBA25□-G1F-PK
  SBA27□-PK SBA27□-G2M-PK SBA27□-G2F-PK
  SBA33□-PK SBA33□-G2M-PK SBA33□-G2F-PK
  SBA43□-PK

 SBA43□-G2M-PK SBA43□-G2F-PK
SBA53□-PK

 SBA53□-G2M-PK SBA53□-G2F-PK
Technical parameters
 Model Pull-out force
N		 Innervolume
        cm³		 Min.curved  radius
of  workpiece
mm		 Weight
g		 Recommended hose dia.
mm		  MPQ
 pcs
 SBA6 1.4  0.1  2  0.2  4  10
 SBA11 3.8  0.2  10  1.0  6  10
 SBA14 5.0  0.4  13  1.1  6  10
 SBA16 6.7  0.8  20  1.4  6  10
 SBA20 10.7  1.2  30  1.5  6  5
 SBA22 15.2  1.4  25  2.2  6  5
 SBA25 17.3  3.2  20  3.1  6  5
 SBA27 24.0  3.4  23  4.7  6  5
 SBA33
 39.6  4.8  40  7.2  6  5
SBA43 64.5  11.4  60  11.9  6  5
 SBA53
 95.0  26.0  75  20.2  8  1
SBA63 135.0  44.0  75  25.5  8  1
SBA78 218.0  76.0  70  52.6  8  1
◇ Note:Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces. Recommend the length of vacuum hose to be as short as possible, max 2mSBA Series 1.5 Bellows Suction Cup with High Temperature Resistance for Uneven Surface Handling 2
