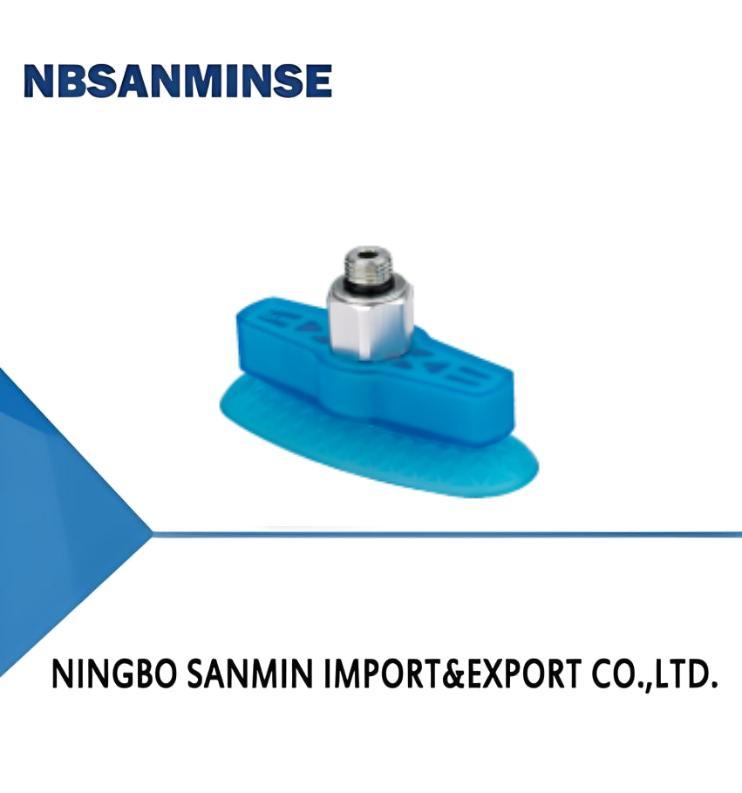

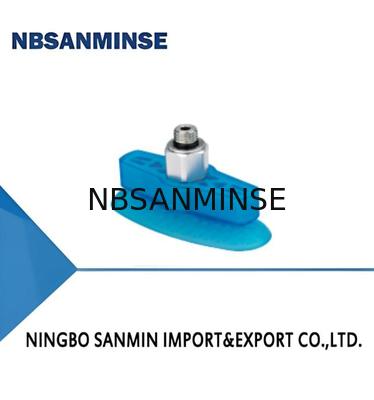

SOM Series Oval Flat Suction Cup Special for Long and Narrow Objects

Contact Now

SOM Series Oval Flat Suction Cup Special for Long and Narrow Objects

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SOM20×60U

Detail Information
Vertical Pull-out Force N:	61	Lateral Pull-out Force N:	44
Lateral Pull-out Force (Oily Surface)N:	44	Inner Volume Cm³:	5
Min Curve Radius Of Workpiece Mm:	10

Product Description

Features

◇ Large stroke and good flexibility

◇ PU material

◇ Internal large area pattern support structure

◇ Non-rotating structure

◇ Various sizes are available

Advantages

◇ Easy to fit the workpieces with different shapes of surfaces

◇ Long lifetime, excellent wearresistance, ozone resitance, oilresistance

◇ Effectively increase friction force between suction cups and workpieces

◇ The parts can be recycled

◇ The direction of suction cup can be accurately positioned according to

workpiece shape

◇ Suitable for workpieces with different sizes and shapes

Applications

◇ Handling of oval workpiece with curved surface

◇ Handling long and narrow or cylindrical workpieces

Structure

◇ Split structure design, wearing parts can be replaced separately

SOM 30×80 U -G2F

① ② ③ ④

Series

Material&Hardness

Connection thread

20×60

Nil -Suction cup only

30×80

G2F -G1/4 female thread

40×100

G3F -G3/8 female thread

G2M -G1/4 male thread

M10M-M10×1.5 male thread

M14M-M14×1.5 male thread

RA -Rectangular adapter

Selection

Model

Connection thread
G2M

SOM20×60U
SOM30×80U
SOM40×100U

SOM20×60U-G2M
SOM30×80U-G2M

SOM20×60U-M10M
SOM30×80U-M10M

SOM20×60U-M14M
SOM30×B0U-M14M

SOM20×60U-G2F
SOM30×B0U-G2F

SOM20×60U-RA

SOM30×B0U-RA

SOM40×100U-G2M

5OM40×100U-M10M

SOM40×100U-M14M

SOM40×100U-G3F

SOM40×100U-RA

Technical parameters

Model

Vertical
pull-out force
N

Lateral
pull-out force
N

Lateral
pull-out force
(oily surface)N

Inner
volume
cm³

Min curve radius
of workpiece
mm

Weight
g

Recommended
hose dia.
mm

MPQ
pcs

SOM20×60U
SOM30×80U
SOM40×100U

61
116
187

44
110
135

5
12
25

10
20
32

14
24.4
50.6

8
8
8

○ Note:Testing wacum level-60kRa,workplecewithsmoth and dlean surface.The dataof pul-utforce as above arefiguredout without consdeing safety factor
The data may bedifferent according to different workplece surfaces.
