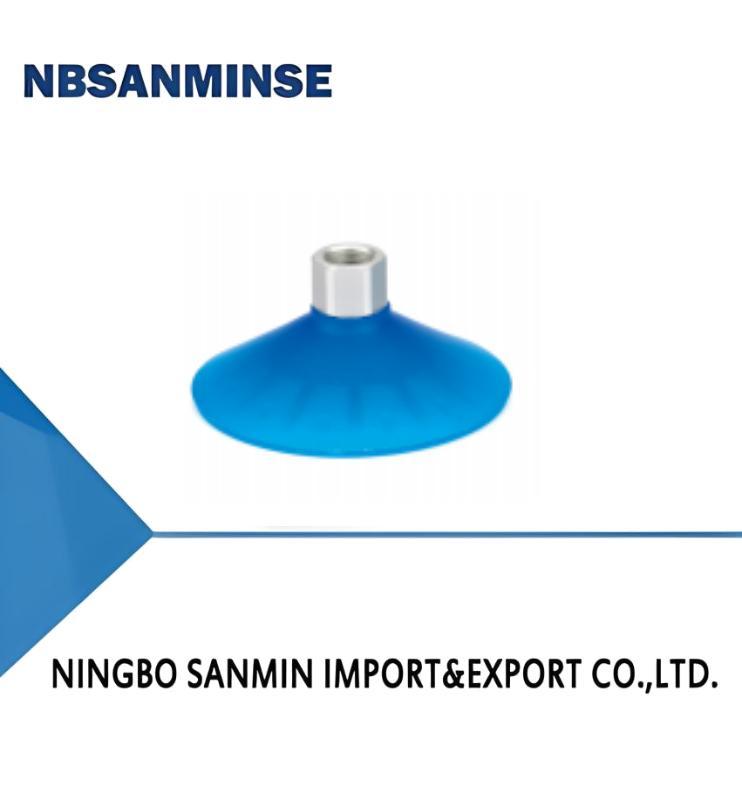

SDM Series Flat Suction Cup Special for Metal Sheet

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SDM100

Detail Information
Pull-out Force N:	375	Inner Volume Cm³:	56
Min.curve Radius Of Workpiece Mm:	160	Recommended Hose Dia. Mm:	8
Weight G:	62

Product Description

Features

◇ PU material

◇ Thicken the wall thickness, intermal reinforced rib structure design

Advantages

◇ Long lifetime, excellent wearresistance, ozone resitance, oilresistance

◇ Effectively prevent deformation of metal sheet during handling

Applications

◇ Handling metal sheet and aluminum plate without deformation

Structure

◇ Split structure design, wearing parts can be replaced separately

SDM 100 U -G3F
① ② ③ ④
Series SDM		Diameter			Material &Hardness			Connection thread
		100-中100mm			U-PU	70		Nil-Suction cuponly
								G2F-G1/4 female thread
								G3F-G3/8 female thread
Selection
Model			Connection thread G2F				G3F
SDM100U			SDM100U-G2F				SDM100U-G3F
Technical parameters
Model	Pull-out force N		Inner volume cm³	Min.curve radius of workpiece mm			Weight g	Recommended hose dia. mm	MPQ pcs
SDM100	375		56	160			62	8	1

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces.

Dimensions(mm)
