SFK Series Flat Suction Cup Special for Objects with Rough Surface
SFK Series Flat Suction Cup Special for Objects with Rough Surface
Contact Now

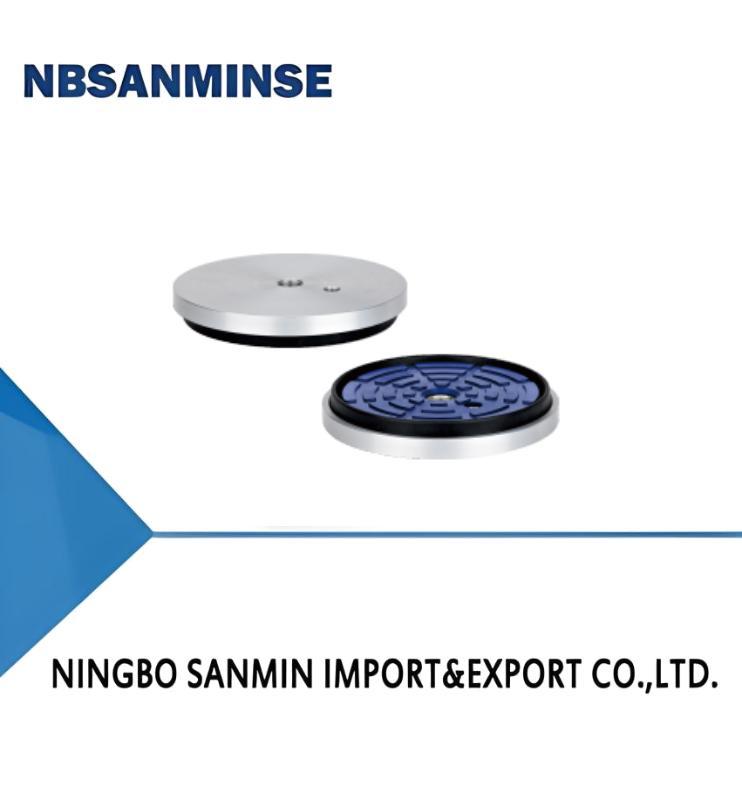

SFK Series Flat Suction Cup Special for Objects with Rough Surface

Minimum Order Quantity : 100PCS Packaging Details : Plastic bag
Delivery Time : 5-30days Supply Ability : 10000PCS
Place of Origin: CHINA Brand Name: NBSANMINSE
Model Number: SFK110E

Detail Information
Pull-out Force N: 480 Inner Volume Cm³: 70
Min.curve Radius Of Workpiece Mm: 300 Weight G: 465
Recommended Hose Dia. Mm: 10

Product Description

Features
◇ Sealing ring is made of flexible EPDM foam rubber
◇ Internal large area support structure
◇ Small inner volume
◇ Various sizes are available
Advantages
◇ Suitable for workpieces with rough or uneven surfaces
◇ Slipping resistance. Prevent thin workpiece from permanent deformation
◇ Short work cylcle
◇ Suitable for workpieces with different sizes and shapes
Applications
◇ Handling workpieces with uneven surfaces,such as embossed steel plate,
decorative glass, rough slate, wooden plate, etc.
◇ Touch valve is optional, which will close vacuum chamber when it detects that
suctioncupsdonot contact workpieces, in order to avoid vacuum leakage
SFK Series Flat Suction Cup Special for Objects with Rough Surface 0
Structure
◇ Split structure design, wearing parts can be replaced separately
◇ Separate functional port is equipped
◇ Note: The functional threaded hole is sealed with a plug when
delivered. Seal the thread with thread glue or raw tape
when connecting
SFK Series Flat Suction Cup Special for Objects with Rough Surface 1

SFK   110   E   -G4F   -V
  ①      ②   ③       ④      ⑤
Series Diameter Material &Hardness Connection thread ⑤Special specification
SFK 110-中110mm E-EPDM 20  Nil-Sealing ring only Nil-Standard

160-中160mm

G4F-G1/2 female thread V-With touch valve
200-φ200mm



250-φ250mm



Selection
Model   Connection thread
  F-Female   thread
SFK110E SFK110E-G4F SFK110E-G4F-V
SFK160E SFK160E-G4F SFK160E-G4F-V
SFK200E SFK200E-G4F SFK200E-G4F-V
SFK250E SFK250E-G4F SFK250E-G4F-V
Technical parameters
Model Pull-out force
N		 Inner volume
cm³		 Min.curve radius of workpiece
mm		 Weight
g		 Recommendedhose dia
mm		 MPQ
pcs
SFK110
SFK160		 480
1080		 70  300

465

935

 10  1
145  600  10  1
SFK200
SFK250

1800

2800

 225  1000  1445  12  1
360  1500  2225  12  1
◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces
