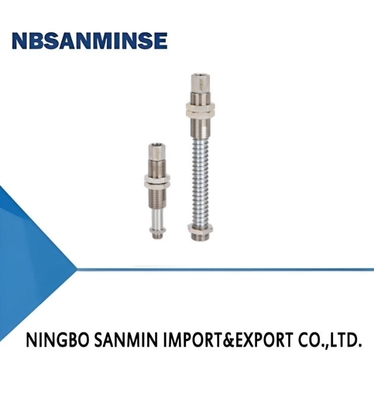

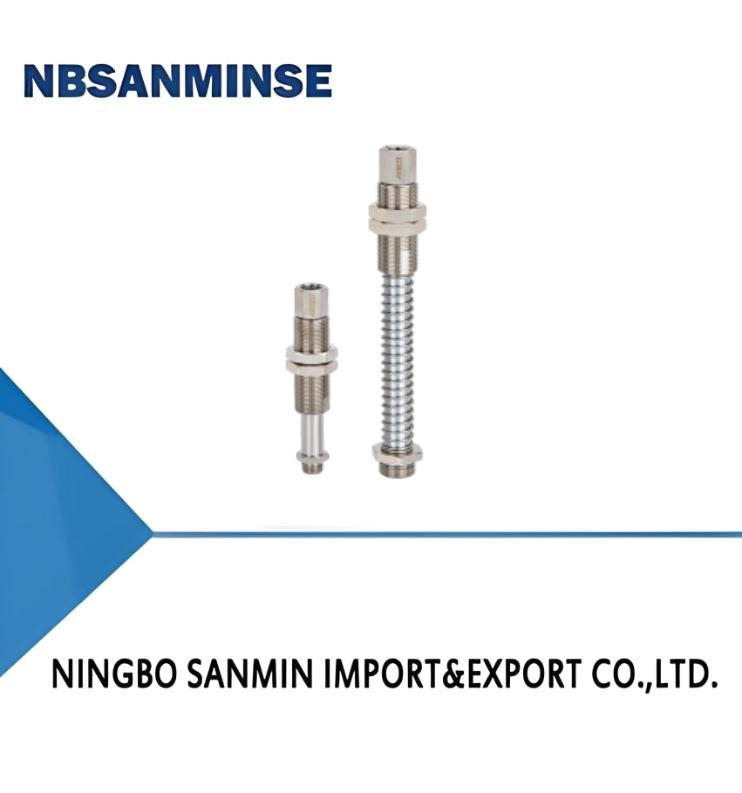

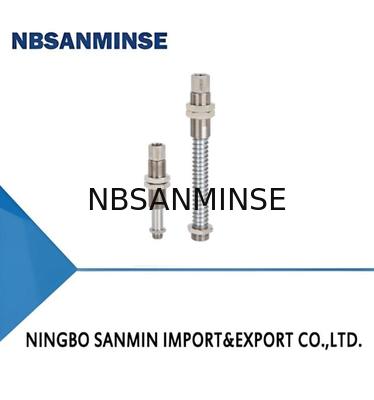

PSPT Series Universal Level Compensator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	PSPT-I10G1M-M16

Detail Information
Buffer Type:	I - Built-in Spring	Rotary Type:	Nil - Vertical Rotating
Suction Cup Connection:	G1F - G1/8 Female Thread	Mounting Thread:	M16 - M16×1
Heavy Load:	Nil - Standard

Product Description

Features

◇ Oilless, wear-resistant bushing is built in the guide sleeve

◇ Built-in buffer spring and external buffer spring

◇ Various buffer stroke specifications are available

◇ Light duty and heavy duty can be selected

Advantages

◇ Improve the lifetime of the products and reduce the noise

of the products

◇ Flexible contact with fragile workpieces, compensate the height

difference of workpieces

◇ Suitable for various working conditions

Applications

◇ Suitable for handling workpieces with height difference

◇ Handle parts sensitive to pressure with flexible contact

◇ All kinds of connection specifications, universal type, suitable for

various industries

Structure

◇ (1) Vacuum generator connection

◇ (2) Guide sleeve

◇ (3) Mounting nut

◇ (4) Spring

◇ (5) Suction cup connection

PSPT -I10 LM5 G1M -M16 -H

① ② ④ ⑤ ⑥ ⑦

①Series ②Buffer type

③Buffer stroke

④Rotary type

⑤Suction cup connection

⑥Mounting thread

⑦Heavy load

PSPT 1-Built-in spring

10 60

Nil-Verticalrotating

G1F-G1/8female thread

M16-M16×1

Nil-Standard

E-External spring

20 75

R-Vertical non-rotating

G2F-G1/4 female thread

M18-M18×1

H-Heavy load

30 90

LM5-Lateral rotating

G1M-G1/8 male thread

50 110

G2M-G1/4 male thread

G3M-G3/8 male thread

Selection

Model/Connection thread

G1M

LM5G1M

G1F

G2F

PSPT-I110G1M-M16
PSPT-120G1M-M16

PSPT-I10LM5G1M-M16
PSPT-120LM5G1M-M16

PSPT-I110G1F-M16

P5PT-110G2F-M18 P5PT-110G2F-M18-H

PSPT-120G1F-M16

P5PT-120G2F-M18 P5PT-120G2F-M18-H

PSPT-130G1M-M16
PSPT-150G1M-M16

PSPT-130LM5G1M-M16
PSPT-150LM5G1M-M16

PSPT-130G1F-M16

PSPT-130G2F-M18 PSPT-130G2F-M18-H

PSPT-150G1F-M16

P5PT-150G2F-M18 PSPT-150G2F-M18-H

Model/Connection thread
G2M

RG2M

RG3M

P5PT-I10G2M-M18

P5PT-E60G2M-M18

PSPT-I10G2M-M18-H

PSPT-I10RG2M-M18

PSPT-I10RG3M-M18

P5PT-120G2M-M18

P5PT-E75G2M-M18

PSPT-I20G2M-M18-H

PSPT-120RG2M-M18

PSPT-120RG3M-M18

P5PT-130G2M-M18

P5PT-E90G2M-M18

PSPT-I30G2M-M18-H

PSPT-130RG2M-M18

PSPT-130RG3M-M18

PSPT-150G2M-M18

PSPT-E110G2M-M18

PSPT-I50G2M-M18-H

PSPT-150RG2M-M18

PSPT-150RG3M-M18

Model/Connection thread

G3M

P5PT-I10G3M-M18

PSPT-E60G3M-M18

P5PT-110G3M-M18-H

P5PT-120G3M-M18

PSPT-E75G3M-M18

P5PT-120G3M-M18-H

P5PT-130G3M-M18

PSPT-E90G3M-M18

PSPT-130G3M-M18-H

P5PT-150G3M-M18

PSPT-E110G3M-M18

PSPT-150G3M-M18-H

◇ Note: It is suggested that the actual working compressed stroke of level compensator should not exceed 50% of its max. compressed stroke
