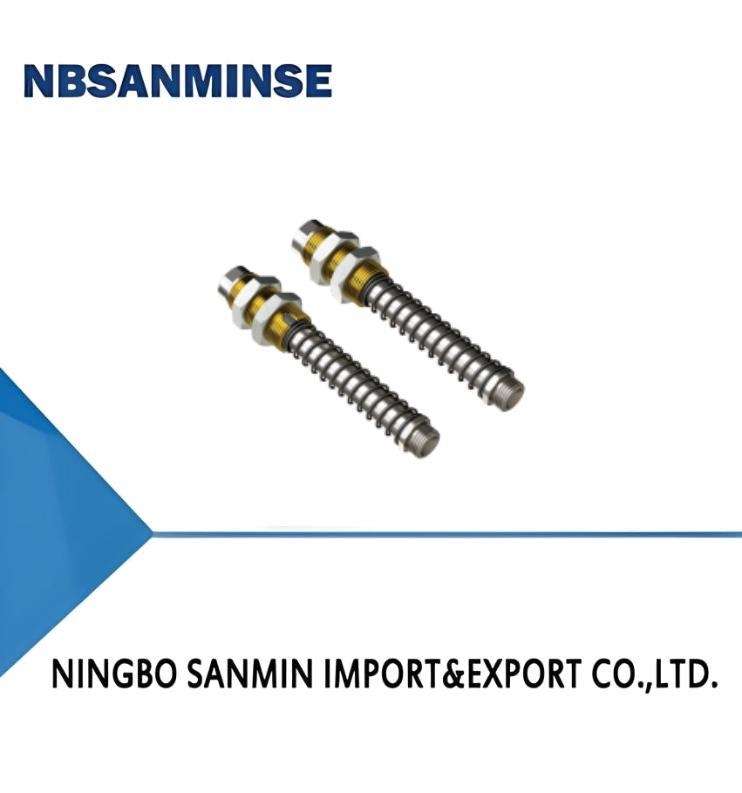

PSPH Series Heavy-duty Level Compensator

PSPH Series Heavy-duty Level Compensator
PSPH Series Heavy-duty Level Compensator
PSPH Series Heavy-duty Level Compensator PSPH Series Heavy-duty Level Compensator

Large Image :  PSPH Series Heavy-duty Level Compensator

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PSPH-E25G2M-M20
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

PSPH Series Heavy-duty Level Compensator

Description
Buffer Type: E - External Spring Buffer Stroke: 25
Rotary Type: Nil - Vertical Rotating Suction Cup: G2M - G1/4 Male Thread
Mounting Thread: M20 - M20×1.5
Highlight:

heavy-duty pneumatic level compensator

,

PSPH series solenoid valve

,

industrial pneumatic level control valve

Features
◇ Oilless, wear-resistant bushing is built in the guide sleeve
◇ Heavy duty external buffer spring
◇ Non-rotating type can be selected
◇ Various buffer stroke specifications are available
◇ Suitable for heavy duty working condition
Advantages
◇ Reduce product wear, improve the lifetime of the products and
reduce the noise
◇ Suitable for the workpieces with uneven surface and working
conditions which need height compensation
◇ Suitable for precise positioning of oval suction cup
◇ Suitable for various working conditions
Applications
◇ Suitable for handling workpieces with height difference
◇ Suitable for working condition which needs shock absorption
when handling objects
◇ Suitable for working condition that is with short working period
and fast handling
◇ Non-rotating level compensator is suitable for oval suction cup
◇ Especially suitable for handling in automotive industry
PSPH Series Heavy-duty Level Compensator 0
Structure
◇ (1) Vacuum generator connection
◇ (2) Guide sleeve
◇ (3) Mounting nut
◇ (4) Guide rod
◇ (5) Suction cup connection
PSPH Series Heavy-duty Level Compensator 1

PSPH - E 25 R G3M - M30
①②③④⑤⑥
①Series ②Buffer type ③Buffer stroke ④Rotary type ⑤Suction cup connection ⑥Mountingthread
PSPH E-Extemal spring 25  Nil-Vertical rotating G2M-G1/4male thread M20-M20×1.5


50  R-Verticalnon-rotating G3M-G3/8male thread M30-M30×1.5


75
G4M-G1/2male thread


90





Selection
Model/Connection thread
G2M RG2M G3M RG3M G4M RG4M
PSPH-E25G2M-M20 PSPH-E25RG2M-M20 PSPH-E25G3M-M30 PSPH-E25RG3M-M30 PSPH-E25G4M-M30 PSPH-E25RG4M-M30
PSPH-E50G2M-M20 PSPH-E50RG2M-M20 PSPH-E50G3M-M30 PSPH-E50RG3M-M30 PSPH-E50G4M-M30 PSPH-E50RG4M-M30
PSPH-E75G2M-M20
PSPH-E90G2M-M20		 P5PH-E75RG2M-M20
P5PH-E90RG2M-M20		 PSPH-E75G3M-M30 PSPH-E75RG3M-M30 PSPH-E75G4M-M30 PSPH-E75RG4M-M30
PSPH-E90G3M-M30 PSPH-E90RG3M-M30 PSPH-E90G4M-M30 PSPH-E90RG4M-M30

Technical parameters
Model Pretightening force(1)
N		 Elastic force(2)N Vertical load(3)
N		 Working temperature
℃		 Weight
   g
PSPH-E25(R)G2M-M20 7.5  15.8  2,400 0~80 148
PSPH-E50(R)G2M-M20 14.4  20  2,400 0~80 174
PSPH-E75(R)G2M-M20 6  16  2,400 0~80 198
PSPH-E90(R)G2M-M20 6  15.7  1,500 0~80 210
PSPH-E25(R)G3M-M30 19.4  73  4,800 0~80 408
PSPH-E50(R)G3M-M30 24.7  78.5  4,800 0~80 483
PSPH-E75(R)G3M-M30 39  79.6  4,800 0~80 561
PSPH-E90(R)G3M-M30 26.4  74.5  4,800 0~80 580
PSPH-E25(R)G4M-M30 19.4  73  4,800 0~80 408
PSPH-E50(R)G4M-M30 24.7  78.5  4,800 0~80 483
PSPH-E75R)G4M-M30 39  79.6  4,800 0~80 561
PSPH-E90(R)G4M-M30 26.4  74.5  4,800 0~80 580

◇ Note: 1. Pretightening force is spring elastic force when spring is compressed in nature state
2. Elastic force is spring elastic force when level compensator is compressed in 50% stroke, it is suggested that the actual working compressed
stroke of level compensator should not exceed 50% of its max. compressed stroke
3. Vertical load refers to the max. vertical tension that the level compensator can bear in static state
4. When the level compensator is installed horizontally, the workpiece will produce gravity perpendicular to the direction of the level compenasator,
If the gravity is larger than the horizontal load range, the spring may get stuck
 PSPH Series Heavy-duty Level Compensator 2
