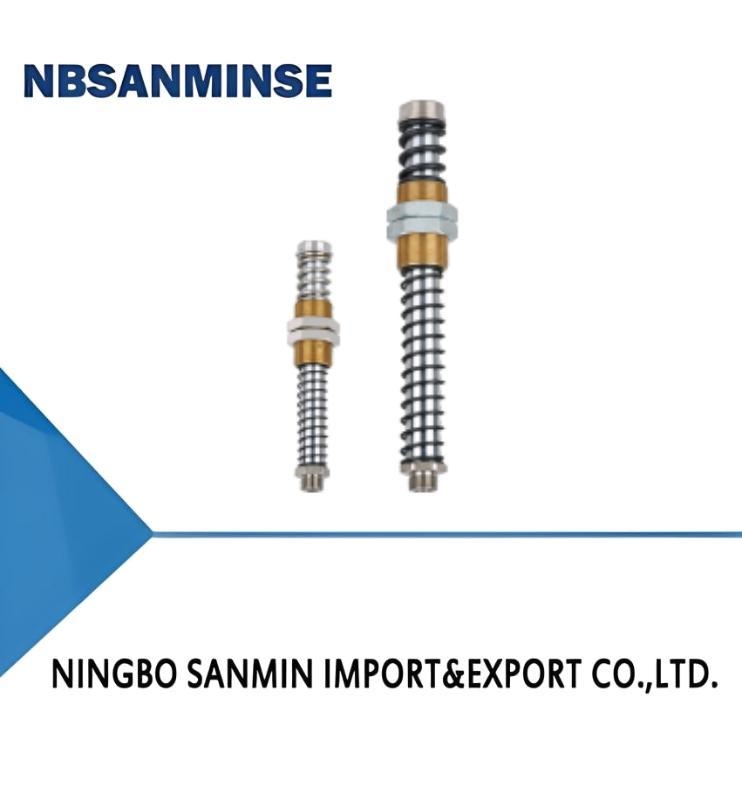

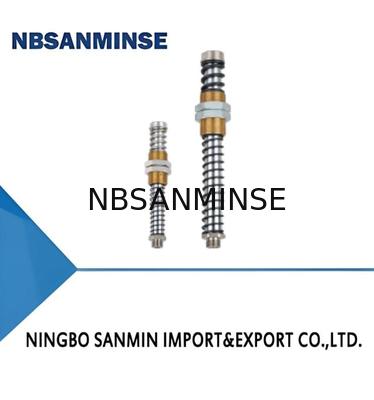

PSPD Series Double Springs Heavy-duty Level Compensator

Contact Now

PSPD Series Double Springs Heavy-duty Level Compensator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	PSPD-E25G2M-M20

Detail Information
Pretightening Force(1) N:	8.6	Elastic Force(2) N:	16.8
Vertical Load(3) N:	2400	Working Temperature ℃:	0~80
Weight G:	181

Product Description

Features

◇ Oilless, wear-resistant bushing is built in the guide sleeve

◇ With double buffer springs

◇ Non-rotating type can be selected

◇ Various buffer stroke specifications are available

Advantages

◇ Reduce product wear, improve the lifetime of the products

and reduce the noise

◇ Flexible contact with fragile workpieces, compensate the height

difference of workpieces

◇ Suitable for precise positioning of oval suction cup

◇ Suitable for various working conditions

Applications

◇ Suitable for handling heavy workpieces, such as steel plate

◇ Suitable for the working conditions that need flexible contact

and shock absorption when carrying objects, such as glass

◇ Suitable for use in harsh environment

◇ Non-rotating level compensator is suitable for oval suction cup

◇ Double spring buffer structure can prevent the impact on the

support rod end when handling the workpiece and turning it over

Structure

◇ (1) Vacuum generator connection

◇ (2) Spring

◇ (3) Mounting nut

◇ (4) Guide sleeve

◇ (5) Spring

◇ (6) Suction cup connection

PSPD -E 25 R G3M -M30

① ② ③ ④ ⑤ ⑥

①Series

②Buffer type

③Buffer stroke

④Rotary type

⑤Suction cup connection

⑥Mounting thread

E-External spring

Nil-Verticalrotating

G2M-G1/4 male thread

M20-M20×1.5

R-Vertical non-rotating

G3M-G3/8male thread

M30-M30×1.5

G4M-G1/2male thread

Selection

Model/Connection thread

PSPD-E25G2M-M20
PSPD-E50G2M-M20

PSPH-E25RG2M-M20
PSPH-E50RG2M-M20

PSPD-E25G3M-M30
PSPD-E50G3M-M30

PSPD-E25RG3M-M30
PSPD-E50RG3M-M30

PSPD-E25G4M-M30
PSPD-E50G4M-M30

PSPD-E25RG4M-M30
PSPD-E50RG4M-M30

PSPD-E90G3M-M30

PSPD-E90RG3M-M30

PSPD-E90G4M-M30

PSPD-E90RG4M-M30

Technical parameters

Model

Pretightening force(1)
N

Elastic force(2)
N

Vertical load(3)
N

Working temperature
℃

Weight
g

PSPD-E25(R)G2M-M20
PSPD-E50(R)G2M-M20
PSPD-E25(R)G3M-M30
PSPD-E50(R)G3M-M30

8.6
14.4

16.821

2,400

2,400

4,800

4,800

PSPD-E90(R)G3M-M30

4,800

PSPD-E25(R)G4M-M30
PSPD-E50(R)G4M-M30

4,800

4,800

PSPD-E90(R)G4M-M30

4,800

◇ Note: 1. Pretightening force is spring elastic force when spring is compressed in nature state

2. Elastic force is spring elastic force when level compensator is compressed in 50% stroke, it is suggested that the actual working compressed

stroke of level compensator does not exceed 50% of its max. compressed stroke

3. Vertical load refers to the max. vertical tension that the level compensator can bear in static state

4. When the level compensator is installed horizontally, the workpiece will produce gravity perpendicular to the direction of the level compenasator,

If the gravity is bigger than the horizontal load range, the spring may get stuck
