AZK Series Integrated Vacuum Generator

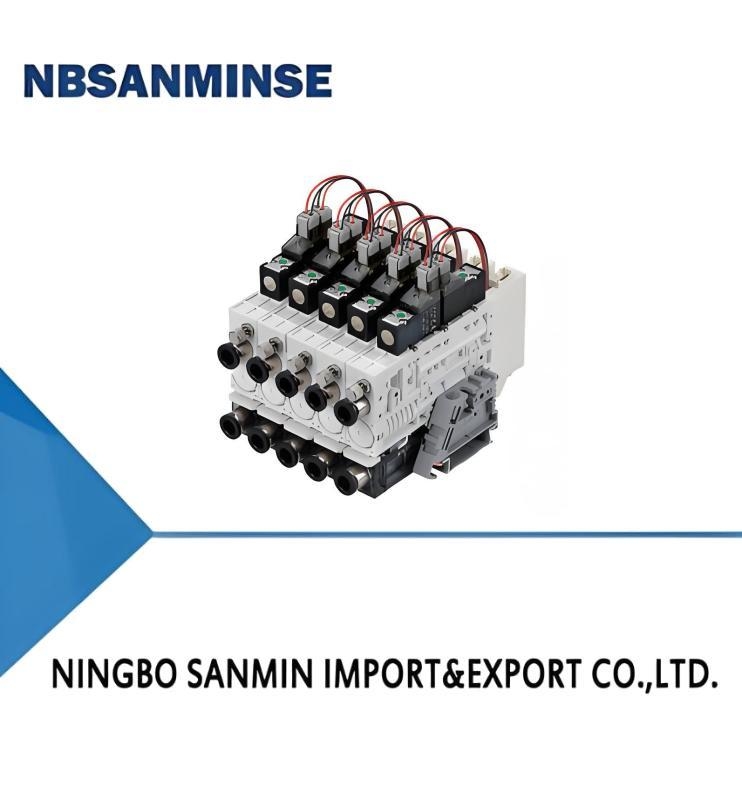

Large Image : AZK Series Integrated Vacuum Generator

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	AZK-S

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

AZK Series Integrated Vacuum Generator

Description

Max. Vacuum Level:	74 -kPa	Pressure:	6.0bar
Max. Vacuum Flow:	44NL/min	Specification:	S - Low Vacuum Level Type
Air Consumption:	26 NL/min	Warranty:	1 Year
Highlight:	AZK Series vacuum generator , Pneumatic solenoid vacuum generator , Integrated vacuum generator with warranty

Features

◇ Energy-efficient nozzle design

◇ With energy-saving control device

◇ With normally open vacuum supply valve

◇ Small size and light weight. The volume is 85cm³

◇ Transparent filter housing

◇ Single body with L bracket, DIN guide rail installation for integrated

body, centralized air supply

Advantages

◇ Vacuum flow increased by 50% and air consumption decreased by 30%

◇ Air consumption reduced by 90%(compared with non-energy saving type)

◇ Power outage or power off does not affect vacuumproducing and prevent

the workpiece from falling

◇ The device is compact and can be installed directly in the handling system

◇ The cleanliness is visible and easy to replace

◇ Simple installation, can be installed directly on the distribution box

Applications

◇ Integrated vacuum generator for handling airtight and slightly

porous workpieces

◇ Vacuum producing and monitoring in automation systems

◇ For robot handling applications and linear axes

◇ Pick and place applications with very short time

◇ Used for systems that require high dynamic handling of workpieces

and with limited space

◇ Usually used for handling small parts in fully automated systems

Structure - With vacuum source type

(Vacuum generator type)

◇ (1) Vacuum supply valve

◇ (2) Vacuum release valve

◇ (3) Vacuum pressure switch

◇ (4) Vacuum release adjusting valve

◇ (5) Air supply port

◇ (6) Silencer

◇ (7) Vacuum port

◇ (8) Vacuum filter

◇ (9) DIN guide rail installation

Structure - Without vacuum source type

(Vacuum pump type)

◇ (1) Vacuum supply valve

◇ (2) Vacuum release valve

◇ (3) Vacuum pressure switch

◇ (4) Vacuum release adjusting valve

◇ (5) Air supply port

◇ (6) Vacuum pump connector

◇ (7) Vacuum port

◇ (8) Vacuum filter

◇ (9) DIN guide rail installation

How to order

AZK-S×8-NO-N-D
① ② ③ ④ ⑤ ⑥
①Series	②Specification	③Stack	④Control valve specification
AZK	S-Low vacuum level type	Nil-Single body	Nil -Supply valve NC+release valve NC
	X-High vacuum level type	2	NO-Supply valve NO+release valve NC (lead wire length 300mm,power supply DC24V)
	P-Low air supply pressure and high vacuum level type	3
		...
	L-Large flowtype	8
	B-Vacuum pump type
⑤Vacuum switch		⑥Bracket
Nil-Without vacuum switch		Nil -Single air supply,without bracket
N -NPN,without energy saving function		F -Single air supply,with bracket(single body)
P -PNP,without energy saving function		D -Single air supply,guide rail installation(integrated)
NE-NPN,with energy saving funcion		DP-Centra lized air supply,guide railinstallation(integrated)
PE-PNP,with energy saving function

◇ Note: 1. Only NE/PE are with check valve for energy saving, others are without check valve

2. Energy saving function is not optional for L-large flow type and B-Vacuum pump type

3. Centralized air supply is not optional for B-Vacuum pump type

Technical parameters

Model	Air supply Rat pressure range bar	ed air supply pressure bar	Max. vacuum level -kPa	Max. vacuum flow NL/min	Max. break flow rate NL/min	Air consumption NL/min	Noise level dB(A)	Without pressure switch	Weight g With pressure switch	Recom Air supply port P	mended hose d Vacuum pump connector	ia. (mm) Vacuum portV
AZK-S	3.0~6.0	6.0	74	44	60	26	65~70	88.5	102.5	φ6	-	φ6
AZK-X	3.0~6.0	5.0	91	41	54	29	65~70	88.5	102.5	φ6	-	φ6
AZK-P	3.0~6.0	3.7	88	40	46	32	65~70	88.5	102.5	φ6	-	φ6
AZK-L	3.0~6.0	5.0	90	68	48	85	74~80	102	114	φ6	-	φ8
AZK-B	3.0~6.0	-	-	35	-	-	-	101.5	113.5	φ4	φ6	φ6

◇ Note: 35NL/min is the max. allowed passing flow of AZK-B, AZK-L external silencer

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	0	10	20	30	40	50	60	70	80	90	Max. vacuum level -kPa
AZK-S	6.0	26	44.0	38.0	32.0	22.0	12.0	10.0	8.5	4.0	-	-	74
AZK-X	5.0	29	41.0	36.0	26.0	13.7	11.0	9.3	6.6	4.6	2.7	2.0	91
AZK-P	3.7	32	40.0	35.0	25.2	17.7	10.9	8.0	5.6	4.2	1.5	1.0	88
AZK-L	5.0	85	68.0	62.0	42.0	26.0	20.6	16.2	9.0	7.2	7.2	5.0	90

Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	10	20	30	40	50	60	70	80	90	Max. vacuum level -kPa
AZK-S	6.0	26	0.01	0.19	0.50	1.02	1.72	2.60	3.88	-	-	74
AZK-X	5.0	29	0.02	0.14	0.47	0.96	1.56	2.50	3.87	6.00	-	91
AZK-P	3.7	32	0.05	0.30	0.71	1.26	1.95	2.97	4.49	6.95	-	88
AZK-L	5.0	85	0.06	0.16	0.33	0.60	0.95	1.43	2.14	3.03	6.16	90

Technical parameters - Pressure switch

Model	ZPDC-□	ZPDC-□-E
Pressure range	-100~100kPa	-100~100kPa
Setting pressure range	-105~105kPa	-105~105kPa
Proof pressure	500kPa	500kPa
General gas	Air,Non-corrosivenon flammable gas	Air,Non-corrosive,non flammable gas
Power supply voltage	24V DC±10%,RIPPLE(P-P)10%or less	24V Dc±10%,RIPPLE(P-P)10%or less
Current consumption	≤40mA(Without load)	≤40mA(Without load)
Switchoutput Output mode	2NPN or2PNPopen collectoroutput+1~5V linear analog output	1NPN or 1PNP open collector output
Max.load current	125mA	125mA
Max.supplyvoltage	30V DC(NPN)24V DC(PNP)	24V DC
Residualvoltage	≤1.5V	≤1.5V
Response time	≤2.5ms(chattering-proo funcion:25ms,100ms, 250ms,500ms,1000ms,1500ms selectable)	≤2.5ms(chattering-proof function:2.5ms,20ms, 100ms,500ms,1000ms,1999ms selectable)
Response time
Output short circuit protection	Yes	OUT switch:Yes;V-Sol/D-Sol:No
Repeatability	±0.2%F.S. ±1 digit
Display	3½LED7 segment display(Red)display(Sampling rate:5times/sec)
Indicator accuracy	±2%F.S. ±1 digit
Swtch ON indicator	OUT1:Green/OUT2:Red
Environmental resistance IP Grade	IP40
Ambient temp.range	Operation:0~50℃
Withstand voltage	1000VAC in 1minute(between case and lead wire)
Insulation resistance	50MΩ min. (at 500V DC,between case and lead wire)
Temperature characteristic	±2%F.S. (at temperature range of 0~50℃)
Lead wire	Oil proof PVC cable(0.15mm²)
