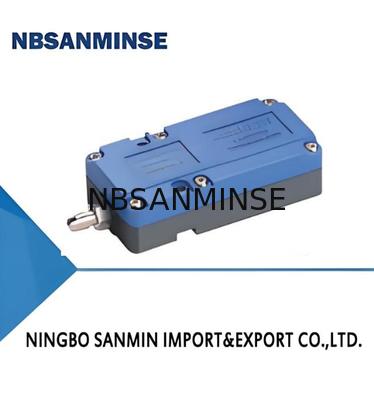

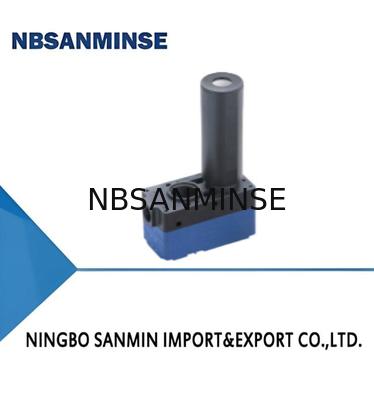

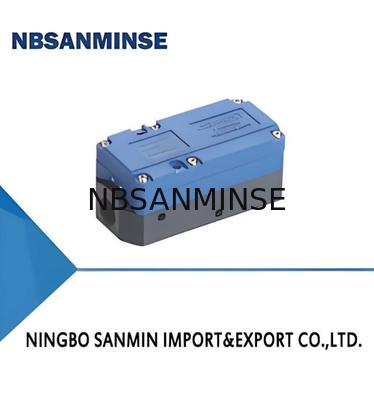

ABM/ABX Series Mini Vacuum Generator

ABM/ABX Series Mini Vacuum Generator
ABM/ABX Series Mini Vacuum Generator
ABM/ABX Series Mini Vacuum Generator ABM/ABX Series Mini Vacuum Generator ABM/ABX Series Mini Vacuum Generator ABM/ABX Series Mini Vacuum Generator

Large Image :  ABM/ABX Series Mini Vacuum Generator

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: ABM5,ABX5
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

ABM/ABX Series Mini Vacuum Generator

Description
Pressure: 4.5~6.0bar Max. Vacuum Level: 85kPa
Max. Vacuum Flow: 35~37 NL/min Air Consumption: 12~20 NL/min
Noise Level DB(A): 50~65 Warranty: 1 Year
Highlight:

ABM/ABX Series mini vacuum generator

,

pneumatic solenoid valve with warranty

,

mini vacuum generator for industrial use

Features
◇ Energy-efficient nozzle design
◇ Small size, light weight, can be connected with suction cup directly
◇ There are a variety of air port specifications(A,NA ,B,NB,C,NC)
◇ Built-in silencer and external silencer are optional
Advantages
◇ It can produce more vacuum flow in the condition of less air consumption
◇ For the occasions with limited installation space and weight
◇ Suitable port connection specifications canbe selected according to the
on-site requirements
◇ It can meet different requirements of vacuum flow in different working
conditions
◇ Reduce product noise greatly
Applications
◇ Universal vacuum generator, widely used in all kinds of vacuum systems
◇ Suitable for metal plate handling, packaging machinery, injection molding
and industrial robot technology field
ABM/ABX Series Mini Vacuum Generator 0
Structure
◇ (1) Air supply port
◇ (2) Vacuum port
◇ (3) Exhaust port
◇ (4) Vacuum filter
◇ (5) Silencer
ABM/ABX Series Mini Vacuum Generator 1
How to order
ABM    10    -B-F
①     ②     ③    ④
①Series Specification   Port connection   ④Sealing
ABM-Universaltype(-85kPa) 5    A NA   Nil-Default,NBR
ABX-High vacuum leveltype(-92kPa) 10    B NB   F -Fluorine rubber
20    C NC   E -EPDM
30    (Refer to table1)
Port connection table1
Port connection Air supply port Vacuum port Exhaust port Applicable vacuum generator
  A M5-φ6 G1/8 Internal silencer ABM5,10      ABX5,10
  NA M5-φ6 NPSF1/8 Internal silencer ABM5,10      ABX5,10
  B G1/8 G3/8 Internal silencer ABM5,10,20,30 ABX5,10,20,30
  NB NPSF1/8 NPSF3/8 Internal silencer ABM5,10,20,30 ABX5,10,20,30
  C G1/8 G3/8 External silencer ABM5,10,20,30 ABX5,10,20,30
  NC NPSF1/8 NPSF3/8 External silencer ABM5,10,20,30 ABX5,10,20,30
Selection - ABM
  Model/
  Specification		 A NA B NB C NC
  ABM5-□ ABM5-A ABM5-NA ABM5-B ABM5-NB ABM5-C ABM5-NC
  ABM10-□ ABM10-A ABM10-NA ABM10-B ABM10-NB ABM10-C ABM10-NC
  ABM20-□ - - ABM20-B ABM20-NB ABM20-C ABM20-NC
  ABM30-□ - - ABM30-B ABM30-NB ABM30-C ABM30-NC
Selection - ABX
  Model/
  Specification		 A NA B NB C NC
  ABX5-□ ABX5-A ABX5-NA ABX5-B ABX5-NB ABX5-C ABX5-NC
  ABX10-□ ABX10-A ABX10-NA ABX10-B ABX10-NB ABX10-C ABX10-NC
  ABX20-□ - - ABX20-B ABX20-NB ABX20-C ABX20-NC
  ABX30-□ - - ABX30-B ABX30-NB ABX30-C ABX30-NC
Technical parameters - ABM
Model Air supply
pressue range
bar		          Max.
vacuum  level
         -kPa		          Max.
  vacuum  flow
      NL/min		 Air
consumption
NL/min		 Noise
level
dB(A)		 Working
temperature
℃		 Recom
Air supply portP		 mended hos  dia
Vacuum  portV
ABM5 4.5~6.0 85  35~37 12~20 50~65 -20~80 φ6 φ8
ABM10 4.5~6.0 85  70~75 28~42 55~68 -20~80 φ6 φ10
ABM20 4.5~6.0 85  141~150 55~85 60~68 -20~80 φ8 φ12
ABM30 4.5~6.0 85  175~220 87~125 60~68 -20~80 φ10 φ12

Technical parameters - ABX
Model Air  supply
pressue  range
bar		 Max.
vacuum  level
-kPa		 Max.
vacuum flow
NL/min		           Air
consumption
        NL/min		 Noise
level
dB(A)		 Working
temperature
℃		  supply portP Recom
Airmended hose dia.
mm
Vacuum    portV
ABX5 4.5~6.0 92  30~32 18~22 50~65 -20~80 φ6 φ 8
ABX10 4.5~6.0 92  52~63 31~40 55~68 -20~80 φ6 φ10
ABX20 4.5~6.0 92  110~125 79~89 60~69 -20~80 φ8 φ12
ABX30 4.5~6.0 92  180~185 128~137 60~69 -20~80 φ10 φ12
◇ Note: Max. air supply pressure is 7.0 bar
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
     bar		 Air
consumption
NL/min		 0  10  20  30  40  50  60  70  80  Max.
vacuum level
-kPa
ABM5 4.5  12  35.0  20.5  12.0  10.5  8.5  6.5  4.5  2.5  0.8  85
ABM10 4.5  28  70.0  40.5  25.0  21.0  18.0  14.0  9.5  5.0  1.3  85
ABM20 4.5  55  141.0  77.0  45.0  39.5  29.5  25.0  17.5  12.0  3.0  85
ABM30 4.5  87  175.0  105.0  70.0  63.0  53.0  40.0  26.0  14.0  6.5  85
ABM5 6.0  20  37.0  25.0  15.5  12.0  8.0  6.0  4.0  2.7  0.6  85
ABM10 6.0  42  75.0  55.0  27.0  20.0  18.0  12.0  9.0  5.0  2.0  85
ABM20 6.0  85  150.0  100.0  55.0  38.0  30.0  24.0  16.0  11.0  3.2  85
ABM30 6.0  125  220.0  150.0  81.0  65.0  50.0  38.0  27.0  18.0  5.0  85
ABM/ABX Series Mini Vacuum Generator 2
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Airsupply
pressure
       bar		 Air
consumption
NL/min		 10  20  30  40  50  60  70  80  Max.
vacuum  level
-kPa
ABM5 4.5  12  0.11  0.42  0.95  1.66  2.50  3.65  5.25  7.89  85
ABM10 4.5  28  0.08  0.20  0.44  0.80  1.24  1.80  2.55  3.80  85
ABM20 4.5  55  0.04  0.12  0.23  0.41  0.65  0.93  1.33  2.03  85
ABM30 4.5  87  0.03  0.09  0.16  0.27  0.43  0.66  0.95  1.43  85
ABM5 6.0  20  0.13  0.51  1.15  1.93  2.87  4.09  5.84  10.46  85
ABM10 6.0  42  0.03  0.23  0.53  0.92  1.37  1.95  2.77  4.62  85
ABM20 6.0  85  0.02  0.15  0.28  0.46  0.71  1.02  1.48  2.55  85
ABM30 6.0  125  0.02  0.08  0.14  0.31  0.49  0.69  1.02  1.75  85
ABM/ABX Series Mini Vacuum Generator 3
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0  10  20  30  40  50  60  70  80  90  Max.
vacuum  level
-kPa
ABX5 4.5  18  30.0  13.0  7.5  7.0  6.0  5.0  4.0  3.2  1.8  0.4  92
ABX10 4.5  31  52.0  240  18.0  15.0  13.0  10.5  8.0  6.0  2.5  0.8  92
ABX20 4.5  79  100.0  46.0  34.0  30.5  25.0  21.0  17.0  10.5  5.0  1.6  92
ABX30 5.0  128  180.0  95.0  55.0  45.5  40.5  30.5  25.0  19.0  11.5  3.0  92
ABX5 6.0  22  32.0  20.0  8.5  7.5  6.0  5.0  4.0  3.0  1.5  0.15  92
ABX10 6.0  40  63.0  36.0  18.0  16.0  12.5  10.5  8.5  6.0  3.5  0.5  92
ABX20 6.0  89  125.0  73.0  35.0  30.0  25.0  22.0  18.0  12.0  7.0  0.9  92
ABX30 6.0  137  185.0  103.0  51.0  46.0  38.0  31.0  25.0  19.0  12.0  1.8  92
ABM/ABX Series Mini Vacuum Generator 4
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Airsupply
  pressure
       bar		 Air
consumption
NL/min		 10  20  30  40  50  60  70  80  90  Max.
vacuum level
-kPa
ABX5 4.5  18  0.13  0.60  1.26  2.30  3.20  4.50  6.15  8.50  15.50  92
ABX10 4.5  31  011  0.30  0.65  1.10  1.55  2.15  2.85  4.70  10.20  92
ABX20 4.5  79  0.09  0.16  0.32  0.55  0.80  1.50  1.80  2.70  5.00  92
ABX30 5.0  128  0.06  0.12  0.23  0.36  0.53  0.76  1.10  1.60  2.90  92
ABX5 6.0  22  015  0.71  1.52  2.54  3.72  5.12  6.95  9.70  21.00  92
ABX10 6.0  40  0.09  0.32  0.71  1.18  1.74  2.40  3.26  4.55  10.20  92
ABX20 6.0  89  0.05  0.15  0.31  0.52  0.77  1.08  1.54  2.15  4.92  92
ABX30 6.0  137  0.03  0.13  0.23  0.38  0.58  0.82  1.11  1.54  3.00  92
ABM/ABX Series Mini Vacuum Generator 5
Dimensions(mm)
ABM/ABX Series Mini Vacuum Generator 6
Dimensions(mm)
ABM/ABX Series Mini Vacuum Generator 7
Repair kits
ABM/ABX Series Mini Vacuum Generator 8
