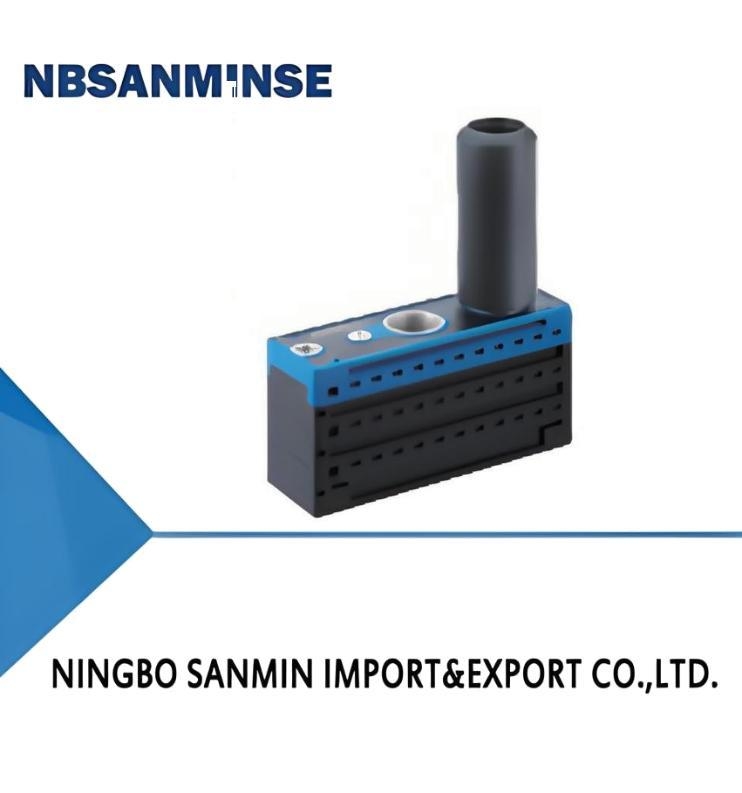

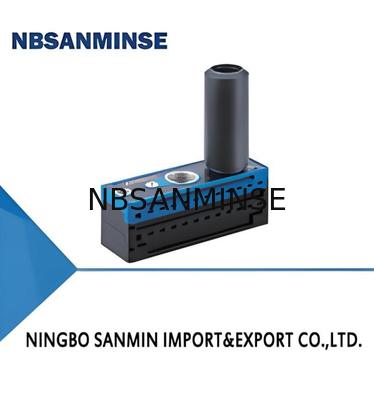

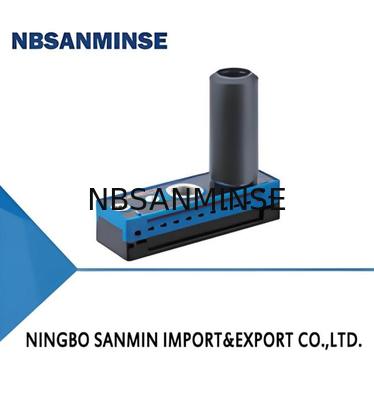

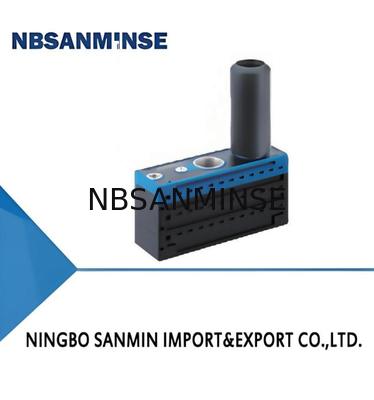

AMC Series Multistage Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	AMC25L

Detail Information
Non-return Valve:	V - With Non-returnvalve	Air Supply Pressure Bar:	6.0
Air Consumption NL/min:	130	Max. Vacuum Flow NL/min:	360
Max. Vacuum Level -kPa:	75

Product Description

Features

◇ High efficient and energy-saving multistage nozzle design

◇ Large vacuum flow

◇ Internal vacuum cartridges can be stacked assembly

◇ Various specifications of air supply port and vacuum port

◇ Energy-saving control device is optional

Advantages

◇ Quick evacuation in low vacuum level range, reduce cost and

shorten working cycle

◇ Producing large vacuum flow to handle porous workpieces fast and safely

◇ It can meet different requirements of vacuum flow in different working conditions

◇ It can be connected with different threads

◇ It is energy-saving when handling airtight workpieces

Applications

◇ The multistage vacuum generator is suitable for handling

cartons, packaging materials and porous materials

◇ It is used in the working condition requiring large vacuum

flow, fast evacuation speed and less air consumption

Structure

◇ (1) Main body

◇ (2) Vacuum gauge

◇ (3) Silencer

◇ (4) Air supply port

◇ (5) Vacuum port

◇ (6) L-type mounting bracket

◇ (7) ES energy saving system

AMC 25 L-AA -V-ES

① ② ③ ④ ⑤ ⑥

①Series

②Specification

③Performance

④Connection plate

⑤Non-return valve

⑥Control device

H-High vacuum level

Nil-Default,without

Nil-Default,without controldevice

(-95kPa)

non-return valve

ES-Energysavingsystem

L-Large vacuum flow

V -With non-return valve

(-75kPa)

onnection plate specifications

Connection plate

Air supply port('

)Vacuum port(²)

Exhaust port(³)

Applicable vacuum generator

AMC25,50

NPSF1/8

AMC25,50

AMC25,50,75,100

NPT1/4

NPT3/4

AMC25,50,75,100

AMC25,50,75,100,125,150

election-L(Large Vacuum flow type)

Model/
Specification

AMC□L-AA

AMC25L-AA

AMC50L-AA

AMC□L-AA-V

AMC25L-AA-V

AMC50L-AA-V

AMC□L-AA-V-ES

AMC25L-AA-V-ES

AMC50L-AA-V-ES

AMC□L-BA

AMC25L-BA

AMC50L-BA

AMC□L-BA-V

AMC25L-BA-V

AMC50L-BA-V

AMC□L-CA

AMC25L-CA

AMC50L-CA

AMC75L-CA

AMC100L-CA

AMC□L-CA-V

AMC25L-CA-V

AMC50L-CA-V

AMC75L-CA-V

AMC100L-CA-V

AMC□L-CA-V-ES

AMC75L-CA-V-ES

AMC100L-CA-V-ES

AMC□L-DB

AMC25L-DB

AMC50L-DB

AMC75L-DB

AMC100L-DB

AMC□L-DB-V

AMC25L-DB-V

AMC50L-DB-V

AMC75L-DB-V

AMC100L-DB-V

AMC□L-CC

AMC25L-CC

AMC50L-CC

AMC75L-CC

AMC100L-CC

AMC125L-CC

AMC150L-CC

AMC□L-CC-V

AMC25L-CC-V

AMC50L-CC-V

AMC75L-CC-V

AMC100L-CC-V

AMC125L-CC-V

AMC150L-CC-V

AMC□L-CC-V-ES

AMC25L-CC-V-ES

AMC50L-CC-V-ES

AMC75L-CC-V-ES

AMC100L-CC-V-ES

AMC125L-CC-V-ES

AMC150L-CC-V-ES

Selection-H(High vacuum level type)
Model/ Specification		25		50			75		100		125		150
AMC□H-AA		AMC25H-AA		AMC50H-AA
AMC□H-AA-V		AMC25H-AA-V		AMC50H-AA-V
AMC□H-AA-V-ES		AMC25H-AA-V-ES		AMC50H-AA-V-ES
AMC□H-BA		AMC25H-BA		AMC50H-BA
AMC□H-BA-V		AMC25H-BA-V		AMC50H-BA-V
AMC□H-CA		AMC25H-CA		AMC50H-CA			AMC75H-CA		AMC100H-CA
AMC□H-CA-V		AMC25H-CA-V		AMC50H-CA-V			AMC75H-CA-V		AMC100H-CA-V
AMC□H-CA-V-ES							AMC75H-CA-V-ES		AMC100H-CA-V-ES
AMC□H-DB		AMC25H-DB		AMC50H-DB			AMC75H-DB		AMC100H-DB
AMC□H-DB-V		AMC25H-DB-V		AMC50H-DB-V			AMC75H-DB-V		AMC100H-DB-V
AMC□H-CC		AMC25H-CC		AMC50H-CC			AMC75H-CC		AMC100H-CC		AMC125H-CC		AMC150H-CC
AMC□H-CC-V		AMC25H-CC-V		AMC50H-CC-V			AMC75H-CC-V		AMC100H-CC-V		AMC125H-CC-V		AMC150H-CC-V
AMC□H-CC-V-ES		AMC25H-CC-V-ES		AMC50H-CC-V-ES			AMC75H-CC-V-ES		AMC100H-CC-V-ES		AMC125H-CC-V-ES		AMC150H-CC-V-ES
Technical parameters
Model	Rated air supply pressure bar		Max. vacuum level kPa	Max. vacuum flow NL/min		Air consumption NL/min		Noise Level dB(A)	Working temperature ℃	Weight g	Vacuum chamber volume cm²	Re h Ai supy portP		commended ose diamm Vacum portV
AMC25L	6.0		75	360		130		63~68	-10-80	430	140	φ8		φ25
AMC50L	6.0		75	710		260		63~68	-10-80	435	140	φ8		φ25
AMC75L	6.0		75	1,050		390		63~68	-10-80	625	245	φ10		φ32
AMC100L	6.0		75	1,410		520		63~68	-10-80	630	245	φ10		φ32
AMC125L	6.0		75	1,500		650		63~68	-10-80	825	352	φ12		φ32
AMC150L	6.0		75	1,690		780		63~68	-10-80	830	352	φ12		φ32
AMC25H	5.0		95	354		135		63~68	-10~80	430	140	φ 8		φ25
AMC50H	5.0		95	700		270		63~68	-10~80	435	140	φ8		φ25
AMC75H	5.0		95	980		405		63~68	-10-80	625	245	φ10		φ32
AMC100H	5.0		95	1,380		540		63~68	-10-80	630	245	φ10		φ32
AMC125H	5.0		95	1,480		675		63~68	-10-80	825	352	φ12		φ32
AMC150H	5.0		95	1,650		810		63~68	-10-80	830	352	φ12		φ32
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar		Air consumption NL/min	0	10		20	30	40	50	60	70	Max. vacuum level -kPa
AMC25L	6.0		130	360	210		156	102	54	36	30	21	75
AMC50L	6.0		260	710	420		312	204	108	72	60	42	75
AMC75L	6.0		390	1,050	630		468	306	162	108	90	66	75
AMC100L	6.0		520	1,410	840		624	408	216	144	120	84	75
AMC125L	6.0		650	1,500	948		744	510	270	180	150	126	75
AMC150L	6.0		780	1,690	1,074		888	612	324	216	180	132	75

Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min	10	20	30	40	50	60	70	Max. vacuum level -kPa
AMC25L	6.0	130	0.020	0.050	0.100	0.180	0.330	0.530	0.800	75
AMC50L	6.0	260	0.010	0.025	0.050	0.090	0.170	0.270	0.400	75
AMC75L	6.0	390	0.007	0.017	0.033	0.060	0.110	0.180	0.270	75
AMC100L	6.0	520	0.005	0.013	0.025	0.045	0.083	0.130	0.200	75
AMC125L	6.0	650	0.005	0.012	0.022	0.036	0.066	0.110	0.160	75
AMC150L	6.0	780	0.004	0.010	0.018	0.030	0.055	0.090	0.130	75

Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min	0	10	20		30	40	50	60	70	80	90	Max. vacuumlevel -kPa
AMC25H	5.0	135	354	180	120		78	43.8	34.8	25.8	19.2	10.8	1.8	95
AMC50H	5.0	270	700	360	240		156	87.6	69.6	51.6	38.4	21.6	3.6	95
AMC75H	5.0	405	980	540	360		234	131.4	104.4	77.4	57.6	32.4	5.4	95
AMC100H	5.0	540	1,380	720	480		312	175.2	139.2	103.2	76.8	43.2	7.2	95
AMC125H	5.0	675	1,480	810	570		390	219.0	174.0	129.0	96.0	54.0	9.0	95
AMC150H	5.0	810	1,650	918	684		468	262.8	206.4	154.8	115.2	64.8	10.8	95
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min	10	20		30		40	50	60	70	80	90	Max. vacuum level -kPa
AMC25H	5.0	135	0.022	0.062		0.120		0.220	0.37	0.57	0.84	1.20	2.20	95
AMC5OH	5.0	270	0.011	0.031		0.060		0.110	0.19	0.29	0.42	0.60	1.10	95
AMC75H	5.0	405	0.007	0.021		0.040		0.070	0.12	0.19	0.28	0.40	0.73	95
AMC100H	5.0	540	0.006	0.016		0.030		0.055	0.09	0.14	0.21	0.30	0.55	95
AMC125H	5.0	675	0.005	0.014		0.026		0.044	0.07	0.11	0.17	0.24	0.44	95
AMC150H	5.0	810	0.005	0.012		0.022		0.040	0.06	0.10	0.14	0.20	0.37	95

Dimensions(mm)
