AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow

AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow

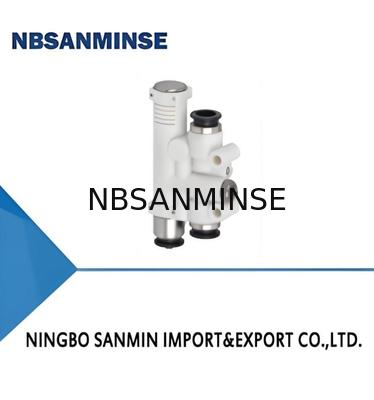

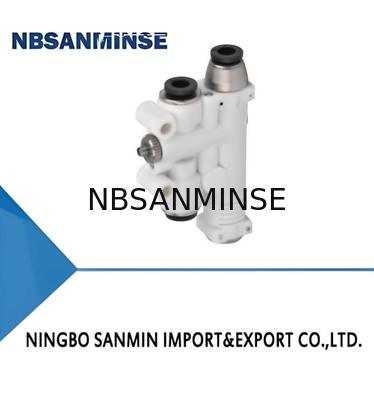

Large Image :  AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: AZR05H
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow

Description
Pressure: 5.0 Bar Max. Vacuum Level: 88-kPa
Max. Vacuum Flow: 7.0 NL/min Max. Break Flow Rate: 40NL/min
Air Consumption: 11NL/min Warranty: 1 Year
Highlight:

AZR mini vacuum generator

,

pneumatic solenoid valve with warranty

,

compact vacuum generator solenoid

Features
◇ Small size, light weight
◇ High vacuum level type and large vacuum flow type are optional
◇ The generator has vacuum breaking function itself
◇ Separate vacuum filter and mounting bracket are optional
Advantages
◇ For the occasions with limited installation space and weight
◇ It can meet different requirements of vacuum flow in different working
conditions
◇ There is noneedfor external control device, can quickly releasethe product
◇ Customers can choose freely according to the actual working conditions
Applications
◇ Suitable for handling electronic components and other small workpieces
◇ Suitable for working occasions where quick picking andquick release are
required
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 0
Structure
◇ (1) Release port
◇ (2) Vacuum release regulating valve
◇ (3) Lock nut
◇ (4) Vacuum detecting port
◇ (5) Vacuum port
◇ (6) Vacuum filter
◇ (7) Air supply port
◇ (8) Exhaust por
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 1
AZR 07 H - J - V - F
①  ②  ③  ④  ⑤  ⑥
①Series ②Nozzle Diameter    ③Specification ④Exhaust way ⑤Specal spedification ⑥Vacuum filter
AZR 05-φ0.5mm H-High vacuumleveltype Nil-Directeshaust Nil-Standard type Nil-Standard type
07-φ0.7mm L-Large vacuum flow type J-Centralizedexhaust V-Vacuumdetecting port F -With vacuum filter
Selection
ModeV
Nozzle  Diameter		 05  07
AZRO□□ AZRD5H          AZR05L AZRD7H          AZRO7L
AZR□□-J AZRD5H-J        AZR05L-J AZRD7H-J       AZR07L-
AZR□□--F AZRD5H-J-F      AZR05L-J-F AZRD7H-J-F     AZR07L--F
AZRO□-J-V AZRD5H-J-V      AZR05L-J-V AZRD7H-J-V     AZR07L-V
AZRO□-J-V-F AZRD5H-J-V-F    AZRD5L-J-V-F AZRD7H-J-V-F    AZR07L-J-V-F
AZR□□-V AZRD5H-V        AZR05L-V AZRD7H-V        AZRO7L-V
AZR□□-V-F AZRD5H-V-F      AZR05L-V-F AZRD7H-V-F      AZR07L-V-F
AZR□□-F AZRD5H-F        AZRO5L-F AZRD7H-F        AZR07L-F
Technical  parameters
Model Rated air
supply pressure
bar		 Max.
vacuum Level
kPa		 Max
vacuum  fow
NL/min		 Max break
flow rate
NL/min		 Air
consumption
NL/min		 Noise
level
dB(A)		 Weight
g		 Airsupply portP Recommended
hose  dia.mm
Vacuum portV
AZR05H 5.0  88 7.0  40  11  80  19  φ4 φ4
AZR07H 5.0  88 12.5  40  22  80  20  φ6 φ6
AZR05L 5.0  58 12.0  40  11  70  19  φ4 φ4
AZR07L 5.0  58 20.0  40  22  70  20  φ6 φ6
◎ Nobe:Mau.airsupplypresure is 6D bar
Vacuum  flow(NL/min)at  different  vacuum  levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0  10  20  30  40  50  60  70  80  Max.
vacuum  Level
-kPa
AZR05H 5.0  11  8.0  7.3  6.3  5.2  4.2  3.4  2.2  1.4  1.0  88
AZR07H 5.0  22  12.5  11.5  9.7  7.4  6.5  5.2  4.1  3.0  1.7  88
AZR05L 5.0  11  12.5  10.5  8.7  6.9  5.0  2.9  1.0  - - 58
AZR07L 5.0  22  22.0  19.1  14.5  9.4  7.2  4.3  1.0  - - 58
Vacuum flow(NL/min) at different vacuum levels(-kPa)
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 2
Evacuation time(s/L) to reach different vacuum levels(-kPa)
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 3
Air circuit schematic diagram
Vacuum release principle and attentions:
◇ 1. Close solenoid valve and stop air supply, open the release valve. The
residual positive pressure air in the air circuit between check valve
and release port flows into the vacuum circuit to release vacuum
◇ 2. Change the tube length between the check valve and release port
to adjust the residual positive pressure air volume. In this way, the
vacuum releasing time can be adjusted
◇ 3. The vacuum releasing flow of this way is small
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 4
Air circuit schematic diagram
Vacuum release principle and attentions:
◇ 1. Close solenoid valve and stop air supply, open the release
valve, and the positive pressure air flows directly into the
vacuum circuit to release the vacuum
◇ 2. Can adjust the vacuum releasing time through controlling
the air supply time of solenoid valve
◇ 3. Adjust the air releasing pressure through the reducing valve
to avoid excessive pressure blowing away the workpiece
◇ 4. The air releasing pressure must be lower than air supply
pressure of vacuum generator
◇ 5. The releasing flow and pressure can be adjusted freely as
required
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 5
Dimensions(mm)
AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 6AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 7AZR Series Mini Vacuum Generator with 5.0 Bar Pressure 88-kPa Vacuum Level and 7.0 NL/min Flow 8
