ALH Series Mini Vacuum Generator with 90-kPa Vacuum Level 9.5 NL/min Flow and 20 NL/min Air Consumption

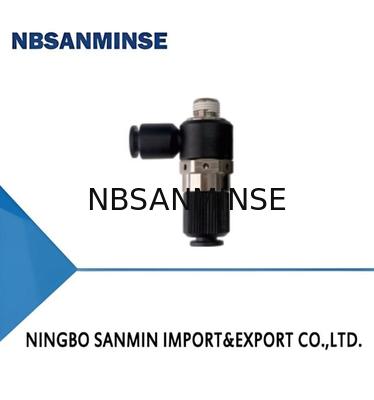

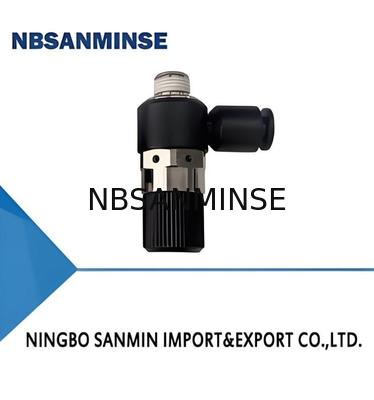

Large Image : ALH Series Mini Vacuum Generator with 90-kPa Vacuum Level 9.5 NL/min Flow and 20 NL/min Air Consumption

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	ALH07E-A6

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

ALH Series Mini Vacuum Generator with 90-kPa Vacuum Level 9.5 NL/min Flow and 20 NL/min Air Consumption

Description

Pressure:	3.5 Bar	Pressure Range Bar:	3.0~6.0
Max. Vacuum Level:	90-kPa	Max. Vacuum Flow:	9.5 NL/min
Air Consumption:	20 NL/min	Warranty:	1 Year
Highlight:	ALH Series mini vacuum generator , pneumatic solenoid valve with warranty , compact vacuum generator for industrial use

Features

◇ Small size, light weight.

◇ Standard quick connector, connection, fast and convenient

Advantage

◇ Standard quick connector, connection, fast and convenient

◇ Centralized exhaust option available

◇ Low noise leve

Application

◇ Suitable for handling electronic components and other small workpieces

Structure

◇(1)Air supply port

◇(2)Vacuum port

◇(3)Exhaust port

◇(4)Exhaust port

ALH 07 E - A6 - J ① ② ③ ④ ⑤
①Series	②Nozzle diameter					③Specification				④Vacuum port specifications				⑤Exhaust
ALH	07-Nozzle diameter 0.7mm					E-Low air supply pressure type				A6-φ6 quick connector				Nil-Default direct exhaust J -Centralized exhaust
Technical parameters
Model		Rated air supply pressure bar		Air supply pressure range bar				Max. vacuum level -kPa		Max. vacuum flow NL/min		Air consumption NL/min		Noise level dB(A)		Weight g
ALH07E-A6		3.5		3.0~6.0				90		9.5		20		70		37
ALH07E-A6-J		3.5		3.0~6.0				90		9.5		20		-		40
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model		0	10		20		30		40	50	60		70	80	Max. vacuum level -kPa
ALH07E		0	8.3		8.9		9.2		9.3	9.4	9.5		9.7	9.7	90
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model		0	10		20		30		40	50	60		70	80	Max. vacuum level -kPa
ALH07E		0	0.7		1.5		2.5		3.8	5.3	7		9.5	15	90
