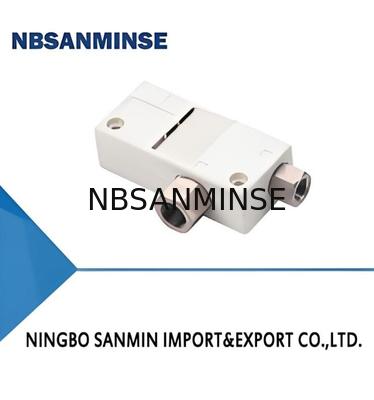

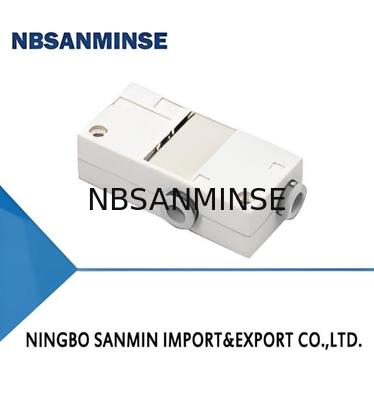

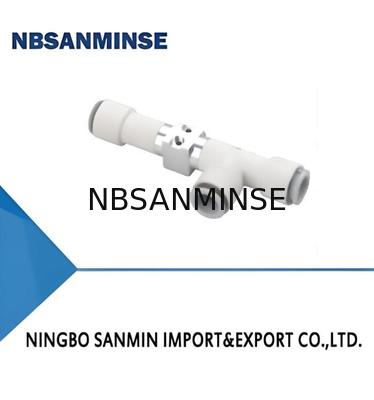

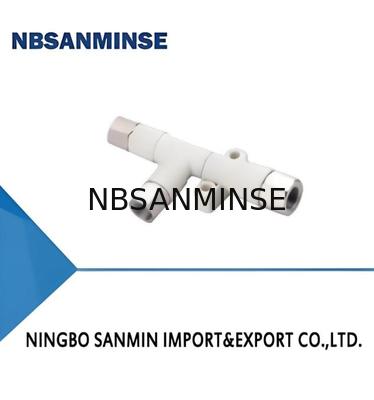

AZH Series Basic Vacuum Generator

AZH Series Basic Vacuum Generator
AZH Series Basic Vacuum Generator
AZH Series Basic Vacuum Generator AZH Series Basic Vacuum Generator AZH Series Basic Vacuum Generator AZH Series Basic Vacuum Generator AZH Series Basic Vacuum Generator

Large Image :  AZH Series Basic Vacuum Generator

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: AZH05D
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

AZH Series Basic Vacuum Generator

Description
Shape: B - Box Type Pressure: 4.5 Bar
Air Consumption: 13.5 NL/min Noise Level DB(A): 75
Warranty: 1 Year
Highlight:

AZH vacuum generator solenoid valve

,

basic pneumatic vacuum generator

,

compact vacuum generator with warranty

Features
◇ Single stage vacuum generator with plastic housing
◇ High vacuum level type and large vacuum flow type for option
◇ Body ported type and box type for option
◇ Thread connection or one-touch fitting for port connection
Advantages
◇ Small size,light weight and cost-effective
◇ Suitable for various occasions
◇ Box type with built-in silencer to reduce noise
◇ Thread connection and one-touch fitting for option
Applications
◇ Widely used in all kinds of vacuum systems
◇ Suitable for various handling operations such as automotive,
metal sheet, wood, food and packaging, etc.
◇ High vacuum type and large flow type for different occasions
AZH Series Basic Vacuum Generator 0
Structure
◇ (1) Exhaust port
◇ (2) Air supply port
◇ (3) Vacuum port
◇ (4) Mounting hole
AZH Series Basic Vacuum Generator 1
AZH Series Basic Vacuum Generator 2
Selection-Box type
Model/Shape
BS		 BL
AZH05BS-06-06 AZH05BS-01-01 AZH05BL-06-06    AZH05BL-01-01
AZH07BS-06-06 AZH07BS-01-01 AZH07BL-06-06    AZH07BL-01-01
AZH10BS-06-06 AZH10BS-01-01 AZH10BL-06-06    AZH10BL-01-01
AZH13BS-08-10 AZH13BS-01-02 AZH13BL-08-10    AZH13BL-01-02
Selection-Body ported type
Model/Shape
DS		 DL
AZH05DS-06-06-06                     AZH05DS-01-01-01 AZH05DL-06-06-06                                    AZH05DL-01-01-01
AZH07DS-06-06-06                     AZH07DS-01-01-01 AZH07DL-06-06-06                                    AZH07DL-01-01-01
AZH10DS-06-06-08                    AZH10DS-01-01-01 AZH10DL-06-06-08                                    AZH10DL-01-01-01
AZH13DS-08-10-10                    AZH13DS-01-02-02 AZH13DL-08-10-10                                    AZH13DL-01-02-02
AZH15DS-10-12-12                    AZH15DS-02-03-03 AZH15DL-10-12-12                                     AZH15DL-02-03-03
AZH18DS-12-12-12                    AZH18DS-03-03-03 AZH18DL-12-12-12                                     AZH18DL-03-03-03
AZH20DS-12-16-16                     AZH20DS-03-04-04 AZH20DL-12-16-16                                     AZH20DL-03-04-04
Technical parameters
Model     Rated air
supplypressure
            bar		 Max.vacuu
    5		 m level
-kPa
      L		 Max.vac
5		 uum flow
NL/min
         L		 Air
consumption
NL/min		 Noise
level
dB(A)		 Working
temperature
℃		 Weight
g		 Recommen
Air supply
   ports		 dedhose
Vacuum
portv		 dia. (mm)
Exhaust
portE
AZH05B 4.5    88  48  5  9  13.5  68  5~50 28  φ6 φ6  -
AZH07B 4.5    88  48  12  22  23.5  68  5~50 28  φ6 φ6  -
AZH10B 4.5    88  48  24  34  46.0  72  5~50 33  φ6 φ6 -
AZH13B 4.5    88  48  40  75  78.0  72  5~50 66  φB φ10  -
Technical parameters
Model
   Ratedair
supply pressure
                          bar

Max.Vacuum level
  -kPa
Max.vacuum flow
NL/min
       Air
consumption
    NL/min
Noise
level
dB(A)
Working
temperature
         ℃
Weight
g
Recommended hose  dia. (mm)
S             L
S		       L
Airsupply
  port S		 Vacuum
port V		 Exhaust
port E
AZH05D 4.5  88  48  7.5  9  13.5  75  5~50 11  φ6 φ6 φ6
AZH07D 4.5  88  48  12  22  23.5  75  5~50 12  φ6 φ6 φ6
AZH10D 4.5  88  48  24  34  46.0  68  5~50 16  φ6 φ6 φ8
AZH13D 4.5  88  48  40  75  78.0  68  5~50 27  φ8 φ10 φ10
AZH15D 4.5  88  53  60  80  97.0  72  5~50 43  φ10 φ12 φ12
AZH18D 4.5  88  53  70  110  150.0  72  5~50 55  φ12 φ12 φ12
AZH20D 4.5  88  53  85  140  185.0  75  5~50 95  φ12 φ16 φ16
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0  10  20  30  40  50  60  70  80  Max.
vacuum  level
-kPa
   AZH05S 4.5  13.5  5.0  4.5   4.1
 3.8
 3.3
 2.3
 1.6  0.9  0.3  88
   AZH07S 4.5  23.5  12.0  11.0  10.0 9.0 8.0 7.0 5.5  2.1  0.8  88
   AZH10S 4.5  46.0  24.0  23.0  20.5  17.5  13.0  11.5  9.5  7.0  2.5  88
   AZH13S 4.5  78.0  40.0  35.0  32.5  28.0  23.0  19.5  13.0  9.0  4.5  88
   AZH15S 4.5  97.0  60.0  52.5  45.5  38.0  28.5  20.5  15.5  11.5  5.0  88
   AZH18S 4.5  150.0  70.0  62.0  52.0  45.0  38.0  26.0  22.0  16.5  8.5  88
   AZH205 4.5  185.0  85.0  76.0  67.0  58.0  47.5  38.0  33.5  19.0  12.0  88
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 10  20  30  40  50  60  70  Max.
vacuum level
-kPa
AZH05S 4.5  13.5  0.89  1.70  3.20  5.00  7.80  12.00  19.00  88
AZH07S 4.5  23.5  0.37  1.00  1.90  3.00  5.40  6.70  15.00  88
AZH10S 4.5  46.0  0.25  0.60  1.25  2.00  2.90  4.60  7.30  88
AZH13S 4.5  78.0  0.10  0.27  0.53  1.00  1.75  4.20  7.30  88
AZH15S 4.5  97.0  0.04  0.21  0.35  0.63  1.23  4.10  6.50  88
AZH18S 4.5  150.0  0.02  0.15  0.29  0.46  0.78  1.38  3.51  88
AZH20S 4.5  185.0  0.02  0.12  0.21  0.34  0.55  0.85  1.58  88
AZH Series Basic Vacuum Generator 3
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0  10  20  30  40  45  Max.
vacuum  level
-kPa
AZH05L 4.5  13.5  9.0  8.0  7.0  6.0  3.0  1.9  48
AZH07L 4.5  23.5  22.0  21.0  20.5  15.5  10.5  6.8  48
AZH10L 4.5  46.0  34.0  32.0  26.0  19.0  12.0  8.0  48
AZH13L 4.5  78.0  75.0  72.0  65.0  43.0  19.0  9.0  48
AZH15L 4.5  9Z.0 80.0  72.0  60.0  45.0  36.5  16.0  53
AZH18L 4.5  150.0  110.0  105.0  95.0  80.0  55.0  30.0  53
AZH20L
 4.5 185.0 140.0 130.0 120.0 100.0 80.0 62.0 53
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 10  20  30  40  45  Max.
vacuum  level
-kPa
  AZH05L 4.5  13.5  0.49  1.50  2.90  5.10  7.20  48
  AZH07L 4.5  23.5  0.28  0.75  1.50  2.50  3.50  48
  AZH10L 4.5  46.0  0.14  0.40  0.81  1.40  1.80  48
  AZH13L 4.5  78.0  0.04  0.12  0.24  0.62  2.40  48
  AZH15L 4.5  97.0  0.03  0.15  0.23  0.40  0.92  53
  AZH18L 4.5  150.0  0.02  0.10  0.18  0.32  0.67  53
  AZH20L 4.5  185.0  0.01  0.08  0.14  0.20  0.30  53
Technical parameters
Dimensions(mm)
AZH Series Basic Vacuum Generator 4AZH Series Basic Vacuum Generator 5
ModeVSize A B C D E| F G H L K J
AZH05DS-06-06-06 58.5  34.0  14.2  17.0  6  21.0  3.2  24.0  6  22.0  6
AZH07DS-06-06-06 61.0  34.0  14.2  17.0  6  22.0  3.2  24.0  6  22.0  6
AZH10DS-06-06-08 66.0  37.0  17.2  20.0  6  24.5  4.2  26.0  8  230  6
AZH10DL-06-06-08 70.0  37.0  17.2  20.0  6  24.5  4.2  26.0  8  23.0  6
AZH13DS-08-10-10 74.0  42.5  20.0  22.0  8  27.0  4.2  28.0  10  27.5  10
AZH13DL-08-10-10 79.5  42.5  20.0  22.0  8  27.0  4.2  28.0  10  27.5  10
AZH15DS-10-12-12 93.3  47.0  22.5  27.0  10  32.8  4.2  31.5  12  29.5  12
AZH18DS-12-12-12 114.0  41.0  21.0  10.0  12  50.0  3.5  35.5  12  30.5  12
AZH20DS-12-16-16 124.6  46.0  27.0  12.0  12  54.3  3.5  38.5  16  32.7  16
AZH-D Body portedtype(One-touch fitting)
ModeVSize A B C D E| F G H L K   J
AZH05DS-01-01-01 73.5  41.5  14.2  17.0  Rc1/8 28.5  3.2  31.5  Rc1/8 29.5  Rc1/8
AZH07DS-01-01-01 76.0  41.5  14.2  17.0  Rc1/8 29.5  3.2  31.5  Rc1/8 29.5  Rc1/8
AZH10DS-01-01-01 82.0  44.5  17.2  20.0  Rc1/8 33.0  4.2  33.5  Rc1/8 30.5  Rc1/8
AZH10DS-01-01-01 86.0  44.5  17.2  20.0  Rc1/8 33.0  4.2  33.5  Rc1/8 30.5  Rc1/8
AZH13DS-01-02-02 94.5  54.0  20.0  22.0  Rc1/8 38.5  4.2  36.5  Rc1/4 39.0  Rc1/4
AZH13DL-01-02-02 99.5  54.0  20.0  22.0  Rc1/8 38.5  4.2  36.5  Rc1/4 39.0  Rc1/4
AZH15DS-02-03-03 116.5  58.5  22.5  27.0  Rc1/4 44.5  4.2  43.0  Rc3/8 41.0  Rc3/8
AZH18DS-03-03-03 133.0  52.5  21.0  10.0  Rc3/8 57.5  3.5  47.0  Rc3/8 42.0  Rc3/8
AZH20DS-03-04-04 151.0  61.0  27.0  12.0  Rc3/8 69.3  3.5  50.0  Rc1/2 47.7  Rc1/2
Dimensions(mm)
AZH Series Basic Vacuum Generator 6
ModeVSize A B C D E F| G H Q L K J
AZH05B-06-06 60  16  31  5.8  2  3.2  47  22  24  6  5  6
AZH07B-06-06 60  16  31  5.8  2  3.2  47  22  24  6  5  6
AZH10B-06-06 63  18  32  5.8  2  3.2  50  23  26  6  5  6
AZH13B-08-10 78  23  38.5  7.5  3  4.2  61  27.5  28  10  7  8
AZH-B Box type(One-touch fiting)
ModeVSize A B C D E F G H Q M K S
AZH05B-01-01 68  16  39  5.8  2  3.2  47  Rc1/8 31.5  Rc1/8 5  12
AZH07B-01-01 68  16  39  5.8  2  3.2  47  Rc1/8 31.5  Rc1/8 5  12
AZH10B-01-01 71  18  40  5.8  2  3.2  50  Rc1/8 33.5  Rc1/8 5  12
AZH13B-01-02 86.5  23  50  7.5  3  4.2  61  Rc1/8 36.5  Rc1/4 7  14
