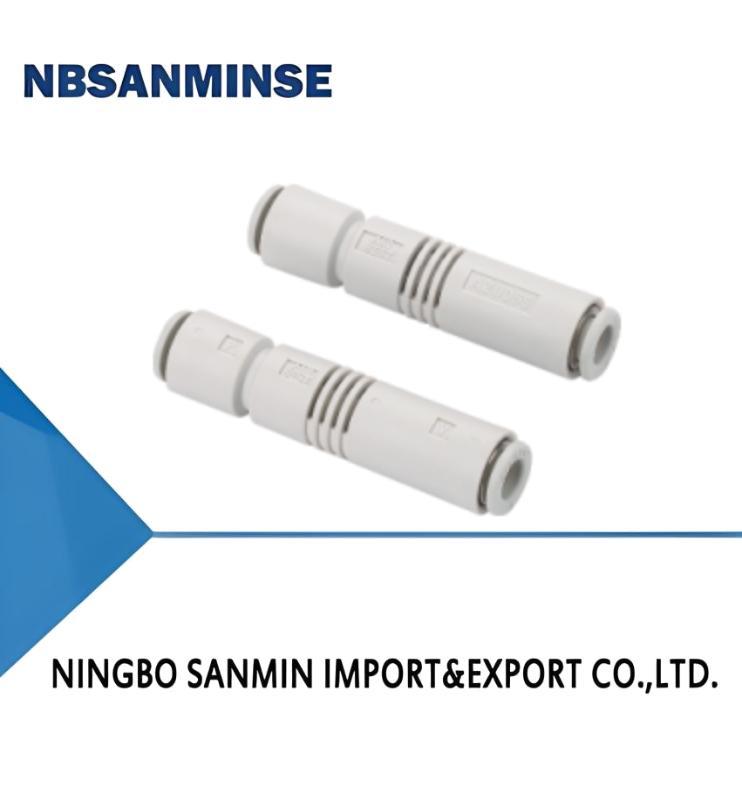

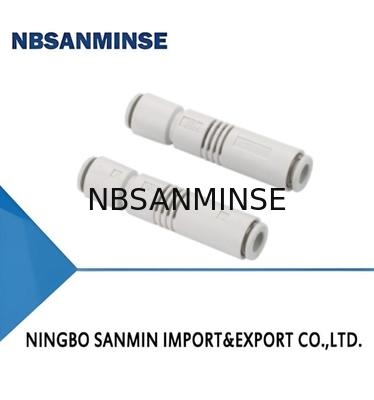

AZU Series Basic Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	AZU05S

Detail Information
Nozzle Diameter Mm:	0.5	Ratedair Supplypressure Bar:	4.5
Max. Vacuumlevel -kPa:	85	Max. Vacuumflow NL/min:	7
Air Consumption NL/min:	9

Product Description

Features

◇ Axial connection

◇ Plastic housing

◇ High vacuum type and large flow type for option

Advantages

◇ Installing directly to hose

◇ Suitable for small space

◇ Easy installation, no additional installation accessories are required

Applications

◇ Linear type to install to PU hose directly

◇ Suitable for handling system of limited space

◇ Handling of electronic components

Structure

◇ (1) Air supply port

◇ (2) Exhaust port

◇ (3) Vacuum port

How to order

AZU 05 S ① ② ③
①Series				②Nozzle diameter								③Specification
AZU				05-φ0.5mm								S-High vacuum leveltype(-85kPa)
				07-φ0.7mm								L-Large vacuum flow type(-48kPa)
Selection
Model/Nozzle diameter						05									07
AZUOS						AZU055									AZU07S
AZU□L						AZU05L									AZU07L
Technical parameters
Model	Nozzle diameter mm	Rated air supplypressure bar			Max. vacuumlevel -kPa			Max. vacuum flow NL/min		Air consumption NL/min			Noise level dB(A)	Working temperature ℃			Weight ig	Recommendedh Airsupplyport P		ose dia. (mm) Vacuum port V
AZU055	0.5	4.5			85			7		9			68	5~60			6.5	φ6		φ6
AZU075	0.7	4.5			85			12		19			68	5~60			7.0	φ6		φ6
AZU05L	0.5	4.5			48			12		9			70	5~60			6.5	φ6		φ6
AZU07L	0.7	4.5			48			21		19			70	5~60			7.0	φ6		φ6
◎Note:Max.operating pressure 7bar,standard operating pressure4.5bar
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar		Air consumption NL/min		0		10		20	30	40		48	50		60	70	80	Max. vacuum level -kPa
AZU055	4.5		9		7.0		6.0		5.0	4.0	3.5			2.5		1.8	1.0	0.4	85
AZU075	4.5		19		12.0		9.5		8.5	7.2	6.0			5.5		4.0	2.0	0.4	85
AZU05L	4.5		9		12.0		10.0		8.0	5.5	3.0		1.0						48
AZU07L	4.5		19		21.0		18.5		15.5	11.5	8.0		1.5			”			48
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air supply pressure bar		Air consumption NL/min			10		20		30		40		45		50		60	Max. vacuum level -kPa
AZU055	4.5		9			0.90		2.6		5.2		10.0				22.5			85
AZU075	4.5		19			0.53		1.4		2.7		5.0				8.7		18	85
AZU05L	4.5		9			0.60		1.5		2.9		8.0		14.0					48
AZU07L	4.5		19			0.34		0.9		2.0		7.5		13.0					48

Dimensions(mm)
