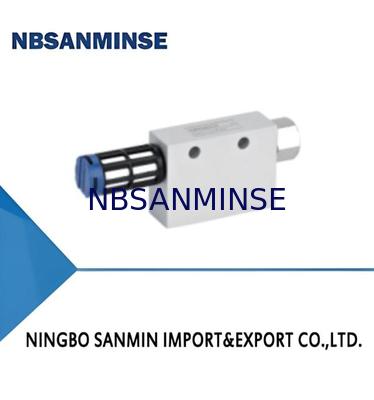

ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption

ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption

Large Image :  ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: ACV-05HS
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: T/T,L/C
Supply Ability: 10000PCS
Contact Now

ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption

Description
Pressure: 5.0 Max. Vacuum Flow: 7NL/min
Air Consumption: 13 NL/min Warranty: 1 Year
Pressure Switch: Nil - Without Pressure Switch Specification: HS - High Vacuum Level Type（-87kPa）
Highlight:

ACV Series vacuum generator

,

pneumatic solenoid valve

,

basic vacuum generator with warranty

Features
◇ Single stage and compact structure
◇ High vacuum level type and large flow type for option
◇ Optional pressure switch
Advantages
◇ Long lifetime and easy maintenance
◇ Meeting all kinds of working conditions
◇ Cost-effective and simple pressure switch for detecting directly
Applications
◇ Widely used in all kinds of vacuum systems
◇ Suitable for various handling operations such as automotive,
metal sheet, wood, food and packaging, etc.
◇ High vacuum type and large flow type for different occasions
◇ Simple structure, the metal nozzle and body can be used in occasions
of complicated environment, it is easy to maintain and clean
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 0
Structure
◇ (1) Air supply port
◇ (2) Vacuum port
◇ (3) Silencer
◇ (4) Pressure switch
◇ (5) Adjusting nut
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 1

How to order
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 2

Selection
  Model/Pressure switch Model/Pressure switch
  Nil-Without pressure switch CK-With adjustable pressure switch   Nil-Without pressure switch CK-With adjustable pressure switch
  ACV-05HS ACV-05HSCK   ACV-05LS ACV-05LSCK
  ACV-10HS ACV-10HSCK   ACV-10LS ACV-10LSCK
  ACV-15HS ACV-15HSCK   ACV-15L ACV-15LSCK
  ACV-20HS ACV-20HSCK   ACV-20LS ACV-20LSCK
  ACV-25HS     ACV-25LS
  ACV-30HS     ACV-30LS
Technical parameters
Model Rated  air
supply   pressure
bar		 Max.
vacuum level
-kPa		 Max.
vacuum flow
NL/min		 Air
consumption
NL/min		 Noise
Level
dB(A)		 Working
temperature
℃		 We
without
switch		 ight(g)
  CK		 Recommended h
Airsupplyport
(P)		 ose dia. (mm)
Vacuumport
(V)
ACV-05HS 5.0  87  7  13  68  0~60 80  120  φ8 φ8
ACV-10HS 5.0  90  27  44  68  0~60 80  120  φ8 φ8
ACV-15HS 5.0  90  63  100  72  0~60 140  190  φ8 φ8
ACV-20HS 5.0  90  110  180  72  0~60 350  460  φ8 φ10
ACV-25HS 5.0  90  160  265  75  0~60 730  700  φ10 φ12
ACV-30HS 5.0  90  225  385  75  0~60 870  846  φ10 φ12
ACV-05LS 5.0  57  10  13  68  0~60 75  115  φ8 φ8
ACV-10LS 5.0  57  36  44  68  0~60 75  115  φ8 φ8
ACV-15LS 5.0  57  95  100  72  0~60 135  180  φ8 φ8
ACV-20LS 5.0  57  170  180  72  0~60 330  440  φ8 φ10
ACV-25LS 5.0  57  250  265  75  0~60 710  680  φ10 φ12
ACV-30LS 5.0  57  350  385  75  0~60 840  816  φ10 φ12
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model Airsupply
pressure
bar		 Air
consumption
NL/min		 0  10  20  30  40  50  60  70  80  Max.
vacuum level
-kPa
ACV-05HS 5.0  13  7.0  5.5  4.2  3.0  1.5  0.8  0.5  0.2  0.05  87
ACV-10HS 5.0  44  27.0  19.0  16.0  14.5  13.0  10.5  8.0  6.5  2.50  90
ACV-15HS 5.0  100  63.0  55.0  44.0  37.0  32.5  25.0  18.0  14.0  9.00  90
ACV-20HS 5.0  180  110.0  100.0  85.0  75.0  55.0  40.5  30.0  20.0  12.00  90
ACV-25HS 5.0  265  160.0  155.0  140.0  120.0  95.0  72.0  47.0  28.0  15.00  90
ACV-30HS 5.0  385  225.0  200.0  160.0  135.0  105.0  78.0  55.0  33.0  19.00  90
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model Airsupply
pressure
bar		 Air
consumption
NL/min		 10  20  30  40  50  60  70  80  Max.
vacuum  level
-kPa
ACV-05HS 5.0  13  0.68  1.38  2.77  4.32  6.02  8.25  9.44  11.82  87
ACV-10HS 5.0  44  0.20  0.49  0.82  1.25  1.74  2.32  2.95  4.00  90
ACV-15HS 5.0  100  0.08  0.19  0.32  0.48  0.69  0.92  1.38  1.95  90
ACV-20HS 5.0  180  0.04  0.10  0.17  0.23  0.34  0.49  0.71  0.92  90
ACV-25HS 5.0  265  0.03  0.07  0.11  0.17  0.24  0.35  0.49  0.75  90
ACV-30HS 5.0  385  0.03  0.06  0.09  0.14  0.20  0.27  0.41  0.63  90
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 3
Evacuation time(s/L)to reach different vacuum levels(-kPa)
 Model Air  supply
pressure
bar

   Air

consumption
NL/min

 10  20  30  40  50  55  Max.
vacuum  level
-kPa
ACV-05LS 5.0  13  0.31  0.98  1.89  3.17  5.12  6.70  57
ACV-10LS 5.0  44  0.12  0.28  0.51  0.83  1.32  1.40  57
ACV-15LS 5.0  100  0.45  0.10  0.15  0.26  0.42  0.56  57
ACV-20LS 5.0  180  0.03  0.06  0.11  0.14  0.25  0.34  57
ACV-25LS 5.0  265  0.02  0.05  0.08  0.12  0.18  0.30  57
ACV-30LS 5.0  385  0.02  0.04  0.06  0.09  0.13  0.22  57
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 4
Technical parameters-Pressure switch
 Model ACV-CK(Adjustable pressure switch)
 Fluid Air
 Set pressure range(-kPa) 20~53
 Ambient temperature 0~60℃(Non-freezing)
 Operating accuracy(-kPa) ±5.3
 Hysteresis(-kPa) 4.0~13.3
 Operating voltage(V) DC24Vbelow
 Load current(A) 0.2
 Effective length of lead wire(m) 0.7
Air circuit schematic diagram
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 5
Dimensions(mm)
ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 6

Model/Size L H W G1 H1 L1 S G2 L2 φd Ld Ld1 Ld2 φD L3
ACV-05 85  16  33  Rp1/8 10  10  14  Rp1/8 8  4.5  4.5  14  20  15  30
ACV-10 85  16  33  Rp1/8 10  10  14  Rp1/8 8  4.5  4.5  14  20  15  30
ACV-15 129  20  35  Rp1/4 15  11  17  Rp1/4 10  4.5  5.0  20  25  19  51
ACV-20 161  30  40  Rp1/4 20  15  24  Rp3/8 13  6.0  7.0  28  32  28  56
ACV-20CK 161  30  50  Rp1/4 20  15  24  Rp3/8 13  6.0  7.0  28  32  28  56
ACV-25 236  40  60  Rp3/8 17  20  27  Rp1/2 16  6.0  5.5  20  50  40  119
ACV-30 257  40  60  Rp1/2 20  20  30  Rp3/4 20  6.0  5.5  33  50  40  119

ACV Series Vacuum Generator with 5.0 Pressure 7NL/min Max Vacuum Flow and 13 NL/min Air Consumption 7
