SP3 Series Suction Cup

Large Image : SP3 Series Suction Cup

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	SP3C4

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Plastic bag
Delivery Time:	5-30days
Payment Terms:	T/T,L/C
Supply Ability:	10000PCS

Contact Now

SP3 Series Suction Cup

Description

Vacuum Port:	Nil - Vertical	Connection:	M3F - M3×0.5 Female Thread
Mounting Thread:	M3F - M3×0.5 Female Thread	Warranty:	1 Year
Power Type::	Air
Highlight:	SP3 suction cup solenoid valve , pneumatic suction cup valve , SP3 series pneumatic valve

Features

◇ Suction cups of same diameter among U/C/B types use same fitting

◇ Small size, short height

◇ Available in conductive material

Advantages

◇ Used in various occasions, suction cups are interchangeable

◇ Suitable for occasions with limited space

◇ Discharge static electricity gently to protect workpieces from damage

Applications

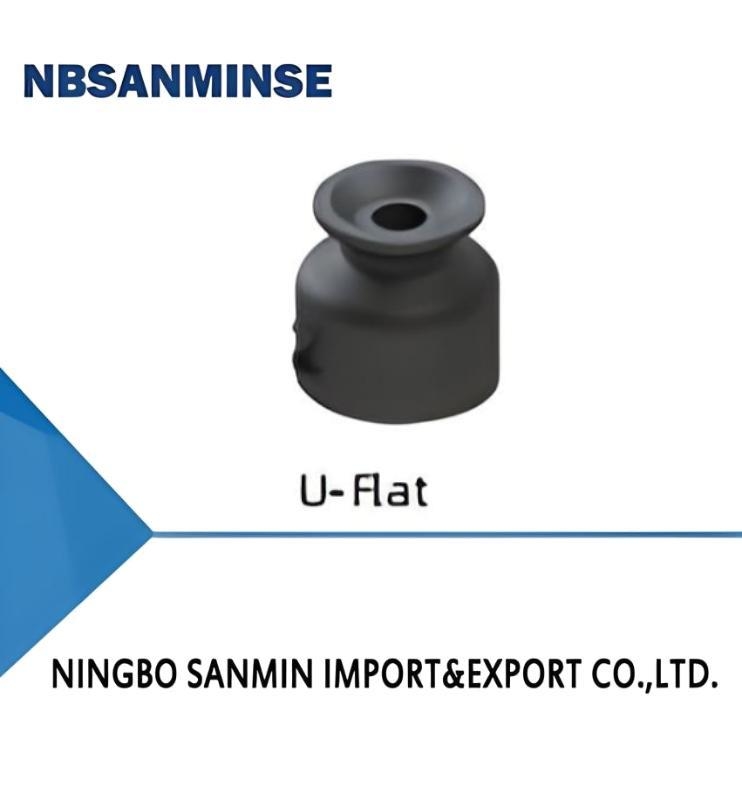

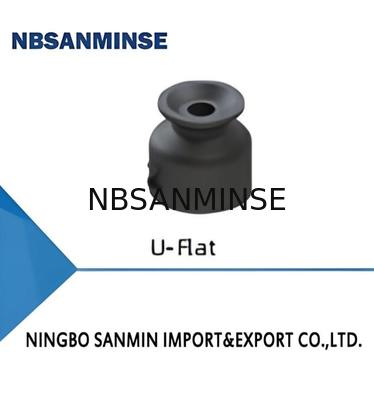

◇ U type suitable for workpieces with even surface and without deformation

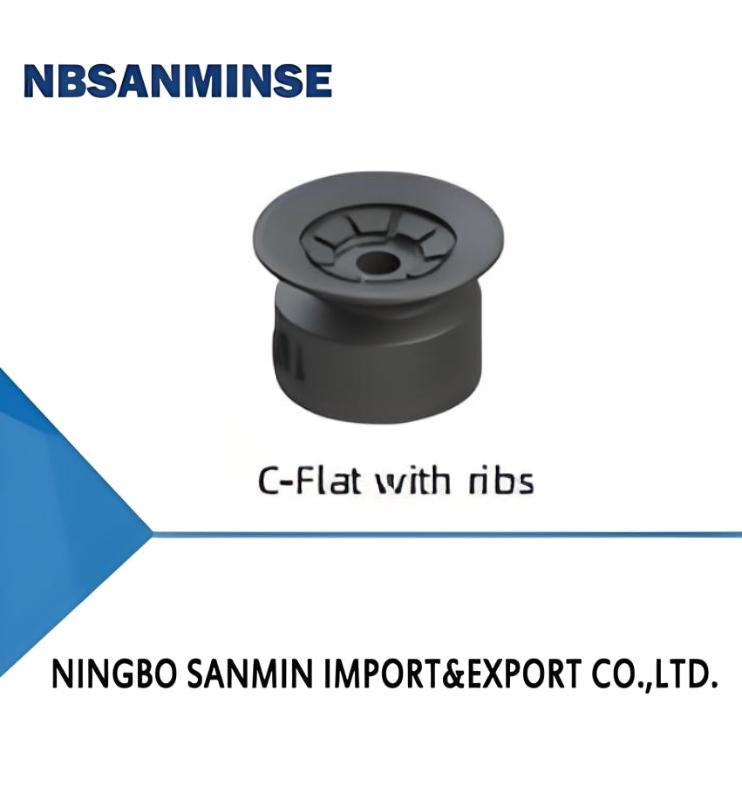

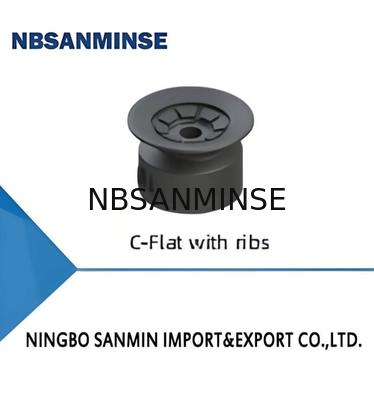

◇ C type suitable for easily deformed workpieces

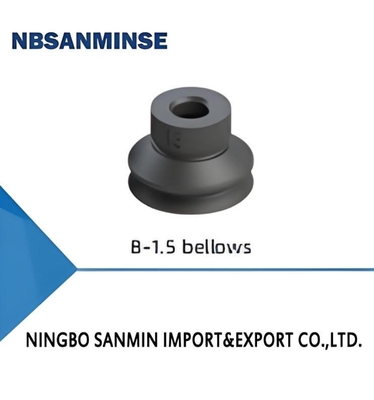

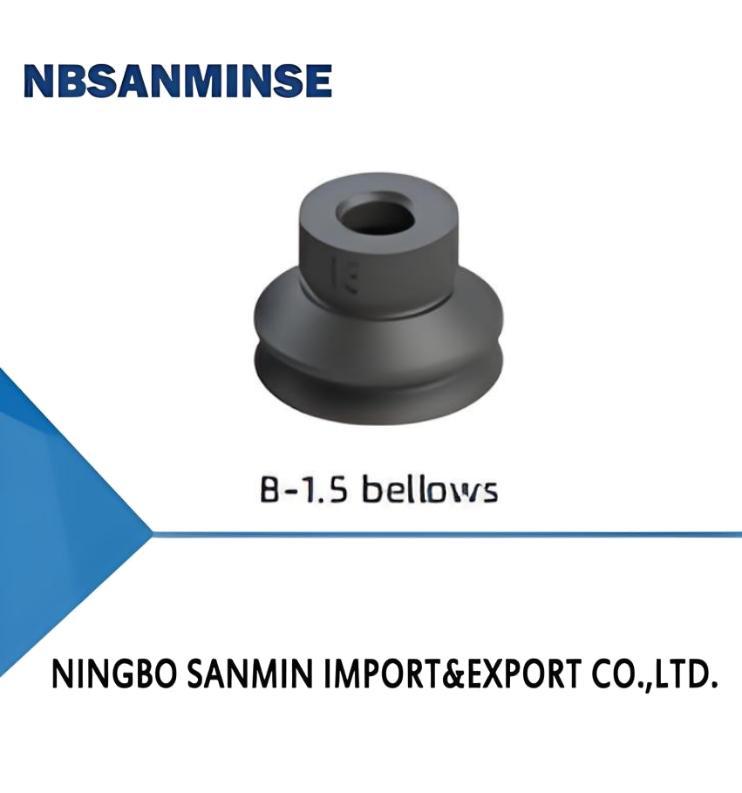

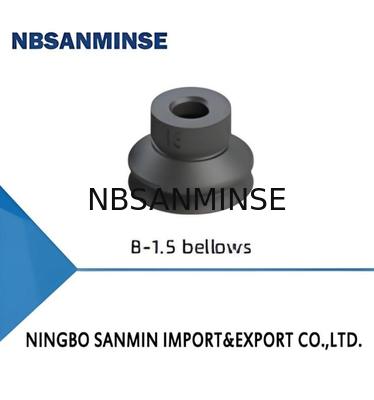

◇ B type suitable for workpieces with inclined surface

◇ Suitable for handling of workpieces with small size and light weight

◇ Conductive material suitable for 3C industry

Structure

◇ Split structure for easy replacement of wearing parts

How to order

◇ Note: HP material is not for all sizes. Please contact AIRBEST if need

Selection

◇ Note: "●" default, in stock, "-" unavailable

Dimensions(mm) - U type

Dimensions(mm) - C type

Dimensions(mm) - B type

Mounting parts

Item	Model Female thread	Male thread	Applicable suction cup
Fitting for suction cup	PJS-M3F-ST0.5	PJS-M3M-ST0.5	SP3U1.5, 2, 3.5
	PJS-M5F-ST1.5	PJS-M5M-ST1.5	SP3C4, 6, 8；SP3B4, 6, 8
	PJS-M5F-ST2	PJS-M5M-ST2-A	SP3C10, 13, 16；SP3B10, 13, 16

Structure

◇ Consisting of replacement suction cup(3) and locking fitting(1 or 2)

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), female thread for mounting

How to order

◇ Please refer to page 72 for suction cup selection

Selection

Model	Nil-Vertical Vacuum port connection	Mounting thread	L-Lateral Vacuum port connection	Mounting thread
SP3U1.5-3.5	M3F	M6M	M3F	M3F
SP3C4-8	M5F	M10M	M5F	M5F
SP3C10-16	M5F	M12M	M5F	M5F
SP3B4-8	M5F	M10M	M5F	M5F
SP3B10-16	M5F	M12M	M5F	M5F

Dimensions(mm) - U type

Dimensions(mm) - C type

Dimensions(mm) -B type

Mounting parts

Item	Model Vertical direcion	Lateral direction	Applicable suction cup
Locking fitting	PJF-M3F-M6M-ST0.5	PJF-LM3F-M3F-ST0.5	SP3U1.5,2,3.5
	PJF-M5F-M10M-ST1.5	PJF-LM5F-M5F-ST1.5	SP3C4,6,8;SP3B4,6,8
	PJF-M5F-M12M-ST2	PJF-LM5F-M5F-ST2	SP3C10,13,16;SP3B10,13,16

Structure

◇ Consisting of replacement suction cup(3) and level compensator(1 or 2)

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), male thread for mounting

How to order

◇ Please refer to page 72 for suction cup selection

Selection

Dimensions(mm) -C type

Dimensions(mm) -U type

Dimensions(mm) -B type

Dimensions(mm) -B type

Model Vertical rotating	Vertical non-rotating	Model Lateral rotating	Lateral non-rotating	Buffer stroke	Applicable suction cup
PSP3-I3ST0.5-M6	PSP3-I3RST0.5-MB	PSP3-L3ST0.5-M6	PSP3-L3RST0.5-M8	3	SP3U1.5,2,3.5
PSP3-I6ST0.5-M6	PSP3-I6RST0.5-MB	PSP3-L6ST0.5-M6	PSP3-L6RST0.5-M8	6
PSP3-135T1.5-M8	PSP3-13RST1.5-MB	PSP3-L35T1.5-M8	PSP3-L3RST1.5-M8	3	SP3C4,6,8;SP3B4,6,8
PSP3-I6ST1.5-M8	PSP3-I6RST1.5-MB	PSP3-L65T1.5-M8	PSP3-L6RST1.5-M8	6
PSP3-I10ST1.5-M8	PSP3-I10RST1.5-M8	PSP3-L10ST1.5-M8	PSP3-L10RST1.5-M8	10
PSP3-I15ST1.5-M8	PSP3-I15RST1.5-M8	PSP3-L15ST1.5-M8	PSP3-L15RST1.5-M8	15
P5P3-I20ST1.5-M8	PSP3-I20RST1.5-M8	PSP3-L20ST1.5-M8	PSP3-L20RST1.5-M8	20
PSP3-I3ST2-M8	PSP3-I3RST2-M8	PSP3-L3ST2-M8	PSP3-L3RST2-M8	3	SP3C10,13,16;SP3B10,13,16
PSP3-I6ST2-M8	PSP3-I6RST2-M8	PSP3-L6ST2-M8	PSP3-L6RST2-M8	6
PSP3-I10ST2-M8	PSP3-I10RST2-M8	PSP3-L10ST2-M8	PSP3-L10RST2-M8	10
PSP3-I15ST2-M8	PSP3-I15RST2-M8	PSP3-L15ST2-M8	PSP3-L15RST2-M8	15
PSP3-I20ST2-M8	PSP3-I20RST2-M8	PSP3-L20ST2-M8	PSP3-L20RST2-M8	20
