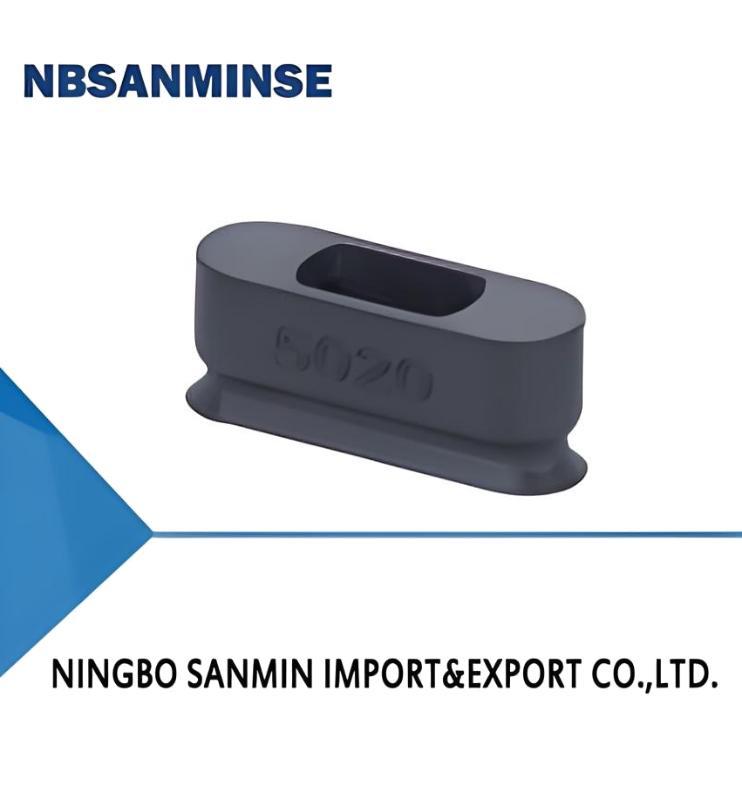

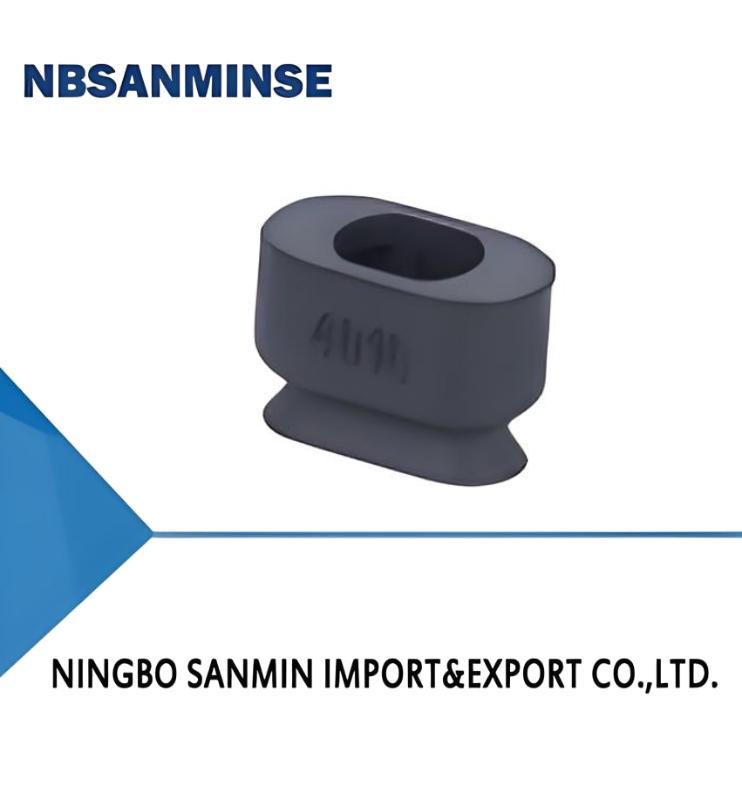

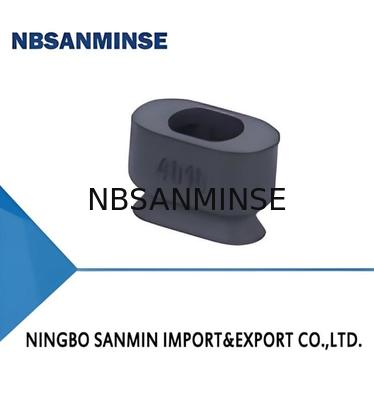

SAO Series Oval Flat Suction Cup

Large Image : SAO Series Oval Flat Suction Cup

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	SAO3.5×7

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	T/T,L/C
Supply Ability:	10000PCS

Contact Now

SAO Series Oval Flat Suction Cup

Description

Pull-out:	0.9force N	Inner Volume:	<0.1 Cm³
Min. Curve Radius:	6 Mm	Recommend Hose:	4mm
Material & Hardness:	N- NBR 55
Highlight:	oval flat suction cup , pneumatic solenoid valve suction cup , SAO series suction cup

Features

◇ Oval and Flat structure

◇ Conductive material available

◇ Various sizes available

Advantages

◇ Small sizes, large suction force, suitable for handling of long

and narrow workpieces

◇ Discharge static electricity gently to protect workpieces from

damage

◇ Suitable for workpieces of various sizes and shapes

Applications

◇ Handling of long and narrow workpieces with even surface

◇ Handling of electronic components

◇ Conductive material is suitable for 3C industry

Structure

◇ Split structure for easy replacement of wearing parts

How to order

Technical parameters

Model	Pul lout force N	Inner volume cm³	Min.Curve radius of workpiece mm	Weight g	Recommended hose dia. mm	MPQ pcs
SAO3.5×7	0.9	<0.1	6	0.5	4	10
SAO4×10	1.6	<0.1	7	0.4	4	10
SAO5×10	2	<0.1	9	0.4	4	10
SAO6×10	2.4	<0.1	13	0.5	4	10
SAO4×20	3.2	<0.1	8	0.8	4	10
SAO5×20	4.2	<0.1	11	0.7	4	10
SAO6×20	5	<0.1	14	0.9	4	10
SAO8×20	6.5	<0.1	16	0.9	4	10
SAO4×30	5.2	<0.1	8	1.3	4	10
SAO5×30	6.5	<0.1	10	1.1	4	10
SAO6×30	7.8	<0.1	14	1.2	4	10
SAO8×30	10.2	0.1	18	1.3	4	10

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m.

Dimensions(mm)

Dimensions(mm)

◇ Note: The dimensional tolerance conforms to the GBT 3672.1-2002-1 M3 rubber product dimensional tolerance standard

Structure

◇ Consisting of replacement suction cup and locking fitting

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port, female thread for mounting

◇ Lateral vacuum port, male and female thread for mounting

How to order

◇ Please refer to page 87 for suction cup selection

Selection

Connection thread M-Male thread		F-Female thread
SAO3.5×7□-LA4-M5M	SAO3.5×7□-LA6-M5M	SAO3.5×7□-LA4-M5F	SAO3.5×7□-LA6-M5F	SAO3.5×7□-M5F
SAO4×10□-LA4-M5M	SAO4×10□-LA6-M5M	SAO4×10□-LA4-M5F	SAO4×10□-LA6-M5F	SAO4×10□-M5F
SAO5×10□-LA4-M5M	SAO5×10□-LA6-M5M	SAO5×10□-LA4-M5F	SAO5×10□-LA6-M5F	SAO5×10□-M5F
SAO6×10□-LA4-M5M	SAO6×10□-LA6-M5M	SAO6×10□-LA4-M5F	SAO6×10□-LA6-M5F	SAO6×10□-M5F
SAO4×20□-LA4-M5M	SAO4×20□-LA6-M5M	SAO4×20□-LA4-M5F	SAO4×20□-LA6-M5F	SAO4×20□-M5F
SAO5×20□-LA4-M5M	SAO5×20□-LA6-M5M	SAO5×20□-LA4-M5F	SAO5×20□-LA6-M5F	SAO5×20□-M5F
SAO6×20□-LA4-M5M	SAO6×20□-LA6-M5M	SAO6×20□-LA4-M5F	SAO6×20□-LA6-M5F	SAO6×20□-M5F
SAO8×20□-LA4-M5M	SAO8×20□-LA6-M5M	SAO8×20□-LA4-M5F	SAO8×20□-LA6-M5F	SAO8×20□-M5F
SAO4×30□-LA4-M5M	SAO4×30□-LA6-M5M	SAO4×30□-LA4-M5F	SAO4×30□-LA6-M5F	SAO4×30□-M5F
SAO5×30□-LA4-M5M	SAO5×30□-LA6-M5M	SAO5×30□-LA4-M5F	SAO5×30□-LA6-M5F	SAO5×30□-M5F
SAO6×30□-LA4-M5M	SAO6×30□-LA6-M5M	SAO6×30□-LA4-M5F	SAO6×30□-LA6-M5F	SAO6×30□-M5F
SAO8×30□-LA4-M5M	SAO8×30□-LA6-M5M	SAO8×30□-LA4-M5F	SAO8×30□-LA6-M5F	SAO8×30□-M5F

Dimensions(mm)

Structure

◇ Consisting of replacement suction cup(3) and level compensator

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), male thread for mounting

How to order

Dimensions(mm)

Tag:

Contact Person: Ina Chen

Tel: 0086-15168536055

Fax: 86-574-88915660
