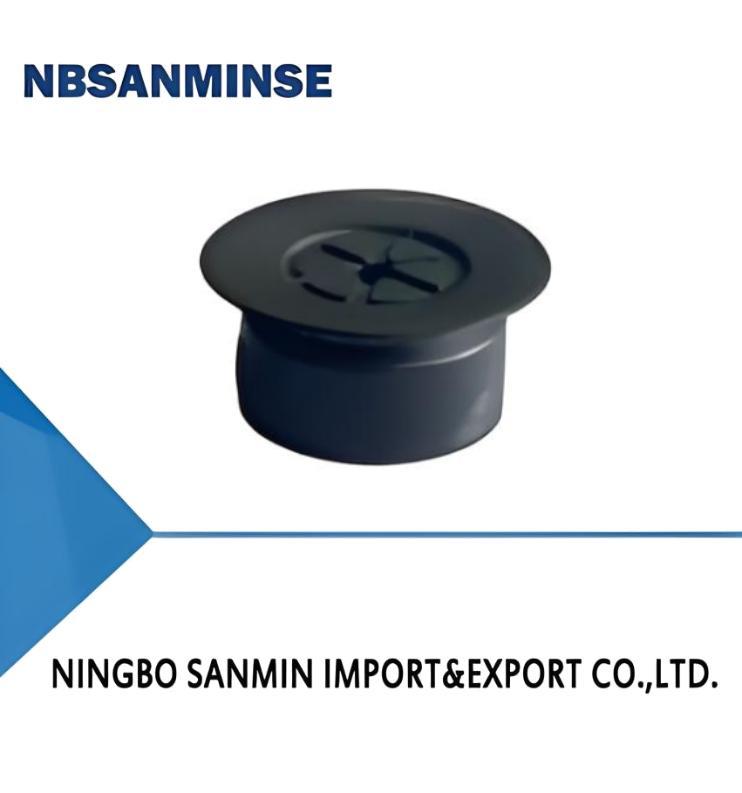

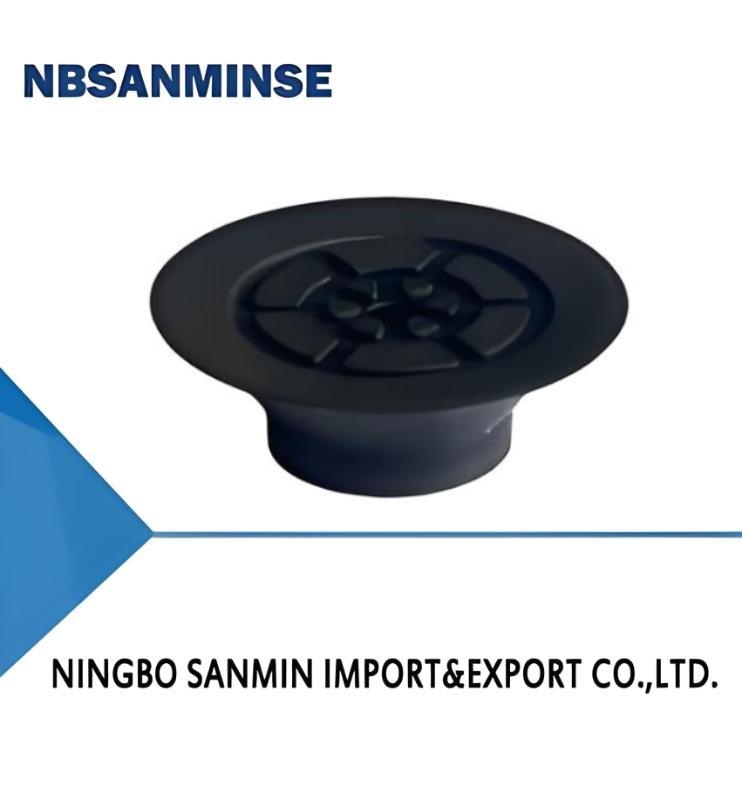

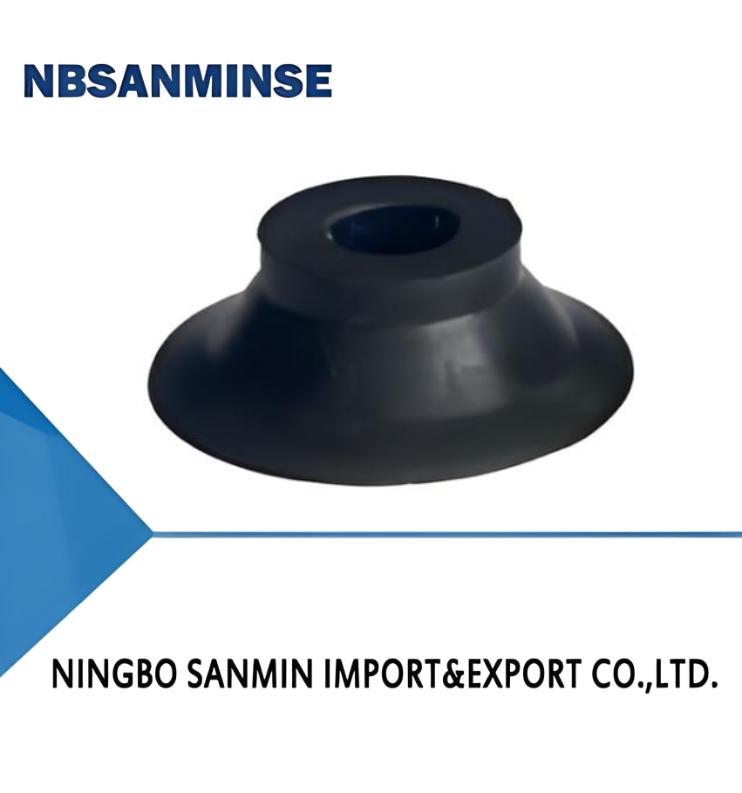

SP2F Series Thin Lip Flat Suction Cup

SP2F Series Thin Lip Flat Suction Cup
SP2F Series Thin Lip Flat Suction Cup SP2F Series Thin Lip Flat Suction Cup SP2F Series Thin Lip Flat Suction Cup SP2F Series Thin Lip Flat Suction Cup

Large Image :  SP2F Series Thin Lip Flat Suction Cup

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SP2F10
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS

SP2F Series Thin Lip Flat Suction Cup

Description
Diameter: 10 - φ10mm Material & Hardness: N- NBR
Connection Thread: Nil - Suction Cup Only Pull-out: 3.2force N
Recommend: 4 Mm
Highlight:

thin lip flat suction cup

,

pneumatic solenoid valve suction cup

,

SP2F series flat suction cup

Features
◇ Thin lip, flat and short stroke
◇ With support structure at the bottom
Advantages
◇ Good sealing for handling of thin and flat workpieces
◇ Prevents fold during handling of paper and thin film
Applications
◇ Suitable for occasions that has high requirements for mark on
product surface during handling, such as paper, plastic film,
aluminum foil and copper foil
SP2F Series Thin Lip Flat Suction Cup 0
Structure
◇ Split structure for easy replacement of wearing parts
SP2F Series Thin Lip Flat Suction Cup 1
How to order
SP2F Series Thin Lip Flat Suction Cup 2
SP2F Series Thin Lip Flat Suction Cup 3
◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m
SP2F Series Thin Lip Flat Suction Cup 4
Structure
◇ Consisting of replacement suction cup and locking fitting
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port, Pagoda fitting or one-touch fitting for
connection,male thread for mounting
◇ Lateral vacuum port, Pagoda fitting for connection, female
thread for mounting
SP2F Series Thin Lip Flat Suction Cup 5
SP2F Series Thin Lip Flat Suction Cup 6

 SP2F Series Thin Lip Flat Suction Cup 7
Structure
◇ Consisting of replacement suction cup(3) and level compensator
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port(1), male thread for mounting
◇ Lateral vacuum port(2), male thread for mounting
SP2F Series Thin Lip Flat Suction Cup 8
SP2F Series Thin Lip Flat Suction Cup 9
SP2F Series Thin Lip Flat Suction Cup 10
