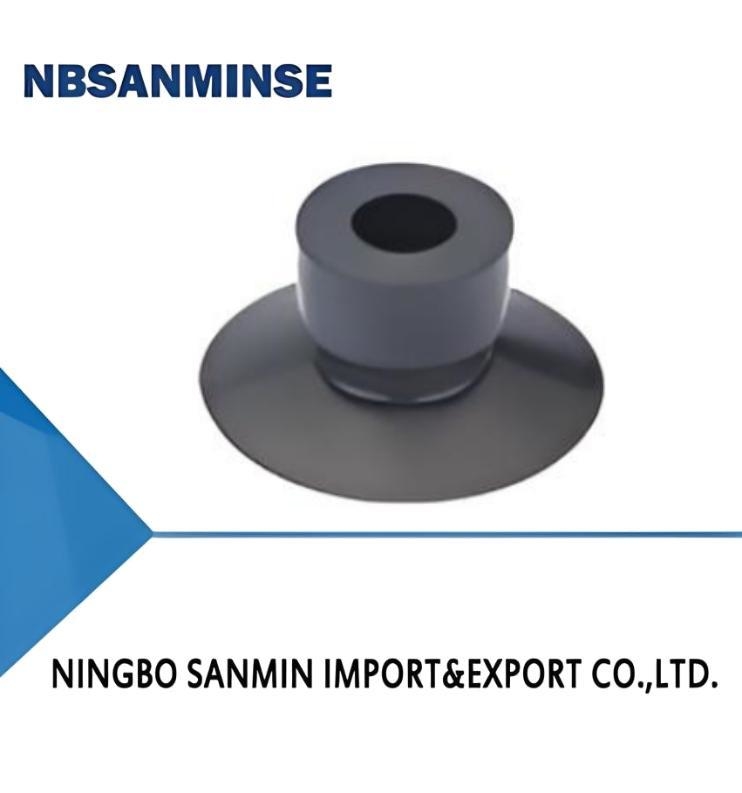

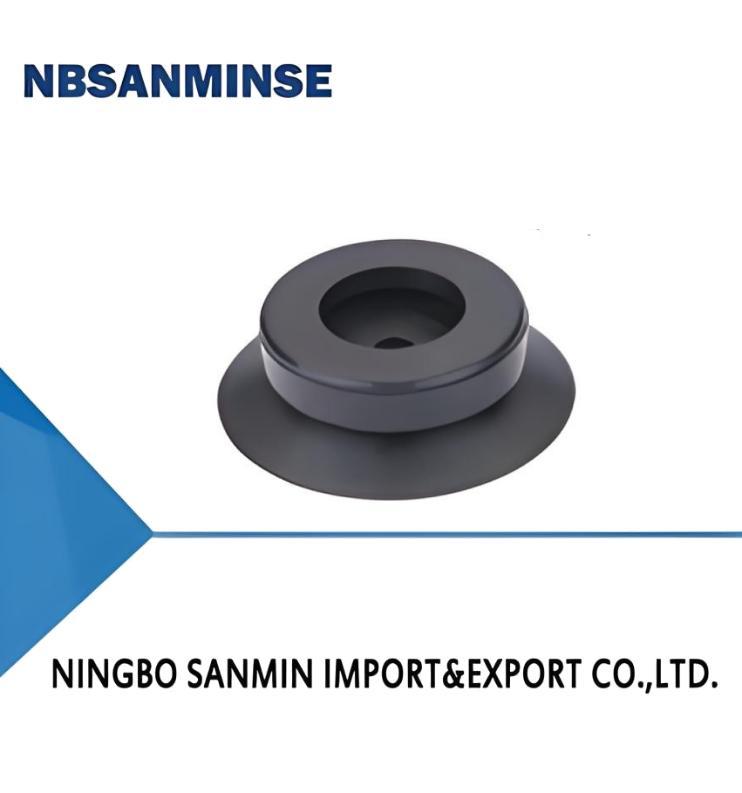

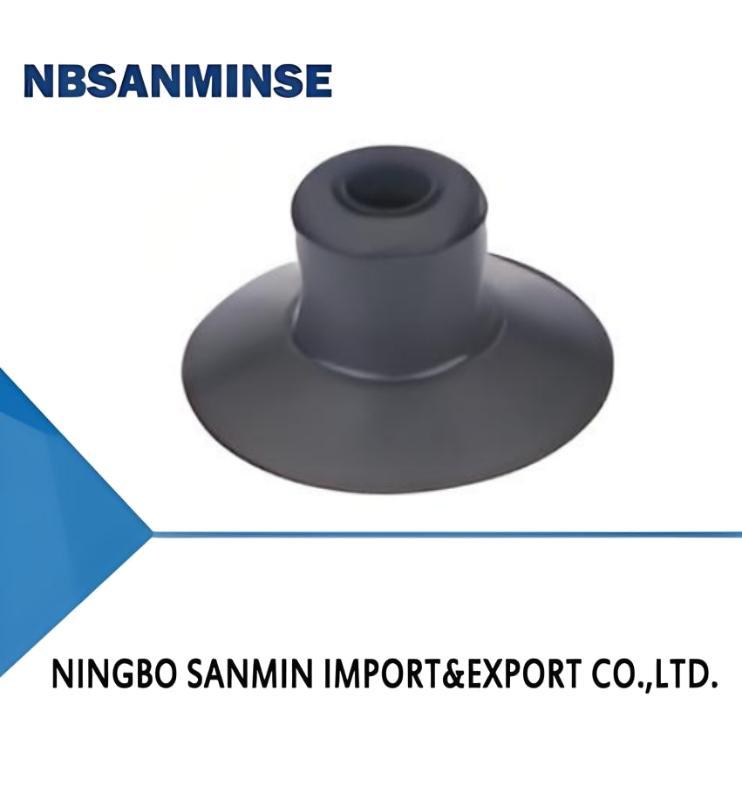

SPA Series Suction Cup with Level Compensator

Contact Now

SPA Series Suction Cup with Level Compensator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SPA10A

Detail Information
Diameter:	10 - φ10mm	Material & Hardness:	N- NBR
Connection Thread:	Nil - Suction Cup Only	Pull-out Force N:	3.5
Recommended Hose Dia. Mm:	4

Product Description

Features

◇ Thin lip, flat and short stroke

◇ With support structure at the bottom

◇ Available in various sizes

Advantages

◇ Good sealing for handling of thin and flat workpieces

◇ Prevents fold during handling of paper and thin film

◇ Suitable for workpieces of various sizes and shapes

Applications

◇ Suitable for occasions that has high requirements for mark on

product surface during handling, such as paper, plastic film,

aluminum foil and copper foil

◇ B type suction cup is flat and with thin lip, which is more suitable

for handling thin workpieces that are easy to wrinkle, such as

aluminum foil, copper foil

Structure

◇ Split structure for easy replacement of wearing parts

How to order

Selection
Model	Connection thread M-Male thread	Model	Connection thread M-Male thread
SPA10A□	SPA10A□-M5M	SPA20B□	SPA20B□-M5M
SPA10B□	SPA10B□-M5M	SPA25A□	SPA25A□-M6M	SPA25A□-M8M
SPA15A□	SPA15A□-M5M	SPA30A□	SPA30A□-M6M	SPA30A□-M8M
SPA15B□	SPA15B□-M5M	SPA30B□	SPA30B□-M5M
SPA15D□	SPA15D□-M5M	SPA40A□	SPA40A□-M6M	SPA40A□-M8M
SPA20A□	SPA20A□-M5M	SPA50A□	SPA50A□-M6M	SPA50A□-M8M

Technical parameters
Model	Pull-out force N	Inner volume cm³	Weight g	Recommended hose dia mm	MPQ pcs
SPA10A	3.5	<0.1	0.3	4	10
SPA10B	3.5	<01	0.56	4	10
SPA15A	8	<0.1	0.28	4	10
SPA15B	8	<0.1	0.4	4	10
SPA15D	8	<0.1	0.28	4	10
SPA20A	15	0.3	0.8	4	5
SPA20B	15	<0.1	0.7	4	5
SPA25A	22	0.6	2.0	4	5
SPA30A	32	1.1	2.6	4	5
SPA30B	32	0.2	3.4	4	5
SPA40A	56	2.6	2.6	6	5
SPA50A	88	5.8	4.3	6	1

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m.

Structure

◇ Consisting of replacement suction cup and locking fitting

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port, Pagoda fitting or one-touch fitting for

connection,male thread for mounting

◇ Lateral vacuum port, Pagoda fitting for connection, female

thread for mounting

Model	Vacuum port direction Vertical-Pagoda fitting	Vertical-One-touch fitting	Lateral-Pagoda fitting
SPA10A□	SPA10A□-B6-M8M	SPA10A□-A4-M2M	SPA10A□-LB6-M4F
SPA10B□	SPA10B□-B6-M8M	SPA10B□-A4-M12M	SPA10B□-LB6-M4F
SPA15A□	SPA15A□-B6-M8M	SPA15A□-A4-M2M	SPA15A□-LB6-M4F
SPA15B□	SPA15B□-B6-M8M	SPA15B□-A4-M2M	SPA15B□-LB6-M4F
SPA15D□	SPA15D□-B6-M8M	SPA15D□-A4-M2M	SPA15D□-LB6-M4F
SPA20A□	SPA20A□-B6-M8M	SPA20A□-A4-M12M	SPA20A□-LB6-M4F
SPA20B□	SPA20B□-B6-M8M	SPA20B□-A4-M2M	SPA20B□-LB6-M4F
SPA25A□	SPA25A□-B6-M10M	SPA25A□-A6-M14M	SPA25A□- LB6-M6F
SPA30A□	SPA30A□-B6-M10M	SPA30A□-A6-M14M	SPA30A□-LB6-M6F
SPA30B□	SPA30B□-B6-M10M	SPA30B□-A6-M14M	SPA30B□-LB6-M6F
SPA40A□	SPA40A□-B6-M10M	SPA40A□-A6-M14M	SPA40A□-LB6-M6F
SPA50A□	SPA50A□-B6-M10M	SPA50A-A6-M14M	SPA50A□- LB6-M6F

Structure

◇ Consisting of replacement suction cup(3) and level compensator

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), male thread for mounting

Selection
Model	Vacuum port direction Vertical-Pagoda fitting	Lateral-Pagoda fitting
SPA10A□	SPA10A□-FE4B6-M1 SPA10A□-FE10B6-M1	SPA10A□-FE4LB6-M11 SPA10A□-FE10LB6-M11
SPA10B□	SPA10B□-FE4B6-M11 SPA10B□-FE10B6-M11	SPA10B□-FE4LB6-M11 SPA10B□-FE10LB6-M11
SPA15A□	SPA15A□-FE4B6-M11 SPA15A□-FE10B6-M11	SPA15A□-FE4LB6-M11 SPA15A□-FE10LB6-M11
SPA15B□	SPA15B□-FE4B6-M11 SPA15B□-FE10B6-M11	SPA15B□-FE4LB6-M11 SPA15B□-FE10LB6-M11
SPA15D□	SPA15D□-FE4B6-M1 SPA15D□-FE10B6-M11	SPA15D□-FE4LB6-M11 SPA15D□-FE10LB6-M11
SPA20A□	SPA20A□-FE4B6-M11 SPA20A□-FE10B6-M11	SPA20A□-FE4LB6-M11 SPA20A□-FE10LB6-M11
SPA20B□	SPA20B□-FE4B6-M1 SPA20B□-FE10B6-M11	SPA20B□-FE4LB6-M11 SPA20B□-FE10LB6-M11
SPA25A□	SPA25A□-FE6B6-M14 SPA25A□-FE15B6-M14	SPA25A□-FE6LB6-M14 SPA25A□-FE15LB6-M14
SPA30A□	SPA30A□-FE6B6-M14 SPA30A□-FE15B6-M14	SPA30A□-FE6LB6-M14 SPA30A□-FE15LB6-M14
SPA30B□	SPA30B□-FE6B6-M14 SPA30B□-FE15B6-M14	SPA30B□-FE6LB6-M14 SPA30B□-FE15LB6-M14
SPA40A□	SPA40A□-FE6B6-M14 SPA40A□-FE15B6-M14	SPA40A□-FE6LB6-M14 SPA40A□-FE15LB6-M14
SPA50A□	SPA50A-FE6B6-M14 SPA50A□-FE15B6-M14	SPA50A□-FE6LB6-M14 SPA50A-FE15LB6-M14
