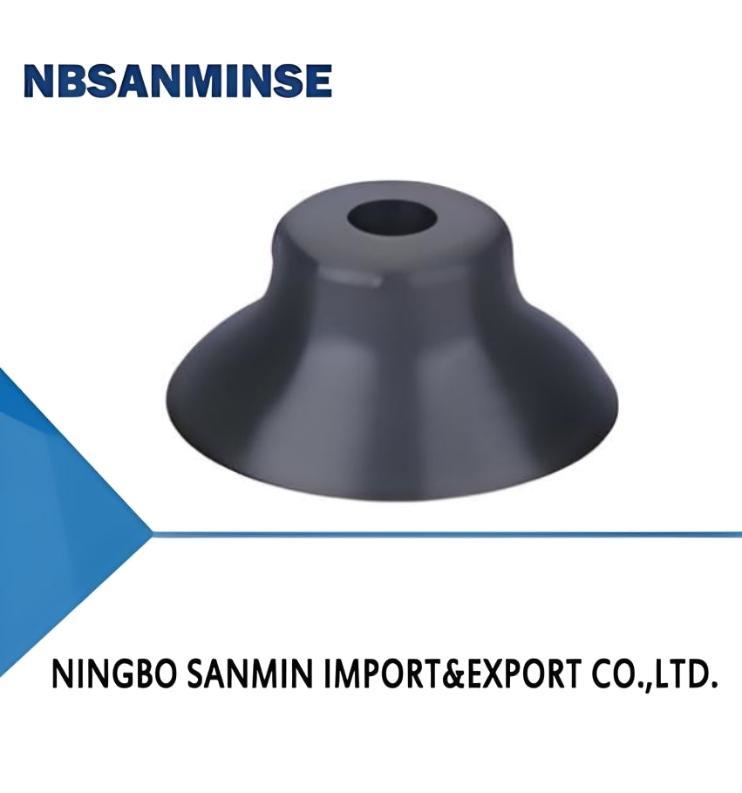

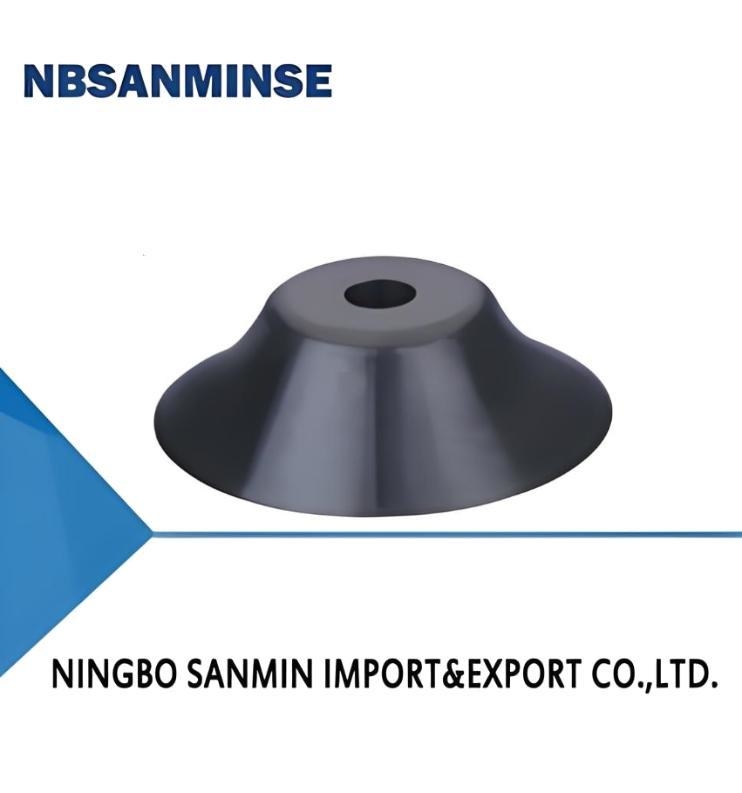

SPF Series Flat Suction Cup

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SPF2

Detail Information
Material & Hardness:	N- NBR	Connection Thread:	Nil - Suction Cup Only
Pull-out Force N:	43	Recommended Hose Dia. Mm:	4
Diameter:	2 - φ2mm

Product Description

Features

◇ With support structure at the bottom

◇ Optimal design

◇ Small inner volume

◇ Available in various sizes

Advantages

◇ Be able to prevent permanent deformation of workpieces

◇ Small size, large suction force

◇ Short working cycle

◇ Suitable for workpieces of various sizes and shapes

Applications

◇ Handling of flat workpieces with smooth or slightly rough surface

such as wood, metal plate, plywood and plastic plate

◇ Suitable for handling electronic components, conductive material

can effectively prevent electrostatic damage to electronic components

Structure

◇ Suction cups with diameter less than 50mm adopt split structure for

easy replacement of wearing parts

◇ One-piece structure for suction cup with diameter 60mm-200mm

How to order

Selection

Model	Connection thread M-Male thread	Model	Connection thread M-Male thread
SPF2□	SPF2□-M3M	SPF25□	SPF25□-M5M
SPF3.5□	SPF3.5□-M3M	SPF30□	SPF30□-M5M
SPF5□	SPF5□-M5M	SPF35□	SPF35□-M5M
SPF6□	SPF6□-M5M	SPF40□	SPF40□-M5M
SPF8□	SPF8□-M5M	SPF50□	SPF50□-M8M
SPF10□	SPF10□-M5M	SPF60□-M10F
SPF15□	SPF15□-M5M	SPF80□-M10F	·
SPF20□	SPF20□-M5M	SPF95□-M10F	·

Technical parameters

Model	Pull-out force N	Inner volume cm³	Weight g	Recommended hose dia mm	MPQ pcs	Model	Pull-out force N	Inner volume cm²	Weight g	Recommended hose dia. mm	MPQ pcs
SPF2	0.15	<0.1	0.1	4	10	SPF35	43	2.4	6.6	6	5
SPF3.5	0.4	<0.1	0.1	4	10	SPF40	60	3.4	8.4	6	5
SPF5	0.9	<0.1	0.2	4	10	SPF50	92	5.7	10.4	8	1
SPF6	1.2	<0.1	0.2	4	10	SPF60	127	11	23.2	8	1
SPFB	2.2	<0.1	0.2	4	10	SPF80	226	25.3	48.2	8	1
SPF10	3.5	<0.1	0.3	4	10	SPF95	319	38	70.3	10	1
SPF15	8	0.2	0.4	6	10	SPF120	510	81	159.5	10	1
5PF20	15	0.5	1.6	6	5	SPF150	800	171	322.4	12	1
SPF25	24	1.1	2.5	6	5	SPF200	1,410	364	521.5	12	1
SPF30	32	1	3.3	6	5

Dimensions(mm) - Suction cup only

Mounting parts

tem	Model M-Male thread	Applicable suction cup
Fitting for suction cup	PJS-M3M-ST1	SPF2,3.5
	PJS-M5M-ST2	SPF5,6,8,10,15
	PJS-M5M-ST3	SPF20
	PJS-M5M-ST4	SPF25,30,35,40
	PJS-M8M-ST6	SPF50

Structure

◇ Consisting of replacement suction cup and locking fitting

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port, Pagoda fitting or one-touch fitting for

connection, male thread for mounting

◇ Lateral vacuum port, Pagoda fitting for connection, female

thread for mounting

How to order

Selection

Model	Vacuum port direction Vertical-Pagoda fitting	Lateral-Pagoda fitting
SPF60□	SPF60□-R1-M16M	SPF60□-LR1-M8F
SPF80□	SPF80□-R1-M16M	SPF80□-LR1-M8F
SPF95□	SPF95□-R1-M16M	SPF95□-LR1-M8F
SPF120□		SPF120□-LR1-M16F
SPF150□		SPF150□-LR1-M16F
SPF200□		SPF200□-LR1-M16F

Structure

◇ Consisting of replacement suction cup(3) and level compensator

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), male thread for mounting

How to order

◇ Please refer to page 113 for suction cup selection

Selection

Model	Vacuum port direction Vertical-Pagoda fitting	Lateral-Pagoda fiting
SPF60□	-	SPF60□-FE10LR1-M16 SPF60□-FE 30LR1-M16
SPFB0□	-	SPF80□-FE10LR1-M16 SPF80□-FE 30LR1-M16
SPF95□	-	SPF95□-FE10LR1-M16 SPF95□-FE 30LR1-M16

Dimensions(mm)

Dimensions(mm)

Dimensions(mm)
