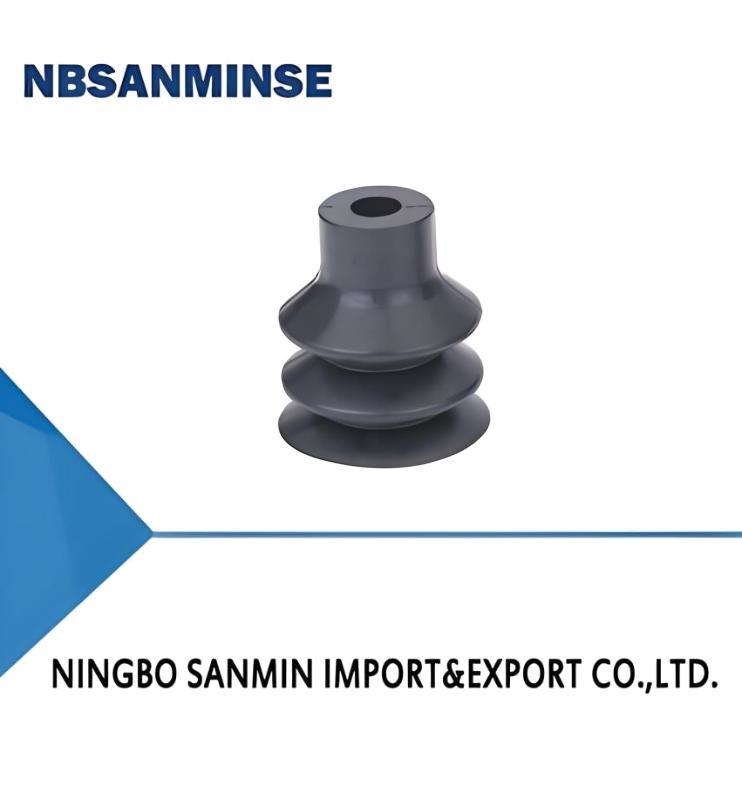

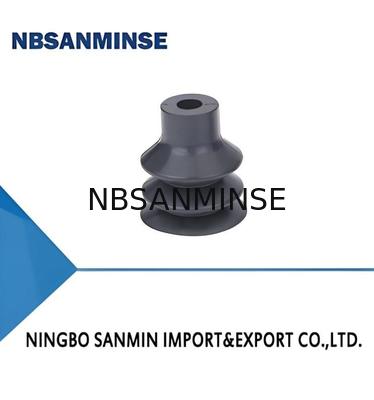

SPC Series Bellows Suction Cup

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SPC3

Detail Information
Diameter:	3 - φ3mm	Material & Hardness 5:	N- NBR
Connection Thread:	Nil - Suction Cup Only	Pull-out Force N:	0.5
Recommended Hose Dia. Mm:	4

Product Description

Features

◇ 2.5 bellows

◇ Soft and tapered lips

◇ Available in various sizes

Advantages

◇ Large suction force, and have good buffer effect when suck workpiece with

uneven surface

◇ Good sealing and long compressed stroke, suitable for handling workpieces

with uneven surface

◇ Suitable for workpieces of various sizes and shapes

Applications

◇ Handling of fragile workpieces such as electronic components

and injection molding parts

◇ Handling of workpieces with uneven surface such as paper and

pipes

Structure

◇ 2.5 bellows, long compressed stroke

◇ Split structure for easy replacement of wearing parts

Technical parameters

Model	Pull-out force N	Inner volume cm³	Min.Curve radius of workpiece mm	Weight g	Recommended hose dia mm	MPQ pcs
SPC3	0.5	<0.1	4	0.2	4	10
SPC5	0.9	<0.1	7.5	0.2	4	10
SPC7	1.7	<0.1	12	0.3	4	10
SPC10	3.5	0.2	13	0.8	6	10
SPC12	5	0.4	13	1.3	6	10
SPC15	8	0.9	15	1.7	6	10
SPC18	11.5	1.5	20	1.8	6	10
SPC20	14	2	27	2.8	6	5
SPC25	22	5	30	4	6	5
SPC30	32	8.3	35	10.5	6	5
SPC40	56	16.5	60	22.5	8	5
SPC60	127	52	75	52.4	8	1
SPC90	286	135	85	152.8	8	1

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m.

Structure

◇ Consisting of replacement suction cup and locking fitting

◇ Plug-in fitting for suction cups of diameter 5mm-25mm

◇ Fitting with hexagon socket mounting hole for suction cups of

diameter 30mm-60mm

◇ Vertical vacuum port, pagoda fitting for connection, male thread

for mounting

◇ Lateral vacuum port, pagoda fitting for connection, female thread

for mounting

◇ Please refer to page 125 for suction cup selection

Model	Vacuum port direction Vertical-Pagoda fitting	Lateral-Pagoda fitting
SPC3□	SPC3□-B6-M8M	SPC3□-LB6-M4F
SPC5□	SPC5□-B6-M8M	SPC5□-LB6-M4F
SPC7□	SPC7□-B6-M8M	SPC7□-LB6-M4F
SPC10□	SPC10□-B6-M8M	SPC10□-LB6-M4F
SPC12□	SPC12□-B6-M8M	SPC12□-LB6-M4F
SPC15□	SPC15□-B6-M8M	SPC15□-LB6-M4F
SPC18□	SPC18□-B6-M8M	SPC18□-LB6-M4F
SPC20□	SPC20□-B6-M8M	SPC20□-LB6-M4F
SPC25□	SPC25□-B6-M8M	SPC25□-LB6-M4F
SPC30□	SPC30□-B6-M10M	SPC30□-LB6-M6F
SPC40□	SPC40□-B6-M10M	SPC40□-LB6-M6F
SPC60□	SPC60□-B6-M10M	SPC60□-LB6-M6F
