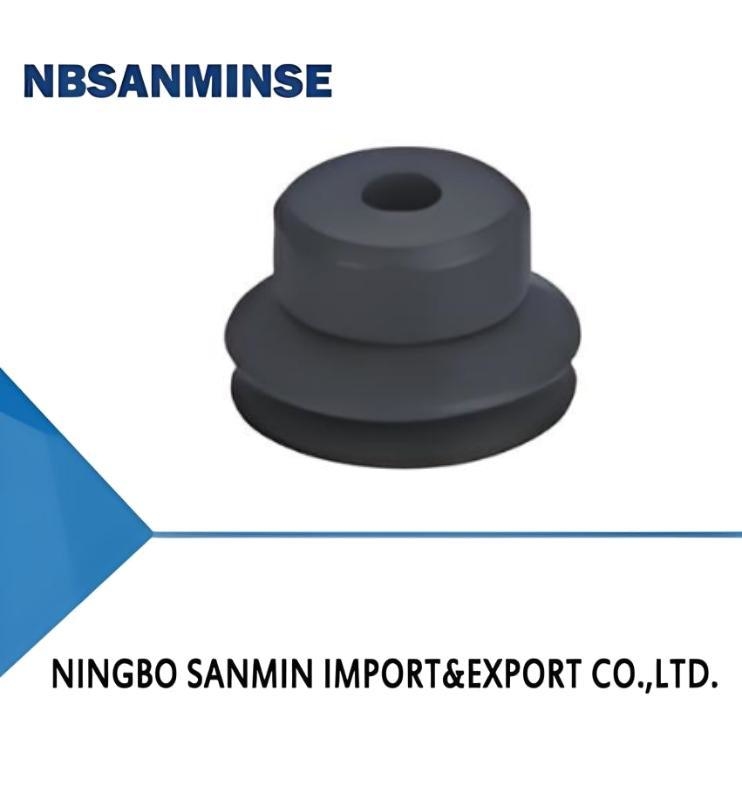

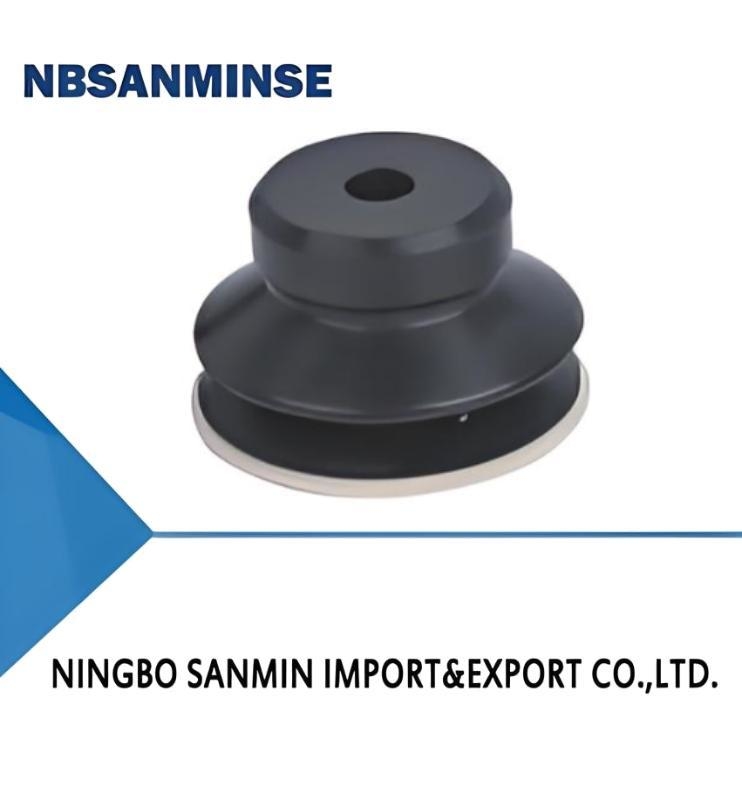

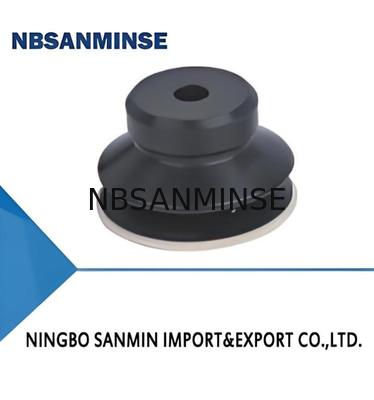

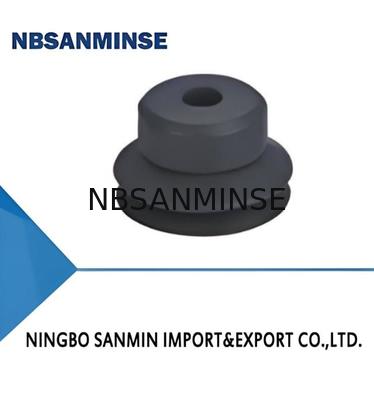

SPJ Series Bellows Suction Cup

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SPJ4

Detail Information
Diameter:	4 - φ4mm	Material & Hardness:	N- NBR
Connection Thread:	Nil - Suction Cup Only	Pull-out Force N:	0.6
Recommended Hose Dia. Mm:	4

Product Description

Features

◇ 1.5 bellows

◇ Soft and tapered lips

◇ Mark free plug optional

◇ Available in various sizes

Advantages

◇ Compensate the height difference and good buffer when have

contact with workpieces

◇ Good sealing for handling of workpieces with uneven surface

◇ Available in various sizes

Applications

◇ Handling workpieces with uneven surface such as cartons, paper

board and sheet, workpieces with curved surface

◇ Handling fragile workpieces such as electronic components and

injection molding parts

◇ Suction cup with mark free plug is suitable for handling sensitive

electronic material or display screen. It is suitable for occasions with

high requirements for mark on adsorption surface

Structure

◇ 1.5 bellows, long compressed stroke

◇ Suction cups wtih diameter less than 50mm adopt split structure for easy

replacement

◇ One-piece structure for suction cup wtih diameter 60mm-80mm

Model	Pull-out force N	Inner volume cm³	MinCurve radius of workpiece mm	Weight g	Recommended hose dia. mm	MPQ pcs
SPJ4	0.6	<0.1	4	0.1	4	10
SPJ6	1.2	<0.1	6	0.2	4	10
SPJ8	2.2	<0.1	8	0.3	4	10
SPJ10	3.5	0.2	12	0.8	4	10
SPJ15	8	0.5	20	1.0	6	10
SPJ20	15	1.1	27	1.8	6	5
SPJ25	24	2.2	40	3.0	6	5
SPJ30	32	3	55	5.3	6	5
SPJ35	43	4.5	65	8.0	6	5
SPJ40	60	6	80	10.5	6	1
SPJ50	92	11.7	95	21.0	8	1
SPJ60	127	20	125	35.6	8	1
SPJ70	173	30	150	52.5	8	1
SPJ80	226	40	140	63.0	8	1

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m.

Structure

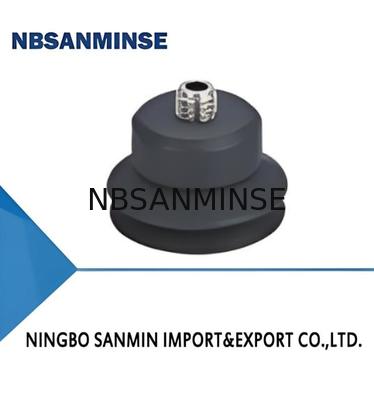

◇ Consisting of replacement suction cup and locking fitting

◇ Plug-in fitting for suction cups

◇ Vertical vacuum port, pagoda fitting or one-touch fitting for connection,

male thread for mounting

◇ Lateral vacuum port, pagoda fitting for connection, female thread for

mounting

◇ Please refer to page 131 for suction cup selection

Model	Vacuum port direction Vertical-Pagoda fitting	Lateral-Pagoda fiting
SPJ6□	SPJ6□-B6-M8M	SPJ6□-LB6-M4F
SPJ8□	SPJ8□-B6-M8M	SPJ8□-LB6-M4F
SPJ10□	SPJ10□-B6-M8M	SPJ10□-LB6-M4F
SPJ15□	SPJ15□-B6-M8M	SPJ15□-LB6-M4F
SPJ20□	SPJ20□-B6-M8M	SPJ20□-LB6-M4F
SPJ25□	SPJ25□-B6-M10M	SPJ25□-LB6-M6F
SPJ30□	SP30□-B6-M10M	SPJ30□-LB6-M6F
SPJ35□	SP35□-B6-M10M	SPJ35□-LB6-M6F
SPJ40□	SP40□-B6-M10M	SPJ40□-LB6-M6F
SPJ50□	SPJ50□-B6-M10M	SPJ50□-LB6-M6F
SPJ60□	SPJ60□-R1-M16M	SPJ60□-LR1-M8F
SPJ70□	SPJ70□-R1-M16M	SPJ70□-LR1-M8F
SPJ80□	SPJ80□-R1-M16M	SPJ80□-LR1-M8F

Structure

◇ Consisting of replacement suction cup(3) and level compensator

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), male thread for mounting

Model	Vacuum port direction Vertical-Pagoda fitting		Lateral-Pagoda fitting
SPJ6□	SPJ6□-FE3B6-M9	SPJ6□-FE10B6-M9	SPJ6□-FE3LB6-M9	SPJ6□-FE10LB6-M9
SPJ8□	SPJB□-FE3B6-M9	SPJB□-FE10B6-M9	SPJ8□-FE3LB6-M9	SPJ8□-FE10LB6-M9
SPJ10□	SPJi0□-FE4B6-M11	SPJ10□-FE10B6-M11	SPJ10□-FE4LB6-M11	SPJ10□-FE10LB6-M11
SPJ15□	SPJ15□-FE4B6-M11	SPJ15□-FE10B6-M11	SPJ15□-FE4LB6-M11	SPJ15□-FE10LB6-M11
SPJ20□	SPJ20□-FE4B6-M11	SPJ20□-FE10B6-M11	SPJ20□-FE4LB6-M11	SPJ20□-FE10LB6-M11
SPJ25□	SPJ25□-FE6B6-M14	SPJ25□-FE15B6-M14	SPJ25□-FE6LB6-M14	SPJ25□-FE15LB6-M14
SPJ30□	SPJ30□-FE6B6-M14	SPJ30□-FE15B6-M14	SPJ30□-FE6LB6-M14	SPJ30□-FE15LB6-M14
SPJ35□	SPJ35□-FE6B6-M14	SPJ35□-FE15B6-M14	SPJ35□-FE6LB6-M14	SPJ35□-FE15LB6-M14
SPJ40□	SPJ40□-FE6B6-M14	SPJ40□-FE15B6-M14	SPJ40□-FE6LB6-M14	SPJ40□-FE15LB6-M14
SPJ50□	SPJ50□-FE6B6-M14	SPJ50□-FE15B6-M14	SPJ50□-FE6LB6-M14	SPJ50□-FE15LB6-M14
SPJ60□	-		SPJ60□-FE10LR1-M16	SPJ60□-FE30LB6-M16
SPJ70□	-		SPJ70□-FE10LR1-M16	SPJ7O□-FE30LB6-M16
SPJ80□	-		SPJ80□-FE10LR1-M16	SPJB0□-FE30LB6-M16
