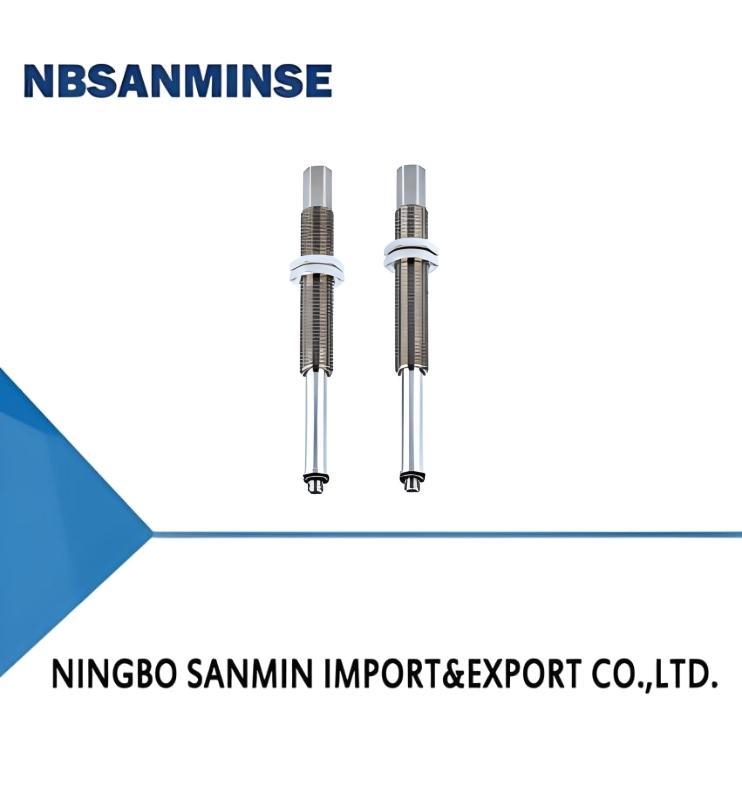

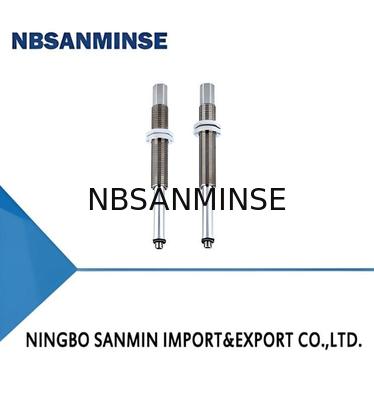

PSPE Series Small and Light Level Compensator

Contact Now

PSPE Series Small and Light Level Compensator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	PSPE-I10M5M-M10

Detail Information
Buffer Style:	I - Built-in Spring	Rotary Type:	Nil - Vertical Rotating
Vacuum Port Connection:	Nil - Default	Suction Cup Connection:	M5F - M5×0.8 Female Thread
Mountingthread:	M8 - M8×1

Product Description

Features

◇ Level compensator with built-in spring, small elasticity

◇ Small size and light weight

◇ The guide rod is made of stainless steel

◇ Oilless wear-resistant bushing is built in the guide sleeve

Advantages

◇ Avoid pollution and external mechanical force, flexible contact

◇ Suitable for fast handling in small space

◇ Resistant to environment, corrosion and abrasion

◇ Improve the life time of the products and reduce the noise of

the products

◇ Ensure the accurate positioning of the workpieces

Applications

◇ Suitable for electronic industry

◇ Suitable for handling light and small workpieces with flexible

contact

◇ Suitable for handling workpieces with height difference

◇ The non-rotating level compensator is suitable for the working

condition requiring accurate positioning

Structure

◇ (1) Vacuum generator connection

◇ (2) Guide sleeve

◇ (3) Mounting nut

◇ (4) Guide rod

◇ (5) Suction cup connection

Selection-Vertical direction

Model/Connection thread
M5M	RM5M	M5F	MBM	MBF
PSPE-I10M5M-M10	PSPE-I10RM5M-M10	PSPE-I10M5F-M10	PSPE-I10MBM-M14	PSPE-I10M8F-M14
PSPE-I20M5M-M10	PSPE-I20RM5M-M10	PSPE-I20M5F-M10	PSPE-I20MBM-M14	PSPE-I20M8F-M14
PSPE-I30M5M-M10	PSPE-I30RM5M-M10	PSPE-I30M5F-M10	PSPE-I30MBM-M14	PSPE-I30M8F-M14
PSPE-I40M5M-M10	PSPE-I40RM5M-M10	PSPE-I40M5F-M10	-	-
PSPE-I50M5M-M10	PSPE-I50RM5M-M10	PSPE-I50M5F-M10	PSPE-I50MBM-M14	PSPE-I50M8F-M14

Selection-Lateral direction

Model/Connection thread
LA4M5M	LA6M5M	BA4M5M	BA6M5M
PSPE-I6LA4M5M-M8	PSPE-I6LA6M5M-M8	PSPE-I6BA4M5M-M8	PSPE-I6BA6M5M-MB
PSPE-I10LA4M5M-M8	PSPE-I10LA6M5M-MB	PSPE-I10BA4M5M-MB	P5PE-I10BA6M5M-M8
PSPE-I15LA4M5M-M8	PSPE-I15LA6M5M-MB	PSPE-I15BA4M5M-MB	PSPE-I15BA6M5M-M8
PSPE-I25LA4M5M-M8	PSPE-I25LA6M5M-MB	PSPE-I25BA4M5M-MB	PSPE-I25BA6M5M-M8
PSPE-I10LA4M5M-M10	PSPE-I10LA6M5M-M10	PSPE-I10BA4M5M-M10	PSPE-I10BA6M5M-M10
PSPE-I20LA4M5M-M10	PSPE-I20LA6M5M-M10	PSPE-I20BA4M5M-M10	PSPE-I20BA6M5M-M10
PSPE-I30LA4M5M-M10	PSPE-I30LA6M5M-M10	PSPE-I30BA4M5M-M10	PSPE-I30BA6M5M-M10
PSPE-I40LA4M5M-M10	PSPE-I40LA6M5M-M10	PSPE-I40BA4M5M-M10	PSPE-I40BA6M5M-M10
PSPE-I50LA4M5M-M10	PSPE-I50LA6M5M-M10	PSPE-I50BA4M5M-M10	PSPE-I50BA6M5M-M10

M5F-Vertical female thread connection
