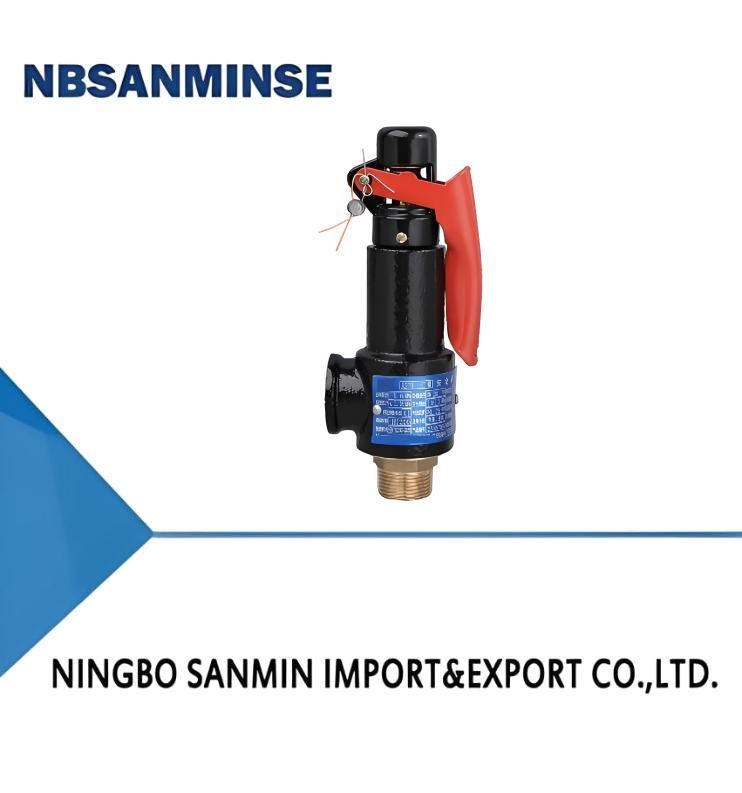

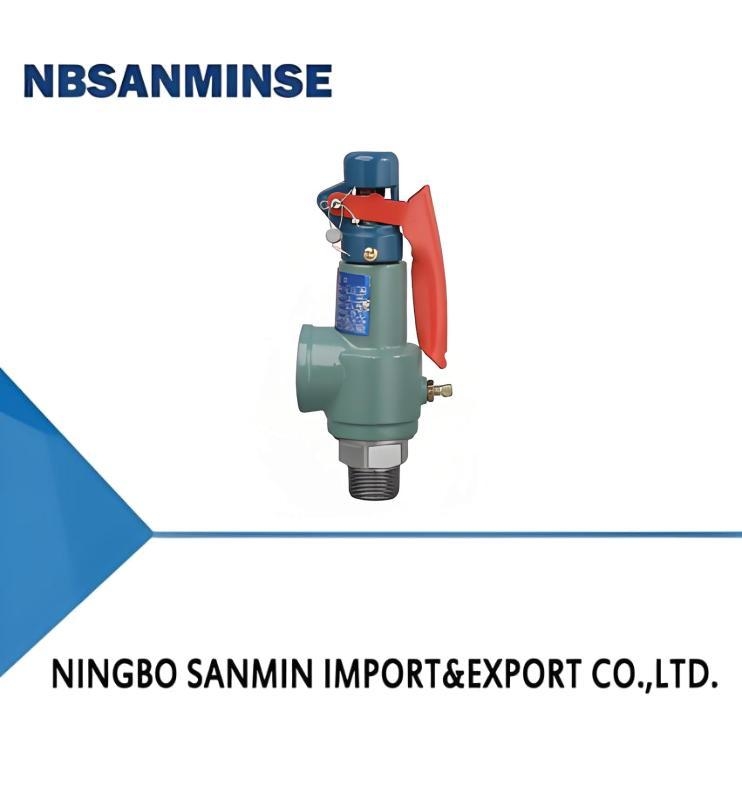

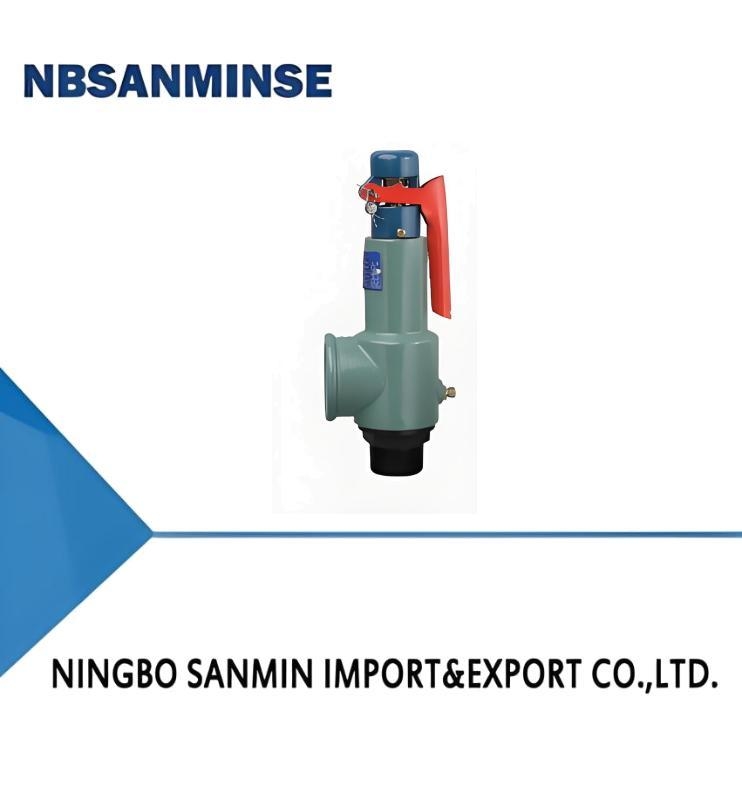

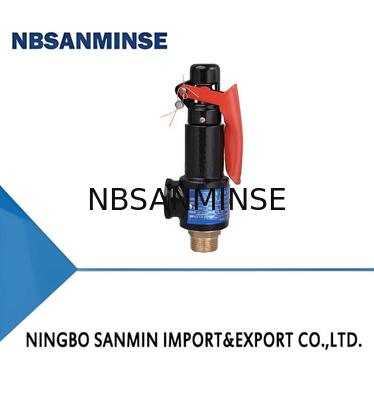

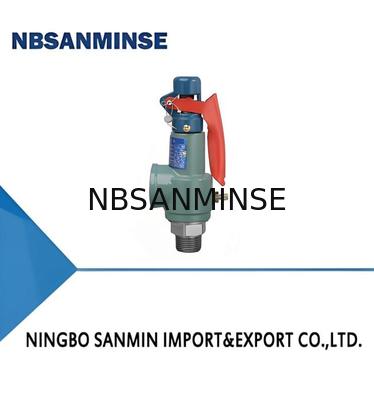

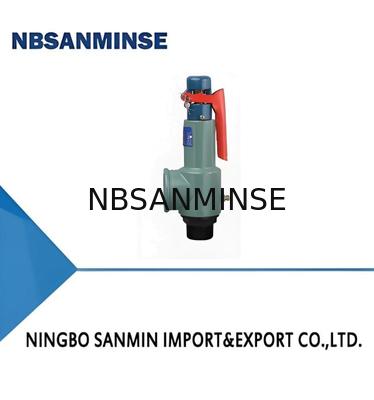

N Type Cast Iron Spring Safety Valve 35bar Wrench

Suitable for gas, liquid and steam with operating temperature ≤250℃. Used as overpressure protection device for medium equipment or pipes.

Manufacturing standard: GB/T12243-2021 "Spring loaded safety valves"

Suitable for equipment or pipelines with liquid and other medium operating temperature ≤200℃, used as overpressure protection device.

Manufacturing standard: GB/T12243-2021 "Spring loaded safety valves"

A safety valve is a fail-safe device that automatically releases fluid from a system, such as a pressure vessel or boiler, when its pressure or temperature exceeds a preset limit to prevent damage or explosion. It acts as a final line of defence, protecting equipment, property, and lives by discharging excess fluid and then automatically reclosing once normal operating conditions are restored.

How a Safety Valve Works
  Receiving Pressure: The valve's nozzle receives high pressure from the system's inlet.
  Opening: When the system pressure exceeds the set point, a disc is forced open, allowing the excess fluid (like steam or gas) to discharge.
  Closing: As the pressure decreases to a safe level, the spring or other mechanical force closes the disc, stopping the flow of fluid.
Key Characteristics
  Fail-Safe: It is designed to operate automatically without external power.
  Protective Device: Its primary purpose is to prevent overpressure and potential catastrophic failures.
  Last Line of Defence: Safety valves are often the final safety measure in a system, ensuring safety under extreme conditions.
  Automatic Reset: After relieving the excess pressure, the valve recloses to the normal operating state.
Why They Are Necessary
  Overpressure Prevention: Systems can experience dangerous pressure increases due to various reasons, such as equipment malfunctions or process upsets.
  Equipment Protection: Safety valves safeguard pressure vessels, boilers, and other systems from damage or explosive failure.
  Personnel and Property Safety: By preventing overpressure, they protect the lives of people in and around the facility and prevent damage to infrastructure
