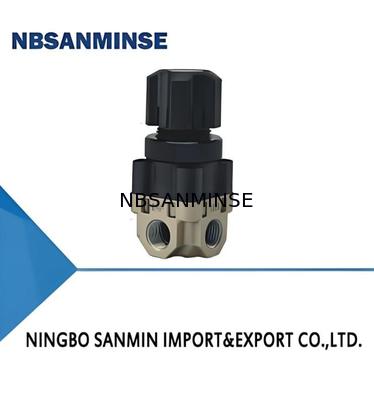

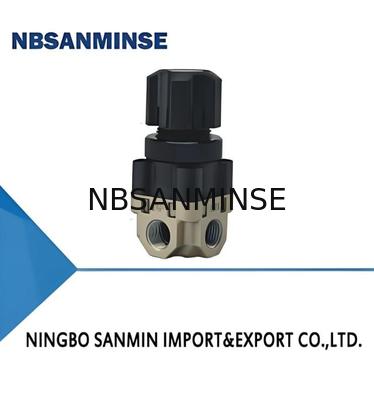

ARX20 Series Compact Regulator with 0.05～0.85 MPa Pressure Range and Aluminum Body for Pneumatic Tools

Precautions

①Please confirm the set pressure range. Exceeding the set pressure range will cause damage or malfunction of the outlet-side device, so a safety device must be installed.

②Residual pressure treatment when removing the inlet-side pressure: When the outlet pressure is in the low-pressure setting state, the removal of the outlet pressure (residual pressure treatment) may not be achievable when relieving the inlet pressure. If it is necessary to remove the outlet pressure, please set up a residual pressure treatment circuit.

③For setting the correct pressure:

  Set the pressure by increasing it, and lock the handwheel after the pressure is set.

The air inlet is marked with "SUP". Please confirm before piping; reverse connection is the cause of malfunction.
