| VP3 |
1 |
4 |
5 |
□ |
04 |
1 |
G |
A |
□ |
□ |

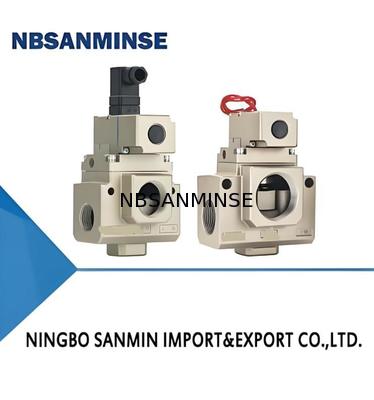

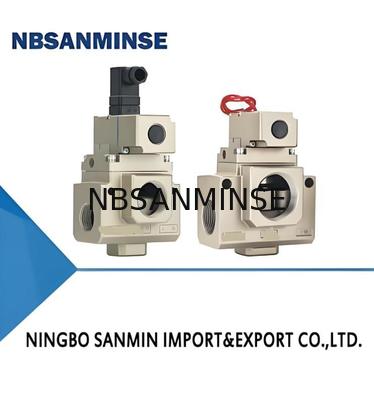

| 3portsolenoid valve |
|
Body size |
|
Valve option |
|
coil rated voltage |
Elctrical entry |
function |
Pilot option |
Thread type |
| 4 |
1/2 |
Nil:For general |
3 |
AC110V 50/60Hz |
Grommet |
A:N.C. |
Nil:Standard (Internal pilot) |
F:G |
| 6 |
1 |
V:For vacuum/low pressure |
4 |
AC220V 50/60Hz |
Din terminal |
B:N.O. |
1:Extermal pilot |
N:NPT |
| 8 |
1 1/2 |
|
5 |
DC24V |
Din terminal with light/surge voltage suppressor |
|
|
T:NPTF |
|
|
6 |
DC12V |
|
|
|
|
Instructions for Use
①Please install an air filter.
Install the air filter close to the upstream of the valve.
Please select an air filter with a filtration precision of 5μm or less.
②Please set up an aftercooler, air dryer, water collection tank, etc.
Compressed air containing a large amount of condensed water will cause malfunction of valves and other pneumatic equipment. Therefore, please take measures such as installing an aftercooler, air dryer, and water collection tank.
③If a large amount of carbon powder is produced, please install an oil mist separator at the upstream position of the valve to remove the carbon powder.
If a large amount of carbon powder is generated from the air compressor, the carbon powder will adhere to the inside of the valve, leading to malfunction.
④Regarding polarity
This solenoid valve has no +/- polarity.
⑤Applying voltage
When making electrical connections to the solenoid valve, please do not get the applied voltage wrong. Otherwise, it may cause malfunction or coil burnout.
⑥Low-frequency use
To prevent malfunction, switch the valve once every 30 days. (Please note the air source.)
⑦Manual operation
If operated manually, the connected device will start.
Please confirm safety before proceeding with the operation.
Operating Environment
①Do not use in environments with corrosive gases, chemicals, seawater, water, or water vapor, or in places where the aforementioned substances adhere.
②Do not use in environments with flammable gases or explosive gases; otherwise, it may cause fire or explosion. This product does not have an explosion-proof structure.
③Do not use in places where vibration or impact may occur.
④When exposed to sunlight, protection such as a protective cover should be used.
⑤If there is a heat source nearby, heat insulation measures should be taken.
⑥If in a place where water droplets, oil, or spatter generated during welding adhere, appropriate protective measures should be taken.
⑦If the solenoid valve is installed in a control box, appropriate heat dissipation measures should be taken to ensure that the valve temperature remains within the specified range.
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
