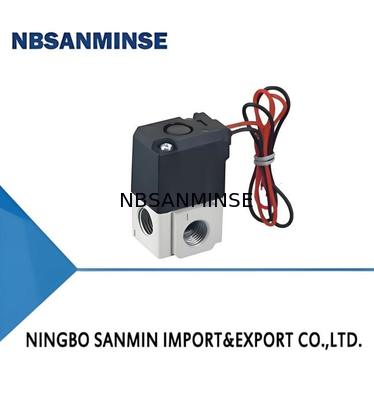

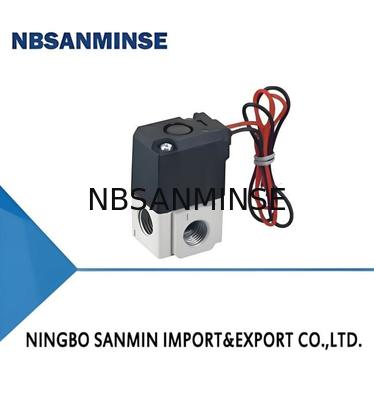

VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve

VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve
VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve
VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve

Large Image :  VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: VT307-5 G1-01
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve

Description
Material: Aluminum Rated Volage: DC24V
Pressure: 1.0MPA Media: Gas,Water,Air,oil,steam
Connection: Thread(NPT,Flange End,BSP,BSPT) Application: Industrial,Automation Equipment
Highlight:

3 port solenoid valve

,

direct operated poppet valve

,

pneumatic solenoid valve with warranty

VT307 Series 3 Port DC24V 1.0MPA Direct Operated Poppet Type Pneumatic Solenoid Valve 0


VT307 □ 5 G □ 1 01 □ □
Body type Valve option Rated voltage Electrical entry Light/Surge voltage suppressor
Port size Thread type Bracket
T Body ported Nil Standard type 1 AC110V 50/60Hz Grommet G:300 mm lead wire Nil:None

Nil:Without port

(For manifold)

 Nil:Rc Nil:None
O For manifold V Vacuum specification type

2

 AC220V 50/60Hz H:600 mm lead wire

with light/surge voltage suppressor

(DIN terminal type only)

 01:1/8(6A) F:G F:With bracket


3 AC110V 50/60Hz DIN terminail D: With connector
02:1/4(8A) N:NPT
4 AC220V 50/60Hz DO:Without connector
T:NPTF
5 DC24V


6 DC12V


Technical Specifications

Switching Method
Direct-acting 2-position single coil
Fluid Used
Air
Operating Pressure Range
—
Ambient Temperature and Fluid Temperature in Use
-10~50℃ (Not frozen)
Response Time
≤20ms (at 0.5MPa)
Maximum Operating Frequency
10Hz
Lubrication
Not required (If lubricated, use Turbine Oil 1 ISO VG32)
Manual Operation
Non-locking push type
Mounting Method
Free
Shock Resistance / Vibration Resistance
150 / 50 m/s²
Protection Class
Dust-proof
Lead Wire Exit Method
Direct lead-out, DIN socket type
Rated Coil Voltage (V) AC (50/60Hz) —
Rated Coil Voltage (V) DC —
Allowable Voltage Fluctuation
-15% ~ +10% of rated voltage
Apparent Power AC - Starting 12.7VA (50Hz), 10.7VA (60Hz)
Apparent Power AC - Excitation 7.6VA (50Hz), 5.4VA (60Hz)
Power Consumption DC Without indicator light: 4W; With indicator light: 4.2W
