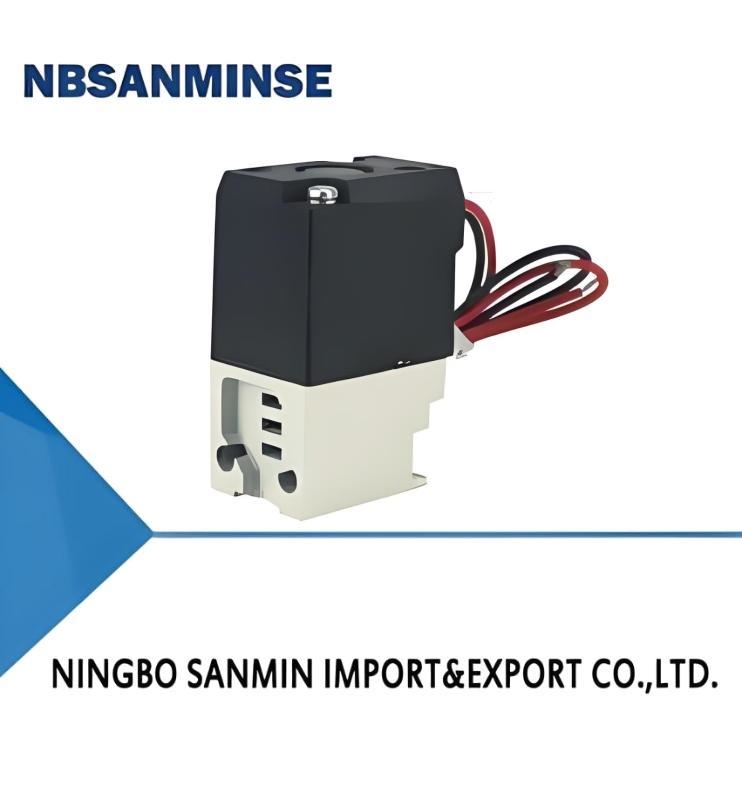

V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold)

V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold)
V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold)
V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold) V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold)

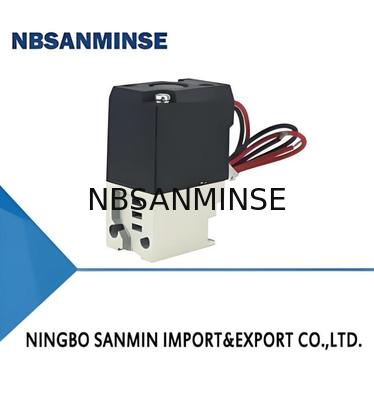

Large Image :  V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold)

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: VO307 -5G 1
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold)

Description
Material: Aluminum Rated Volage: DC24V
Pressure: 1.0MPA Working Temp: 5~50°C
Connection: Thread(NPT,Flange End,BSP,BSPT) Temp Of Media: -5~60℃
Application: General,industrial,
Highlight:

3 port solenoid valve for manifold

,

direct operated poppet valve

,

pneumatic solenoid valve with warranty

V0307 Series 3 Port Solenoid Valve/Direct Operated Poppet Type (For manifold) 0


Standard Specifications Description
Switching Method Direct-acting 2-position single coil
Fluid Used Air
Operating Pressure Range 0~1MPa (High-pressure type); 0~0.7MPa (Standard type)
Ambient Temperature and Fluid Temperature in Use -10~50℃ (Not frozen)
Response Time ⁽¹⁾ ≤20ms (at 0.5MPa)
Maximum Operating Frequency 10Hz
Lubrication Not required (If lubricated, use Turbine Oil 1 ISO VG32)
Manual Operation Non-locking push type
Mounting Method Free
Shock Resistance / Vibration Resistance ⁽²⁾ 150/50 m/s²
Protection Class Dust-proof
Lead Wire Exit Method Direct lead-out, DIN socket type
Rated Coil Voltage (V) - AC (50/60Hz): 100, 200, 110*, 220*, 240*

- DC: 24, 12*
Allowable Voltage Fluctuation -15% ~ +10% of rated voltage
Apparent Power ⁽³⁾⁽⁴⁾ - AC (Starting): 12VA (50Hz), 10VA (60Hz)

- AC (Excitation): 7.6VA (50Hz), 5.4VA (60Hz)
Power Consumption ⁽³⁾⁽⁴⁾ - DC: Without indicator light: 4W; With indicator light: 4.2W
Indicator Light & Overvoltage Protection Circuit (Only for DIN socket type) - DC: Varistor, LED

- AC: Diode, LED
