3 Port Solenoid Valve Direct Operated with AC100V 50/60Hz and 1.0MPA Pressure for Industrial Applications

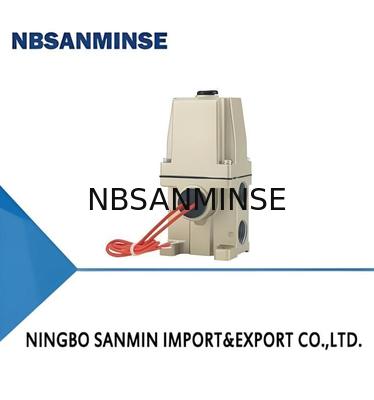

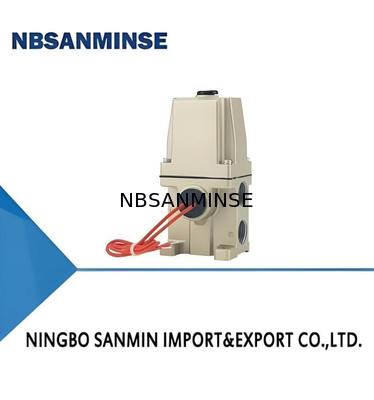

Large Image : 3 Port Solenoid Valve Direct Operated with AC100V 50/60Hz and 1.0MPA Pressure for Industrial Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	VS3135-021

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

3 Port Solenoid Valve Direct Operated with AC100V 50/60Hz and 1.0MPA Pressure for Industrial Applications

Description

Material:	Aluminum	Rated Volage:	AC100V 50/60Hz
Ptressure:	1.0MPA	Media:	Gas,Water,Air,oil,steam
Body Material:	Stainless,brass,hard Anodized	Connection:	Thread(NPT,Flange End,BSP,BSPT)
Highlight:	VS3135 Series 3 port solenoid valve , Direct operated pneumatic solenoid valve , 3 port solenoid valve with warranty

3 Port Solenoid Valve Direct Operated with AC100V 50/60Hz and 1.0MPA Pressure for Industrial Applications 0

VS31	3	5	02	1		□		□
	Body size		Port size	Coil rated voltage		Electrical entry		Thread type
	3:3/8 Standard		02:1/4	1	AC100V 50/60Hz	Ni	Direct outgoing type	Ni:Rc
	4:1/2 Standard		03:3/8	2	AC200V 50/60Hz	G	Conduit wiring socket type	F:G
			04:1/2	3	AC110V 50/60Hz			N:NPT
				4	AC220V 50/60Hz			T:NPTF
				5	DC24V
				9	other

British Designation	Domestic Designation	Nominal Diameter	External Thread - Outer Diameter (mm)	Internal Thread - Inner Diameter (mm)
G1/8	1 Fen	DN6	9.5±0.2	8.8±0.2
G1/4	2 Fen	DN8	12.5±0.3	11.5±0.3
G3/8	3 Fen	DN10	16.2±0.3	15.3±0.3
G1/2	4 Fen	DN15	20.3±0.3	19.5±0.3
G3/4	6 Fen	DN20	25.7±0.5	24±0.5
G1	1 Cun	DN25	32.5±0.5	30.5±0.5
G1-1/4	1.2 Cun	DN32	41.3±0.5	39.5±0.5
G1-1/2	1.5 Cun	DN40	47.8±0.5	46.6±0.5
G2	2 Cun	DN50	59.6±0.5	56.6±0.5
