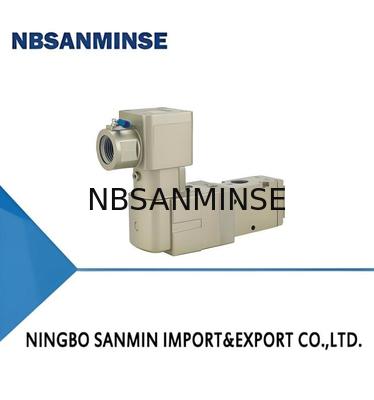

AC100V Pilot Operated Explosion-proof Solenoid Valve for Medium Temperature Industrial Applications

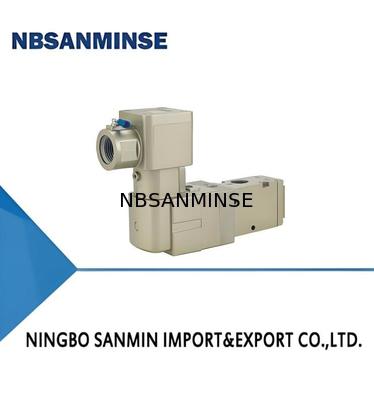

Large Image : AC100V Pilot Operated Explosion-proof Solenoid Valve for Medium Temperature Industrial Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	50-VPE542-1 TD-02A

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

AC100V Pilot Operated Explosion-proof Solenoid Valve for Medium Temperature Industrial Applications

Description

Material:	Aluminum	Rated Volage:	AC100V
Pressure:	1.0MPA	Temp Of Media:	5~60℃
Media:	Gas,Water,Air,oil,steam
Highlight:	explosion-proof solenoid valve 50-VPE , pilot operated solenoid valve explosion-proof , pneumatic solenoid valve with warranty

AC100V Pilot Operated Explosion-proof Solenoid Valve for Medium Temperature Industrial Applications 0

50	VPE	5	4	2	□		1
Explosion-proof					Body option		Rated voltage
					Nil	internal pilot	1	AC100V
					R	Extemal pilot	2	AC200V
							3	AC110V
							4	AC220V
							5	DC24V
							6	DC12V
							7	DC240V
							9	other

T		D		02			A		□
External wire connection		Manual override		Portsize			Symbol		option
T	Wire conduit pressure resistant threaded combination type	Nil	Unlock button type	symbol	Port size	Applicable series	A	Normally closed	Nil	None
E1	Pressure resistant sealing ring type (Cable outer diameter Φ7-Φ 10)	D	Push and rotate locking type with work	02	Rc1/4	50-VPE500	B	Normally open	F	With bracket
E2	Pressure resistant sealing ring type (Cable outer diameter Φ 10.1-4 11.5)			03	Rc3/8	50-VPE500·700
				04	Rc1/2	50-VPE700
