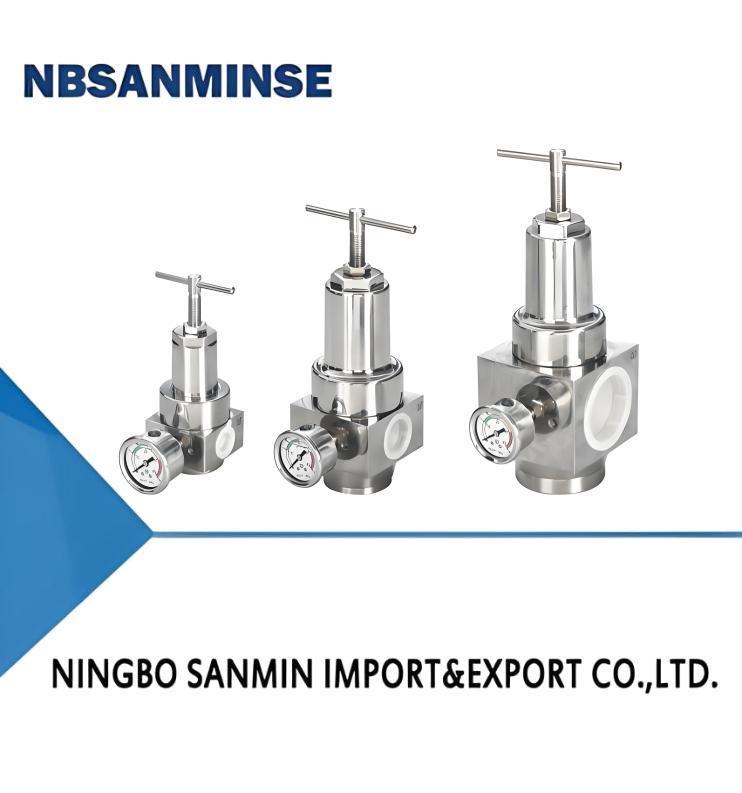

QTYH Series stainless steel pressure reducing valve

Minimum Order Quantity :	10PCS	Price :	Negotiation
Packaging Details :	Box	Delivery Time :	5-30days
Payment Terms :	L/C,T/T	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	ISO9001	Model Number:	QTYHB15N

Product Description

Product Description

model	QTYH-08	QTYH-10	QTYH-15	QTYH-20	QTYH-25	QTYH-32	QTYH-40	QTYH-50
Using fluids	compressed air
takeover caliber	G1/4	G3/8	G1/2	G3/4	G1	G13/8	G11/2	G2
Pressure regulating structure	piston-type
body material	Stainless steel SUS316
Pressure gauge material	Shell made of stainless steel SUS304, teeth made of stainless steel SUS316
Operating pressure	QTYHB:0.5-12kgf/cm2, QTYH:12-28kgf/cm2
Maximum intake pressure	60kgf/cm2
ambient temperature	-10-70°C
Accessory parts	Pressure gauge (0-40kg), plug
optional	Pressure gauge (0~40kg), pressure gauge (0~60kg)

QTYH	B	15	N
serial number	pressure	takeover caliber	Pipe mouth screw thread
Stainless steel pressure reducing valve	Blank: 12-28kgf/cm	08:G1/4;25:G1"	Blank: G
	B:0.5-12kgf/cm2	10:G3/8;32:G13/8	N:NPT
		15:G1/2";40:G11/2	R:Rc
		20:G3/4;50:G2

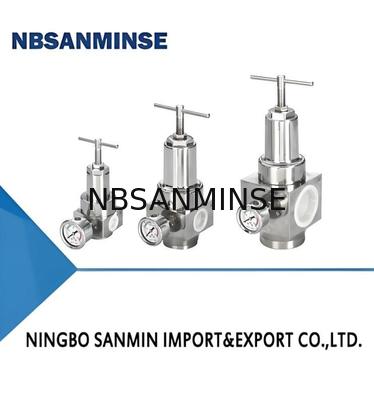

QTYH Series stainless steel pressure reducing valve 0

QTYH Series stainless steel pressure reducing valve 1
