VSP152145

Product Description

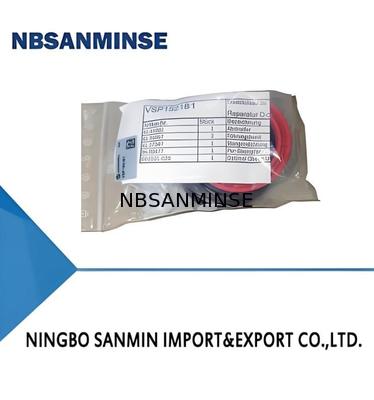

20551639	seal assembly	20602586	seal assembly	20551637	guidance

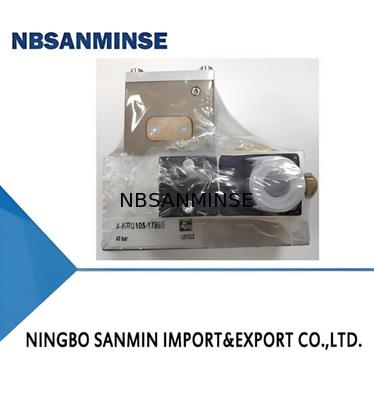

VSP152145		20591618	O-ring seal assembly	50376245	X-KRU105-17865

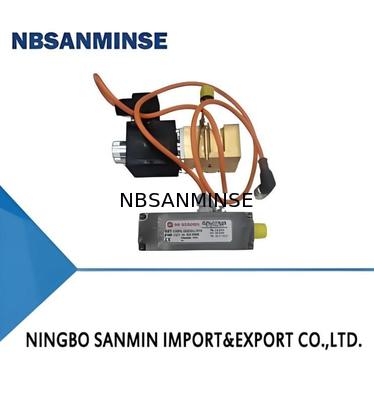

59.70060	pilot valve	59.70061	pilot valve	D466LG83NNL1919	high-pressure proportional valve
59.70051	pilot valve	59.70052	pilot valve	D366LG83NNL1722	proportional valve

Provide the power and pressure required for bottle blowing.

High-pressure air pump/air booster: generate high-pressure air (typically 25-40 bar) required for blow molding.

Low-pressure air pump: provide air source for pre-blowing (lower pressure to make the preform expand initially) and machine action.

Air storage tank: store high-pressure gas to ensure stable air pressure during blowing.

Precise pressure regulating valve: Precise control of gas pressure in different stages such as pre-blowing and high-pressure blowing.

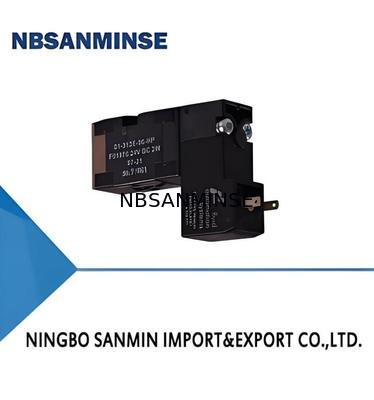

Solenoid valve: it controls the on-off and direction of the air circuit and is the core actuator of the automatic action.

Hydraulic pump station: provide power for the clamping mechanism(some models use pneumatic clamping, and there is no hydraulic system).Oil cylinder: open and close the die.

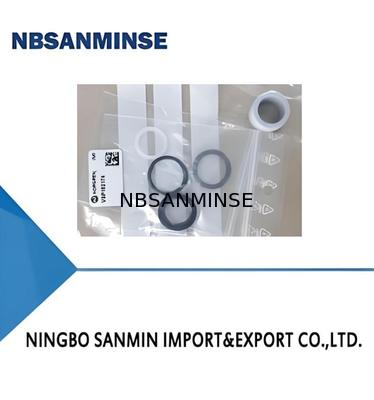

Seal ring/oil seal: it is located in the cylinder, oil cylinder, valve and other parts to prevent leakage of gas and hydraulic oil. It is a common vulnerable part.
