223.991.01

Product Description

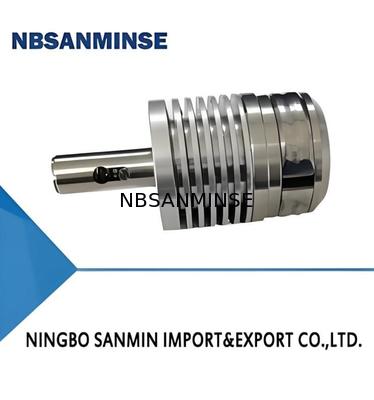

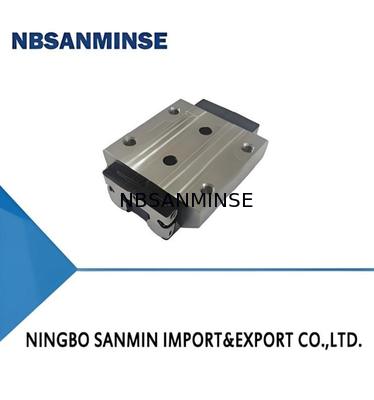

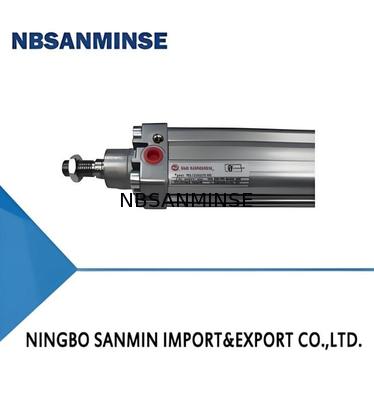

	Stretching Solenoid Valve		Slide Block		Stretching Cylinder

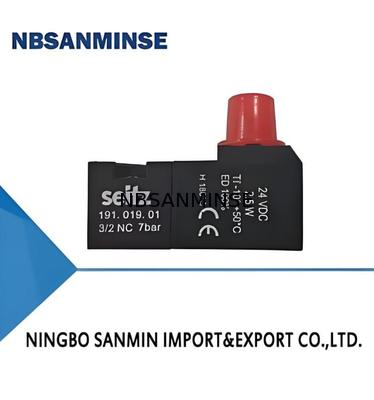

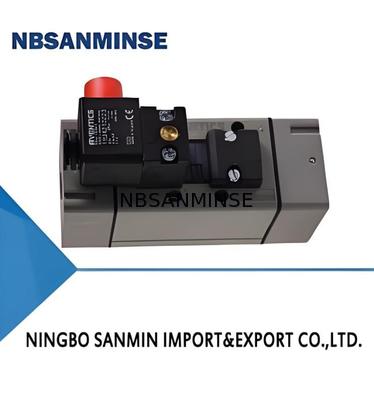

	High-Speed Stretching Solenoid Valve	223.991.01	223.991.01 Sealing Solenoid Valve	191.019.01	191.019.01 Pilot Valve
225.607.01	225.607.01 Pilot Valve	217.868.01	217.868.01 Pilot Valve		Stretching Solenoid Valve Coil (with pilot component)
	Mandrel Rod		Mandrel Bearing		Star Wheel   Guard Plate

Pressure control and generation unit (creating blowing conditions)
Different pressure levels are required for bottle blowing.

Booster pump/high pressure air compressor: this is the core of the bottle blower. It pressurizes ordinary compressed air

 (e.g. 6-8 bar) to the high pressure required for bottle blowing (typically 25-40 bar depending on the bottle and material).

High-pressure air storage tank: to store high-pressure air, ensure that a large amount of stable high-pressure air flow

 can be provided at the moment of blow molding, and avoid sudden pressure drop.

Precision Pressure Regulators:

Back pressure valve: used to control the back pressure when the mould is exhausted, which affects the bottle forming.

Multi-stage pressure regulating valve: used to precisely control the pressure of pre-blowing and high-pressure blowing.

 Low preblowing pressure (approx. 10-15 bar) for initial expansion of the preform; The final forming pressure is reached by high pressure blowing.
