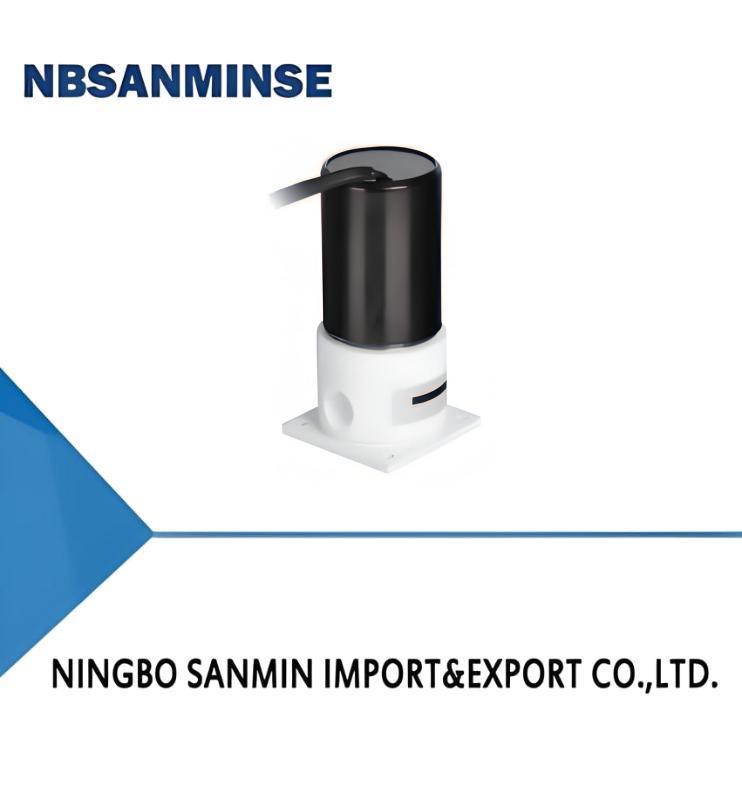

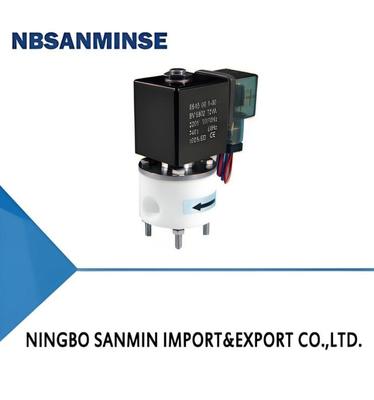

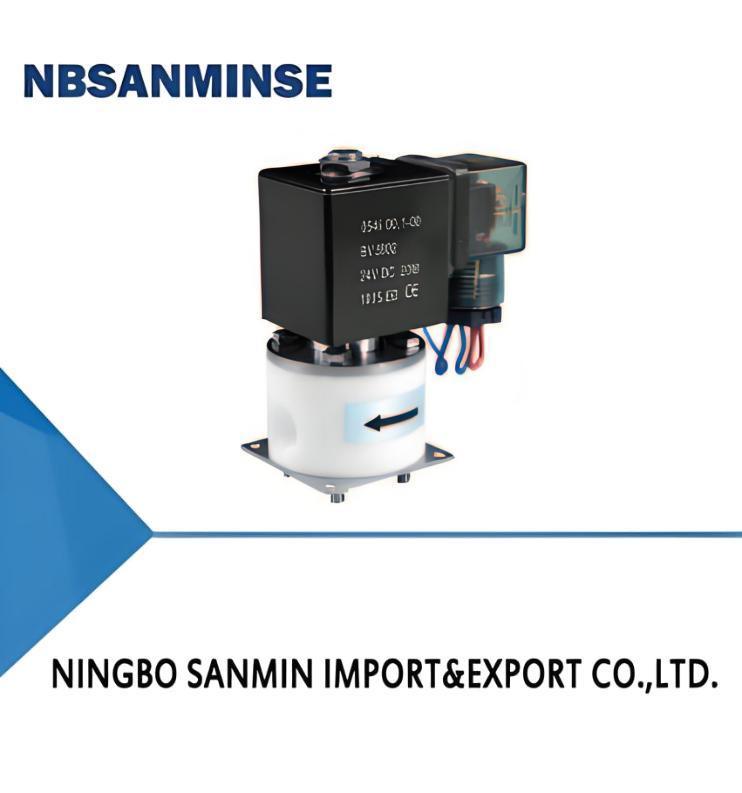

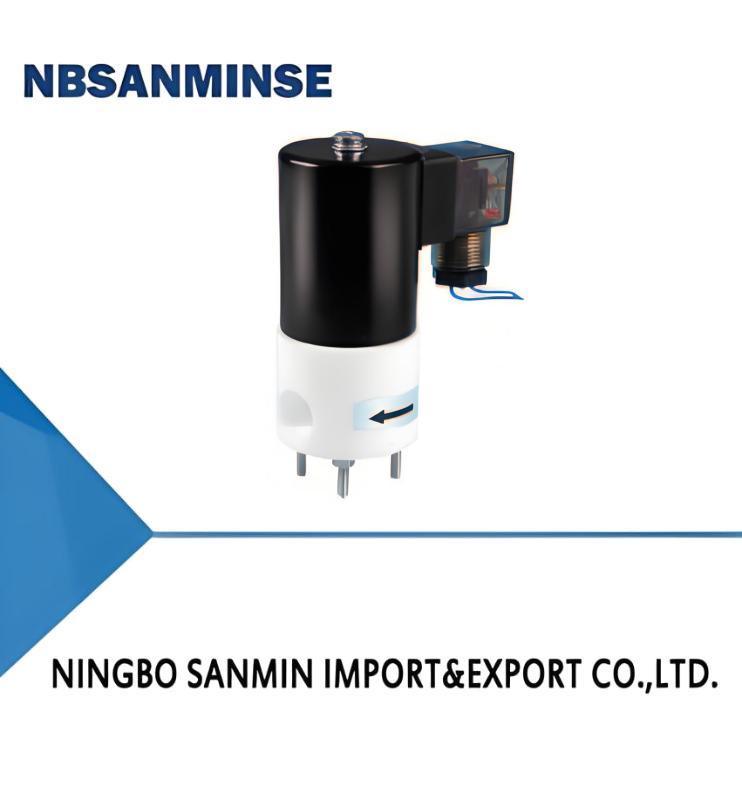

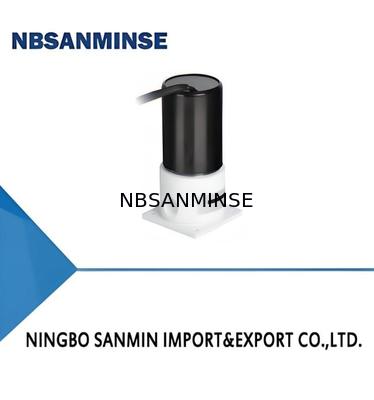

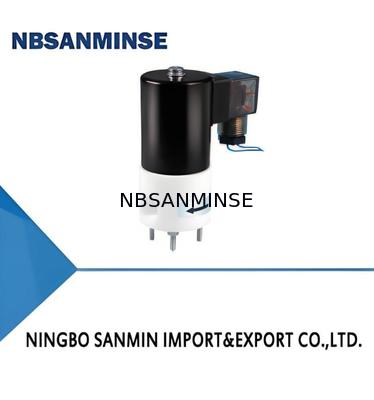

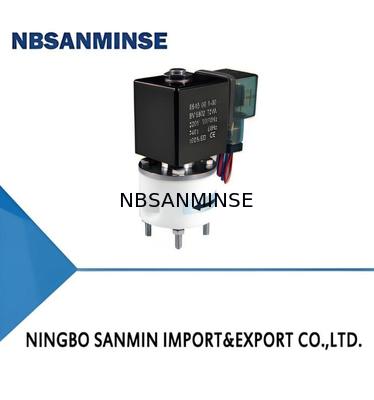

| model |
NHF3MS-A |
NHF(3~6)J1-A |
NHF(8~10)BZ-A |
| inside nominal diameter |
3 |
3~6 |
8,10 |
| Linkage |
M8×1,G1/8,M6,1/4UNF-28 |
M8×1,G1/8,G1/4 |
G3/8 |
| working pressure |
0～0 . 25MPa |
0～0 .4MPa |
0～0 .4MPa |
| Body material |
Polytetrafluoroethylene (PTFE) |
| Applicable medium |
Strong acids and alkalis,Organic solvents (as required) |
| ambient temperature |
Max.+60℃ |
| medium temperature |
5℃～150℃ |
| power |
AC220V |
6VA |
20VA |
15W |
| DC24/12V |
8W |
25W |
15W |
UPVC
PVC is formed by the polymerization of vinyl chloride monomer (VCM). When PVC is mixed with solid additives, the resulting product is called PVC, also known as rigid PVC. It has strong mechanical properties, wear resistance, flame retardancy, good dielectric properties, and excellent corrosion resistance, making it suitable for general corrosive fluids.
CPVC
CPVC is a high molecular material with higher chlorine content, produced by chlorinating PVC molecules again. Its average chlorine content reaches 74%. Due to the increased chlorine content, it demonstrates significantly better temperature resistance, acid/alkali resistance, and mechanical strength compared to UPVC. Additionally, it features a higher ignition point, low smoke emission, lower electrical conductivity, and superior wear resistance. These characteristics make it the optimal material for industrial pipe fittings and valves.
PTFE(polytetrafluoroethylene)
Polytetrafluoroethylene (PTFE), commonly known as "Plastic King", is a polymer compound formed through the polymerization of tetrafluoroethylene. It exhibits excellent chemical stability, corrosion resistance, sealing properties, high lubricity and non-stick characteristics, electrical insulation, and outstanding aging resistance. PTFE remains virtually unaffected by most chemical reagents. For instance, it maintains its weight and performance even when boiled in concentrated sulfuric acid (98%), nitric acid, hydrochloric acid, or even boiling water, while being insoluble in nearly all solvents.
| PTFE |
| UPVC CPVC ( tetrafluorohydrazine ) |
| sulphuric acid |
<20% |
R |
R |
R |
| 20%～60% |
N |
R |
R |
| 98% |
R |
R |
R |
| hydrochloric acid |
<15% |
R |
R |
R |
| >15% |
N |
R |
R |
| <15% |
R |
R |
R |
| hydrogen nitrate |
10%~30% |
N |
R |
R |
| >30% |
N |
N |
R |
| Alkali (hydrogen, oxygen Sodium chloride, etc.) |
<20% |
R |
R |
R |
| >20% |
N |
R |
R |
| fluid temperature |
Under 50℃ |
Under 95℃ |
Under 120℃ |
| solenoid |
valve versus electric valve |
Relatively |
|
| electromagnetic valve |
Quick opening and closing 0. 1 seconds action |
The control system is simple
Turn on when power is open,
turn off when power is cut
off (normally closed)
Turn off the power, open the power (normally on)
|
External dimensions
Sophisticated, lightweight
|
Can not withstand back pressure |
Sensitive to impurities |
high performance cost ratio |
|
motor-driven
ball check
|
Slow opening/closing
10 seconds to 30 seconds
|
he control system is more complex
Both valve opening and closing must be powered on
|
arge in size
Heavyweight
|
It can be two-way
pressure-bearing
|
Straight flow channel, general
Impurities can be
|
More expensive |
| 2W |
25 |
ZP |
-A |
| Specification code |
latus rectum |
material quality |
Design serial number |
| 2W:Two second-round pros |
|
uBV8 |
|
| Z |
K |
F |
AC220 |
| direct-acting:Z |
normally open :K |
flange :F |
voltage |
| Pilot: blank |
normally closed: blank |
live joint: H |
|
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
