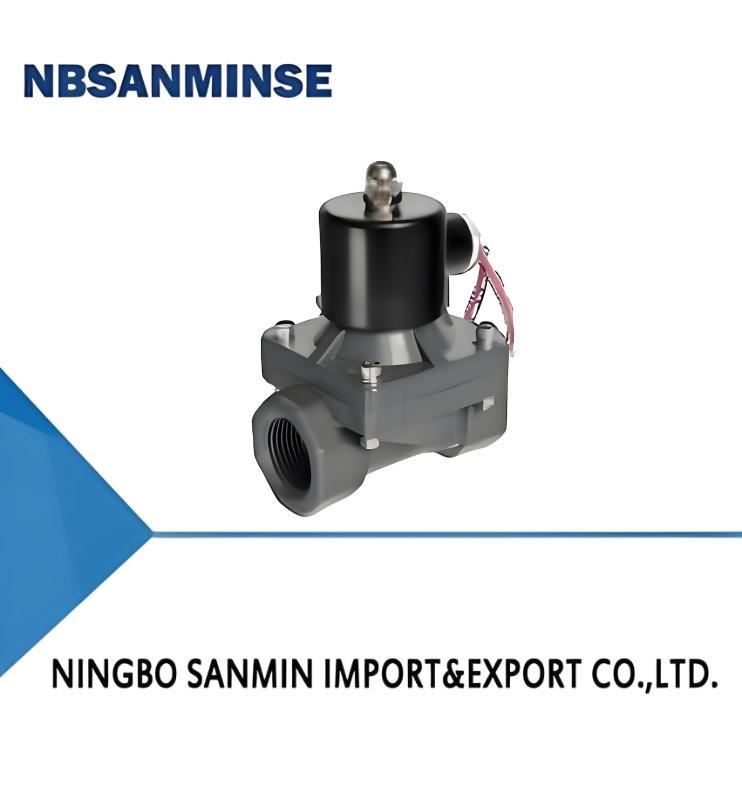

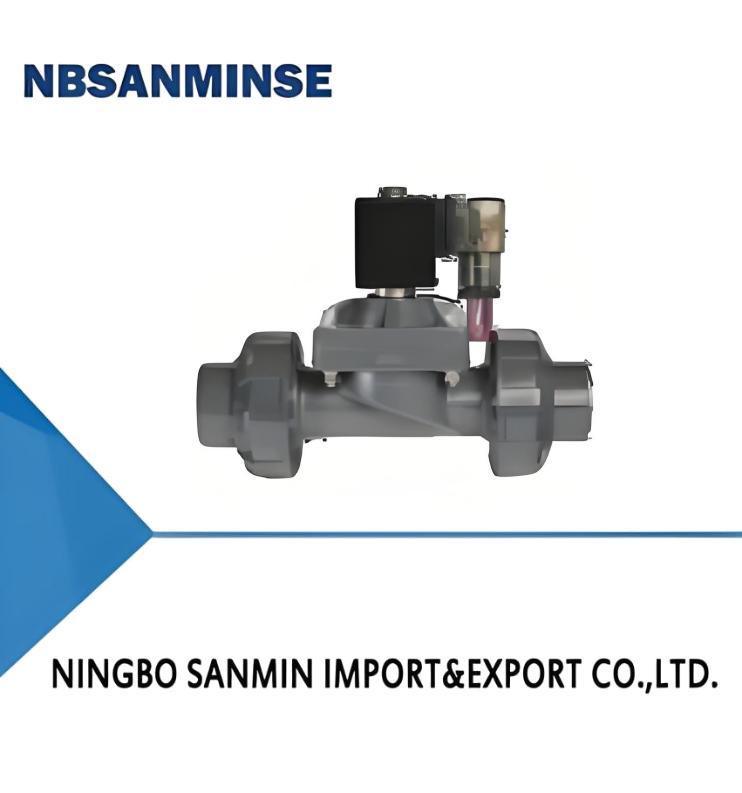

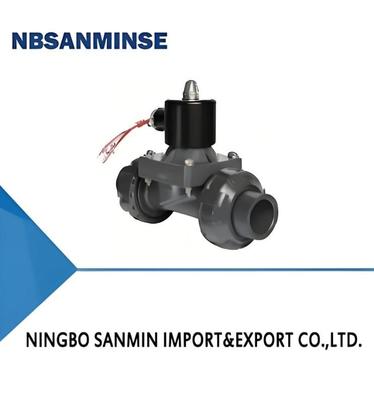

PVC Water Solenoid Valve with 0～1.0MPa Working Pressure 1.2MPa Compression Strength and -5～50℃ Working Temperature

Product features:

1. The main body material is injection molded plastic in line with drinking water standards, hygienic and safe

2. In addition to being compatible with plastic pipelines, the solenoid valve can also be connected to various metal pipelines

3, thread and quick connection form, installation is convenient

4. The coil is a standard part commonly used in water valves

UPVC

PVC is formed by the polymerization of vinyl chloride monomer (VCM). When PVC is mixed with solid additives, the resulting product is called PVC, also known as rigid PVC. It has strong mechanical properties, wear resistance, flame retardancy, good dielectric properties, and excellent corrosion resistance, making it suitable for general corrosive fluids.

CPVC

CPVC is a high molecular material with higher chlorine content, produced by chlorinating PVC molecules again. Its average chlorine content reaches 74%. Due to the increased chlorine content, it demonstrates significantly better temperature resistance, acid/alkali resistance, and mechanical strength compared to UPVC. Additionally, it features a higher ignition point, low smoke emission, lower electrical conductivity, and superior wear resistance. These characteristics make it the optimal material for industrial pipe fittings and valves.

PTFE(polytetrafluoroethylene)

Polytetrafluoroethylene (PTFE), commonly known as "Plastic King", is a polymer compound formed through the polymerization of tetrafluoroethylene. It exhibits excellent chemical stability, corrosion resistance, sealing properties, high lubricity and non-stick characteristics, electrical insulation, and outstanding aging resistance. PTFE remains virtually unaffected by most chemical reagents. For instance, it maintains its weight and performance even when boiled in concentrated sulfuric acid (98%), nitric acid, hydrochloric acid, or even boiling water, while being insoluble in nearly all solvents.
