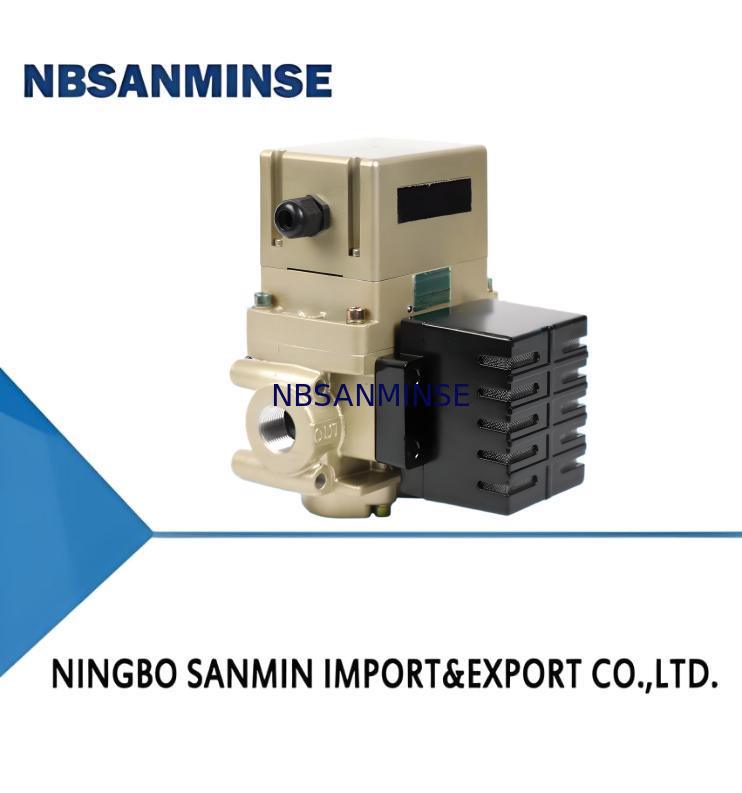

K23JSD-HSAG Series double valves for press machine

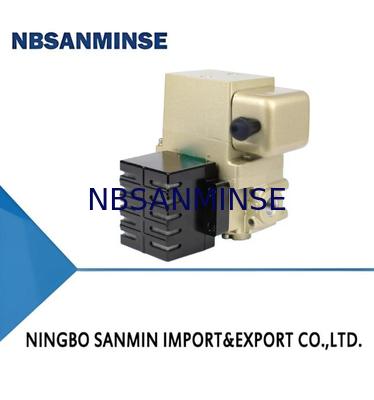

Large Image : K23JSD-HSAG Series double valves for press machine

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K23JSD-HSAG

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K23JSD-HSAG Series double valves for press machine

Description

Working Temp(℃):	5-40	Rated Voltage:	DC 24V
Holding Current:	0.32	Power:	7.7(W)
Working Pressure:	0.3-0.63(Mpa)
Highlight:	Pneumatic solenoid double valve , Press machine solenoid valve , K23JSD-HSAG series valve

Features:

The press safety double valve isused to control the mechanical press clutch, brake action ofimportant pneumatic

safety function components.

When there is any failure of the valve itself, it can reduce the control pressure of the brake and clutch to the

starting pressure, so that the press can stop quickly to ensure the equipment and personal safety

Sensitve_, reliable, durable, with noise reduction.

Symbols:

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Poppet Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Type: Pipe Connection

⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1

⑧ Product Model: HSAG Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Type	Nominal Dia	IN	OUT	M	N	L	G	H	F
K23JSD-L15W	15	G1/2	G1/2	162	165	180	128	35	179
K23JSD-L20W	20	G3/4	G3/4	165	165	205	140	52	185
K23JSD-L25W	25	G1	G1	165	154	205	140	52	185

Parameters	Type	K23JSD-L15W	K23JSD-L20W	K23JSD-L25W
Dia		15	20	25
Port size	IN	G1/2	G3/4	c1
	OUT	G1/2	G3/4	G1
	EX	/	/	/
Range of vorking presure (Mpa)		0.3-0.63
Vorking tenperature(C)		5-40
Direction changing Tine(sec)		≤0.01	≤0.012	≤0.012
Effective zectional area Cv(mn²)	IN OUT	30	90	90
Effective zectional area Cv(mn²)	OUT EX	120	280	320

Valve Type	K23JSD-W	K23JSD-W	K23JSD-W	K23JSD-W	K23JSD-W	K23JSD-W
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current(A)	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current (A)	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption(W)	8	7	9	8	7	9

Valve Type	K23JSD-W
Rated Voltage	DC 24V
Holding Current	0.32
Power Consumption (W)	7.7
