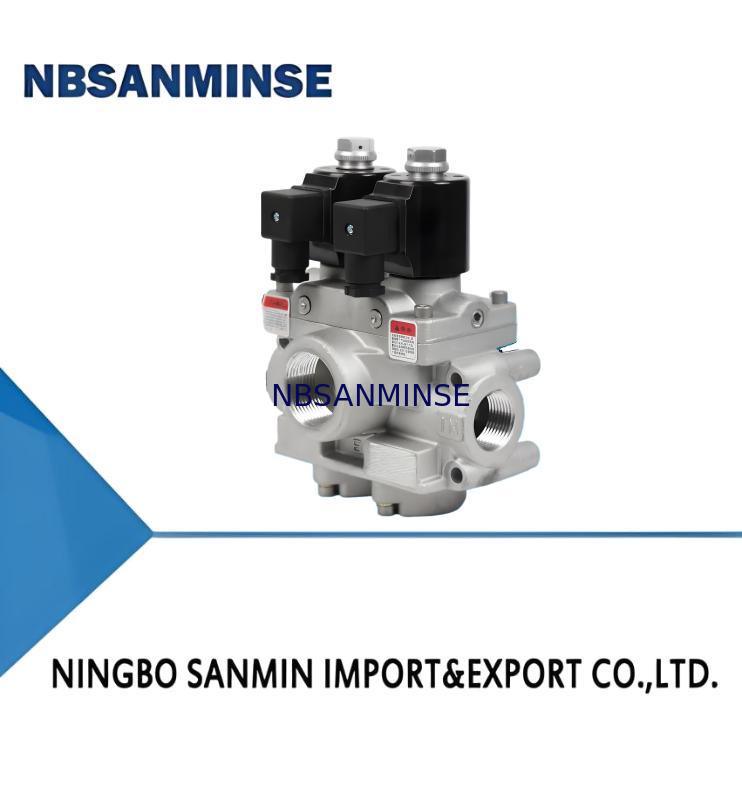

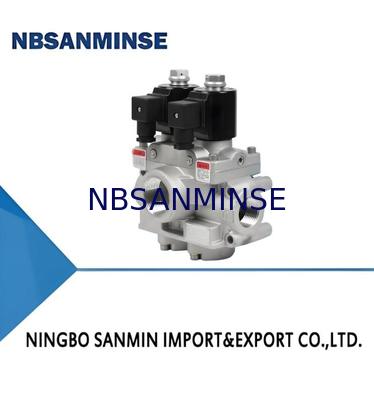

K23JSD-HSX Series double valves for press machine

K23JSD-HSX Series double valves for press machine

Large Image : K23JSD-HSX Series double valves for press machine

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K23JSD-HSX

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K23JSD-HSX Series double valves for press machine

Description

Working Temp(℃):	5-40	Rated Voltage:	DC 24V
Holding Current:	0.32	Power (W):	7.7
Working Pressure(Mpa):	0.2-0.7
Highlight:	Pneumatic solenoid double valve , Press machine solenoid valve , HSX series double valve

Features:

On the basis of many years of use of the punching machine_, further improve the responsiveness_, the pursuit of reliability.

The new solenoid uses DIN terminalsand coil locks to ensure highwater resistance.

A complete range of airclutches and brake controls for small, medium_, large and high speed mechanical stamping.

The valve structure with large exhaust characteristics and fast response can achisve small deviation.

When a vavefails, the cross-sectional area of the exhaust gas pathis greaterthan the cross_-sectional area of the supply

gas path. The pressure on the OUT sideis lower than the operating pressure of the clutch or brake_, so the press does not

operate. The safety factor is higher than that of a singlesolenoid valve configured in the stamping machinery.

Standard equipment with manuallyoperated buttons is regularly checked for easy maintenance.

Order Code:

K23JSD-HSX Series double valves for press machine 0

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Poppet Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Type: Pipe Connection

⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2

⑧ Product Model: HSX Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:

K23JSD-HSX Series double valves for press machine 1

K23JSD-HSX Series double valves for press machine 2

K23JSD-HSX Series double valves for press machine 3

K23JSD-HSX Series double valves for press machine 4

K23JSD-HSX Series double valves for press machine 5

K23JSD-HSX Series double valves for press machine 6

K23JSD-HSX Series double valves for press machine 7

K23JSD-HSX Series double valves for press machine 8

K23JSD-HSX Series double valves for press machine 9
