K23JSD-HSCO Series double valves for press machine

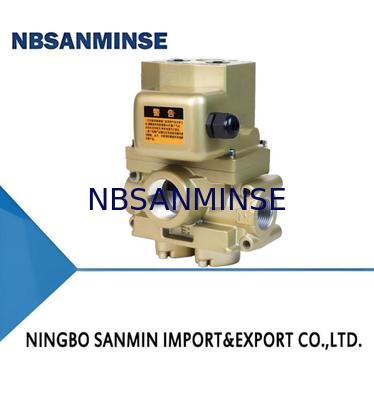

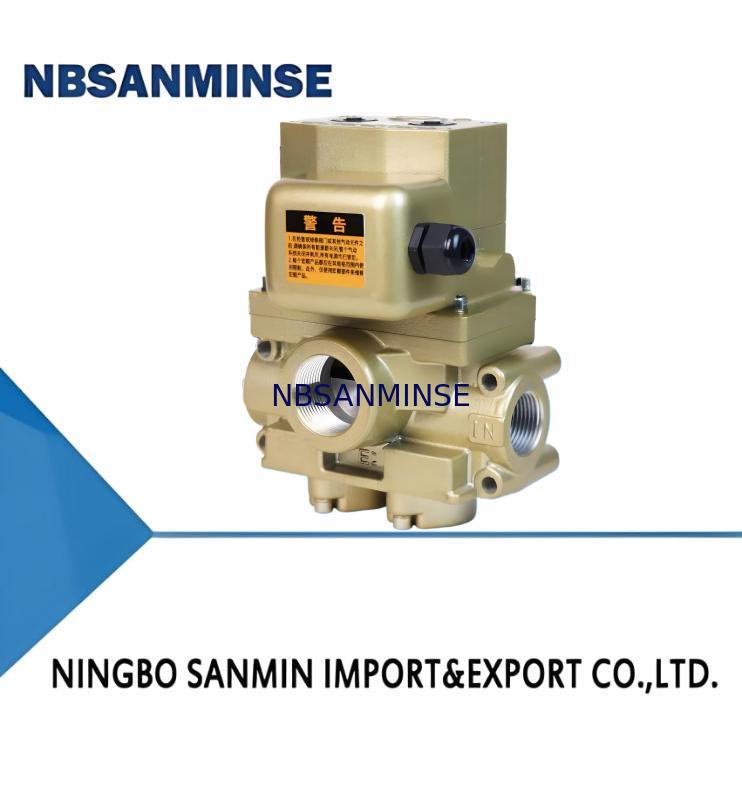

Large Image : K23JSD-HSCO Series double valves for press machine

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K23JSD-HSCO

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K23JSD-HSCO Series double valves for press machine

Description

Rated Voltage:	DC 24V	Holding Current:	0.32
Power (W):	7.7	Working Temp (℃):	5-40
Working Pressure (Mpa):	0.2-0.7
Highlight:	double solenoid valve for press machine , pneumatic double valve with warranty , K23JSD-HSCO series pneumatic solenoid valve

Features:

K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three_-way solenoid valves with

the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's

actions.when one of the valve goes wrong as the "OUT"side"s"air pressure is higher than clutch "s"and break-

ar"s”,the press machine will stop runing,It makes the press machine more safe then those that only have one single

solenoid valve.

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Globe Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Method: Pipe Connection

⑦ Nominal Diameter: 15SC2, 20G1/4, 25G1, 32G1-1/4, 40 G1-1/2

⑧ Product Model: HSV Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:

Outlook Dimension:

Specification:

AC voltage:

DC voltage:
