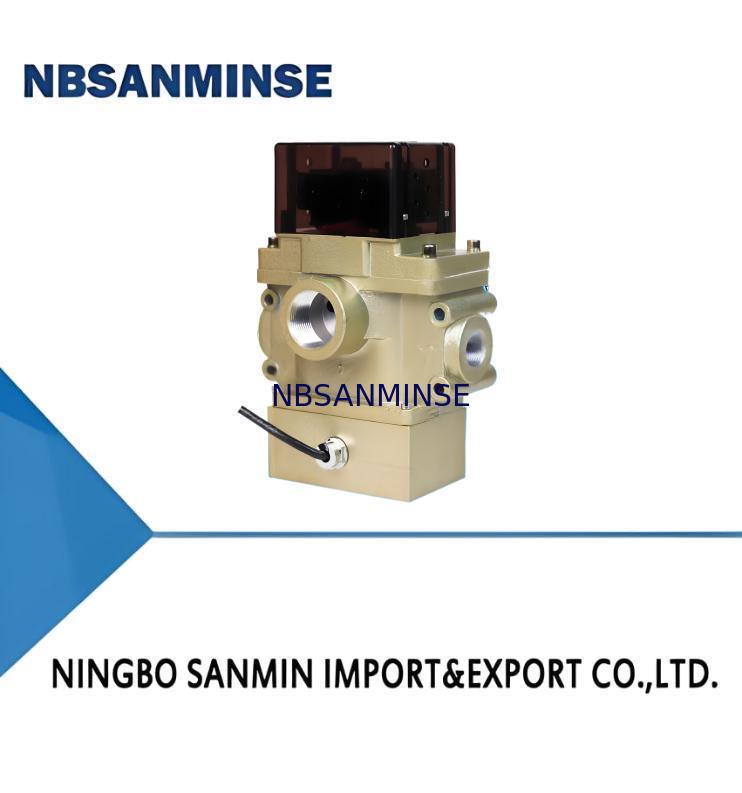

K23JSD-L Series double valves for press machine

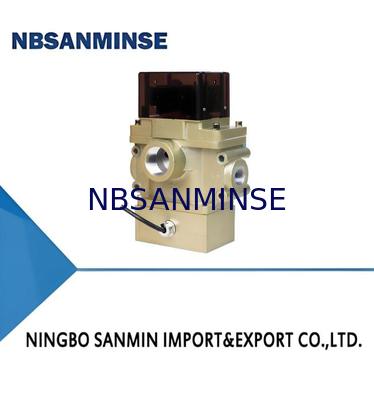

Large Image : K23JSD-L Series double valves for press machine

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K23JSD-L

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K23JSD-L Series double valves for press machine

Description

Rated Voltage:	DC 24V	Holding Current:	0.32
Power:	7.7	Working Temp:	-5 - 50（℃）
Working Pressure:	0.3 - 0.8（Mpa）
Highlight:	Pneumatic solenoid double valves , Press machine solenoid valves , K23JSD-L series pneumatic valves

Features:

K23JSD_-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three_-way solenoid valves with

the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's

aSafety double valves is an exclusive pneumatic element controlling the actions of the brake and cluth of a press

.when the controlling air pressure below the valveitself goes wrong,it makes presssure of the brake and clutch,then

sopping the press quickly to ensure safety ofthe equipment and personal.

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Poppet Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Type: Pipe Connection

⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2

⑧ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:

Outlook Dimension:

Type	Nominal Dia	A	P	0	M	N	L	G	H
K23JSD-L15	15	G1/2	G1/2	G3/4	90	155	226	135	41
K23JSD-L20	20	G3/4	G3/4	G1-1/4	105	170	246	149	52
K23JSD-L25	25	G1	G1	G1-1/4	105	170	246	149	52
K23JSD-L32	32	G1-1/4	G1-1/4	G2	127	254	259	212	77
K23JSD-L40	40	G1-1/2	G1-1/2	G2	127	254	259	212	77

Specification:

Parameters	Type	K23JSD-L15	K23JSD-L20	K23JSD-L25	K23JSD-L32	K23JSD-L40
dia		15	20	25	30	40
port size	P	G1/2	G3/4	G1	G1-1/4	G1-1/2
	A	G1/2	G3/4	G1	G1-1/4	G1-1/2
	0	G3/4	G1-1/4	G1-1/4	G2	G2
Range of working pressure(Hpa)		0.3-0.8
Working temperatureC)		-5~50
Direction changing Time(sec)		≤0.05	≤0.07	≤0.07	≤0.10	≤0.10
Effective sectional area Cv(mm²)	P-A	>30	>90	>90	>140	>140
Effective sectional area Cv(mm²)	A-0	≥120	≥360	≥360	≥560	>560

AC voltage:

Valve Type	K23JSD-L	K23JSD-L	K23JSD-L	K23JSD-L	K23JSD-L	K23JSD-L
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption (W)	8	7	9	8	7	9

DC voltage:

Valve Type	K23JSD-L
Rated Voltage	DC 24V
Holding Current	0.32
Power Consumption (W)	7.7

:voltage

DC voltage
