K22J-WHS Series poppet valves 2/2-way

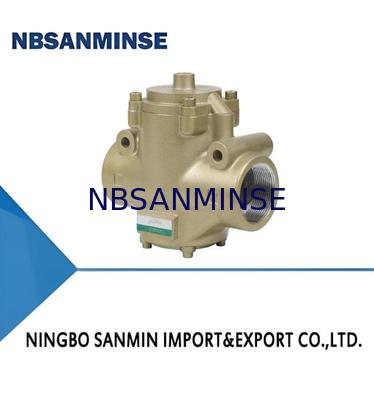

Large Image : K22J-WHS Series poppet valves 2/2-way

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K22J-WHS

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K22J-WHS Series poppet valves 2/2-way

Description

Rated Voltage:	DC 24V	Holding Current:	0.32
Power:	7.7(W)	Working Temp.:	-5~50(℃)
Working Pressure:	0.2 - 0.8(Mpa)
Highlight:	K22J-WHS poppet solenoid valve , 2/2-way pneumatic solenoid valve , Poppet valve with solenoid actuator

Features:

K22J-W series is a two-position two-way pipe connection cut-off

direction. Reasonable easy to move and repair, especially

suitable for harsh working conditions. Separate control and pneu_-

matic control.

Order Code:

① Medium: Air

② Circuit Form: 2/2 Way

③ Valve Body Form: Poppet Type

④ Single Electric Control with K Pneumatic Control

⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2, 50 G2, 63 G-1/2

⑥ Product Model: WHS

⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V

Symbols:

Type	Nominal Dia	Threads G	A	B	C	D	Imperial L	φG	M	H
K22J1-8W	8	G1/4	169.5	89	78	73	84	φ8.5	39	38
K22J1-10W	10	G3/8	169.5	89	78	73	84	φ8.5	39	38
K22J1-15W	15	G1/2	169.5	89	78	73	84	φ8.5	39	38
K22J1-20W	20	G3/4	185	113	78	82	105	φ8.5	39	52
K22J1-25W	25	G1	185	113	78	82	105	φ8.5	39	52
K22J1-32W	32	G1-1/4	240	165	91	118	152	φ13	59	75
K22J1-40W	40	G1-1/2	240	165	91	118	152	φ13	59	75
K22J1-50W	50	G2	240	165	91	118	152	φ13	59	75
K22J1-63W	63	G2-1/2	280	214	135	155.5	240	φ13.5	77	100

Valve Type	K22JD-W	K22JD-W	K22JD-W	K22JD-W	K22JD-W	K22JD-W
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption (W)	8	7	9	8	7	9

Valve Type	K22JD-W
Rated Voltage	DC 24V
Holding Current	0.32
Power Consumption(W)	7.7
