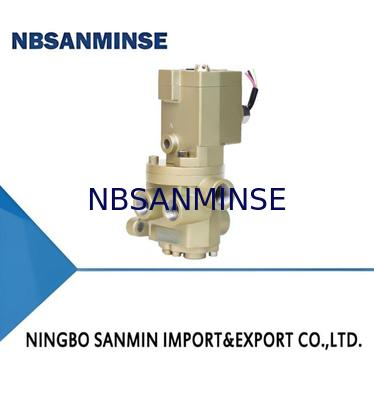

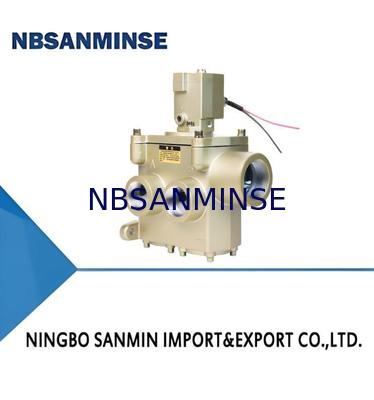

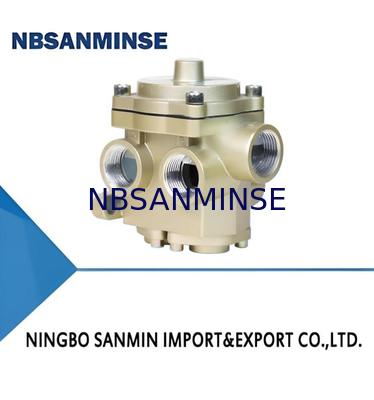

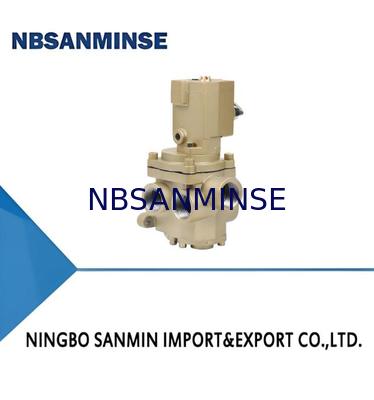

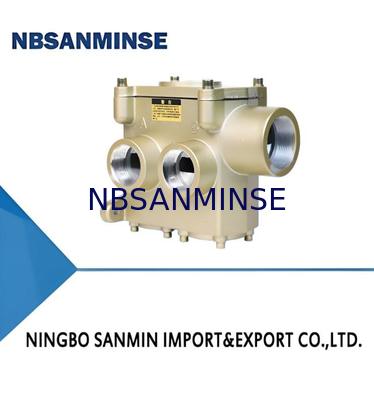

K25J-WHS Series poppet valves 5/2-way

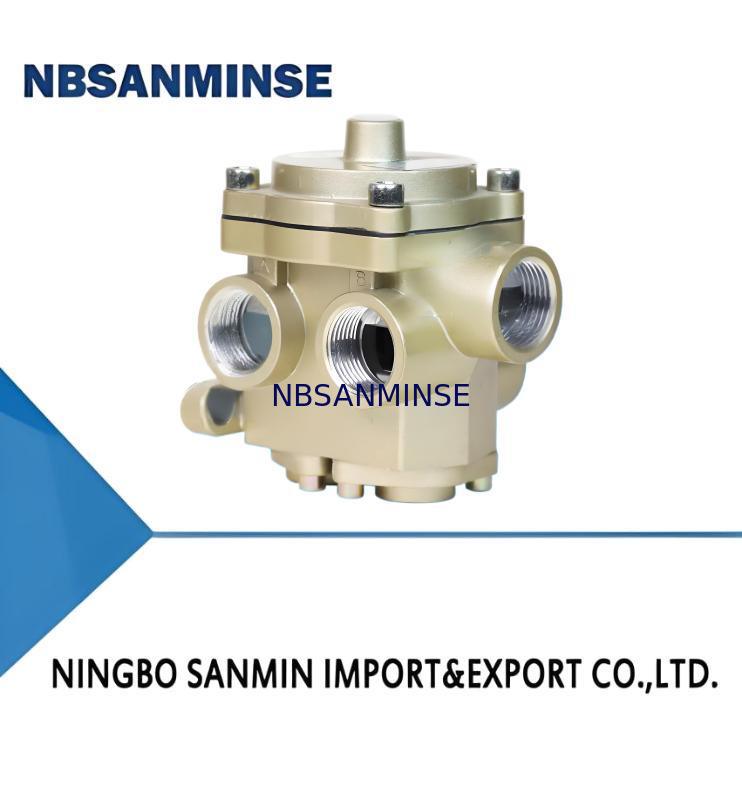

Large Image : K25J-WHS Series poppet valves 5/2-way

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K25J-WHS

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K25J-WHS Series poppet valves 5/2-way

Description

Rated Voltage:	DC 24V	Holding Current:	0.32
Power:	7.7(W)	Working Temp.:	-5~50(℃)
Working Pressure:	0.2 - 0.8(Mpa)
Highlight:	5/2-way pneumatic solenoid valve , K25J-WHS poppet valve , solenoid valve with poppet design

Features:

K25J-W series is a Five_-position two-way pipe connection cut-off

direction. Reasonable, easy to move and repair, especially

suitablefor harsh working conditions. Separate control and pneu_-

matic control.

Order Code:

① Medium: Air

② Circuit Form: 2/5 Way

③ Valve Body Form: Poppet Type

④ D Single Electric Control with K Pneumatic Control

⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2, 50 G2

⑥ Product Model: ZHS

⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V

Symbols:

Type	Nominal Dia	Threads (Imperial G)	A	B	C	D	E	F	L	φG	R
K25J-8W	8	G1/4	160	94	94	45	32	31	100	φ9	43.5
K25J-10W	10	G3/8	160	94	94	45	32	31	100	φ9	43.5
K25J-15W	15	G1/2	160	94	94	45	32	31	100	φ9	43.5
K25J-20W	20	G3/4	220	127	124	52	47	52	132	φ10.5	52
K25J-25W	25	G1	220	127	124	52	47	52	132	φ10.5	52
K25J-32W	32	G1-1/4	280	155	220	67	55	111	187	φ11	80
K25J-40W	40	G1-1/2	280	155	220	67	55	111	187	φ11	80
K25J-50W	50	G2	280	155	220	67	55	111	187	φ11	80

Valve Type	K25JD-W	K25JD-W	K25JD-W	K25JD-W	K25JD-W	K25JD-W
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption (W)	8	7	9	8	7	9

Valve Type	K25JD-W
Rated Voltage	DC 24V
Holding Current	0.32
Power Consumption (W)	7.7
