K22J-WHSX Series poppet valves 2/2-way

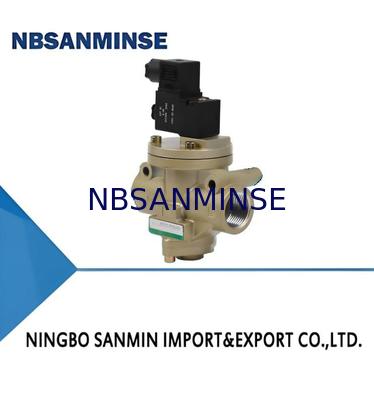

Large Image : K22J-WHSX Series poppet valves 2/2-way

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K22J-WHSX

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K22J-WHSX Series poppet valves 2/2-way

Description

Rated Voltage:	DC 24V	Holding Current:	0.32
Power:	7.7(W)	Working Temp.:	-5~50(℃)
Working Pressure:	0.2 - 0.8(Mpa)
Highlight:	K22J-WHSX poppet solenoid valve , 2/2-way pneumatic solenoid valve , poppet valve with warranty

Features:

K22J_-W series is a two-position two-way pipe connection cut-off direction.

Reasonable, easy to move and repair, especially suitable for harsh working conditions.

Separate control and pneumatic control.

Order Code:

① Medium: Air

② Circuit Form: 2/2 Way

③ Valve Body Form: Poppet Type

④ Control Form: D Single Electric Control, Electric Control

⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2, 50 G2

⑥ Product Model: WHSX

⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V

Symbols:

Outlook Dimension:

Type	Nominal Dia	Threads(Imperial G)	B	C	D	φG	M	N	H
K22J-8W	8	G1/4	89	78	73	φ8.5	39	160	38
K22J-10W	10	G3/8	89	78	73	φ8.5	39	160	38
K22J-15W	15	G1/2	89	78	73	φ8.5	39	160	38
K22J-20W	20	G3/4	113	78	82	φ8.5	39	175	52
K22J-25W	25	G1	113	78	82	φ8.5	39	175	52
K22J-32W	32	G1-1/4	165	91	118	φ13	59	195	75
K22J-40W	40	G1-1/2	165	91	118	φ13	59	195	75
K22J-50W	50	G2	165	91	118	φ13	59	195	75

Specification:

AC voltage:

Valve Type	K22JD-W	K22JD-W	K22JD-W	K22JD-W	K22JD-W	K22JD-W
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption (W)	8	7	9	8	7	9

DC voltage:

Valve Type	K22JD-W
Rated Voltage	DC 24V
Holding Current	0.32
Power Consumption (W)	7.7
