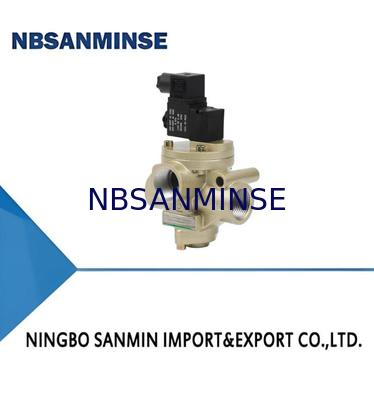

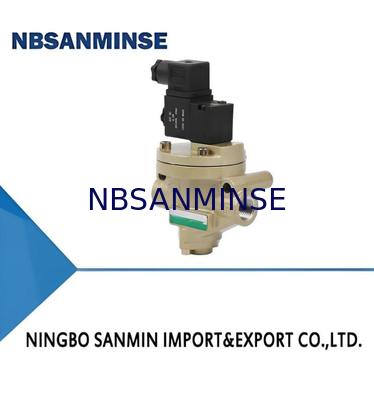

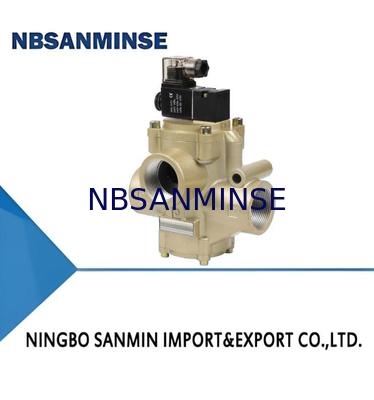

K23J-WHSX Series poppet valves 3/2-way

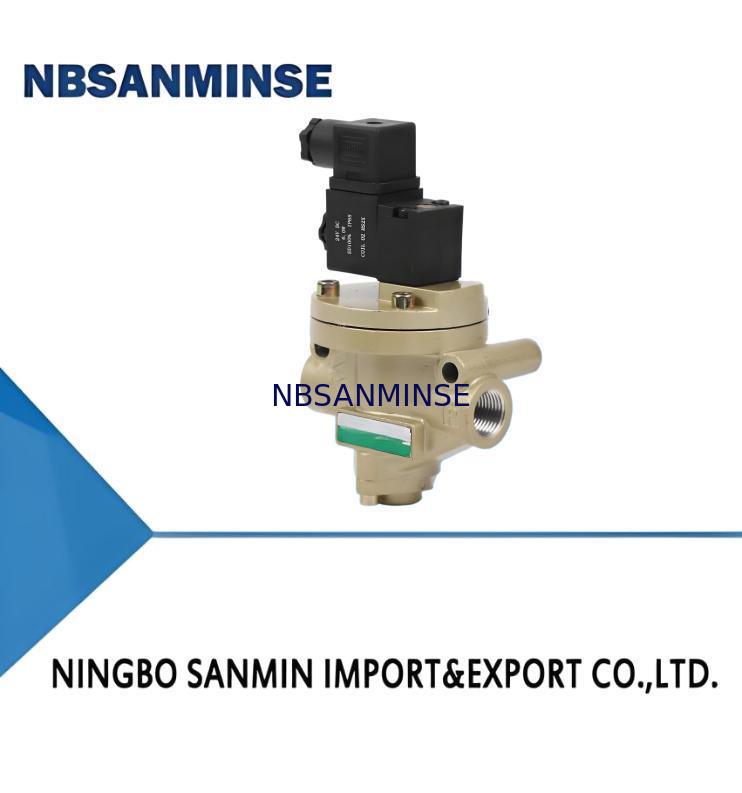

Large Image : K23J-WHSX Series poppet valves 3/2-way

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	K23J-WHSX

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

K23J-WHSX Series poppet valves 3/2-way

Description

Rated Voltage:	DC 24V	Holding Current:	0.32
Power (W):	7.7	Working Temp. (℃):	-5 - 50
Working Pressure (Mpa):	0.2 - 0.8
Highlight:	3/2-way pneumatic solenoid valve , K23J-WHSX poppet valve , solenoid valve with poppet design

Features:

K23J-W series is a three_-position two_-way pipe connection cut-off direction.

Reasonable, easy to move and repair_, especially suitable for harsh working

conditions. Separate control and pneumatic control.

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Poppet Type

④ Control Form: D Single Electric Control, Electric Control

⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2, 50 G2

⑥ Product Model: WHS

⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V

Symbols:

Outlook Dimension

K23J-WHSX Series poppet valves 3/2-way 3

Specification

K23J-WHSX Series poppet valves 3/2-way 4

AC Voltage

K23J-WHSX Series poppet valves 3/2-way 5

DC Voltage

K23J-WHSX Series poppet valves 3/2-way 6
