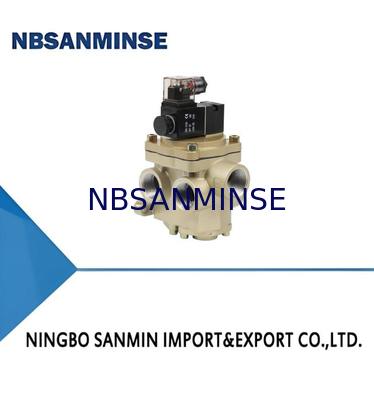

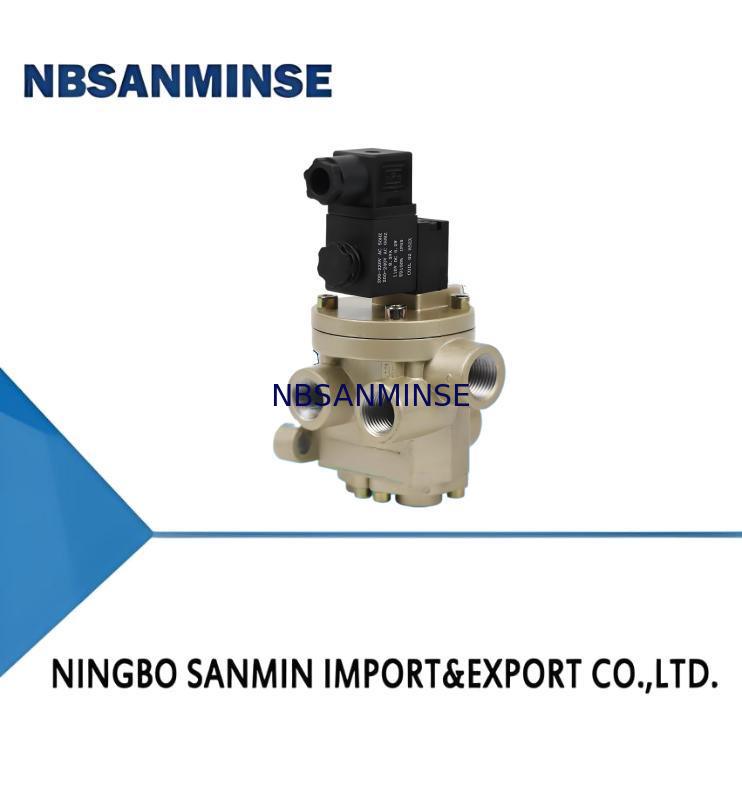

K25J-WHSX Series poppet valves 5/2-way

K25J-WHSX Series poppet valves 5/2-way
K25J-WHSX Series poppet valves 5/2-way K25J-WHSX Series poppet valves 5/2-way

Large Image :  K25J-WHSX Series poppet valves 5/2-way

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: K25J-WHSX
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

K25J-WHSX Series poppet valves 5/2-way

Description
Rated Voltage: DC 24V Holding Current: 0.32
Power: 7.7(W) Working Temp.: -5 - 50(℃)
Working Pressure: 0.2 - 0.8(Mpa)
Highlight:

5/2-way pneumatic poppet valve

,

K25J-WHSX solenoid valve

,

industrial pneumatic solenoid valve

Features:
K25J-W series is a Five-position two-way pipe connection cut-off direction.
Reasonable, easy to move and repair, especially suitable for harsh working
conditions. Separate control and pneumatic control.
Order Code:
K25J-WHSX Series poppet valves 5/2-way 0
① Medium: Air
② Circuit Form: 2/5 Way
③ Valve Body Form: Poppet Type
④ Control Form: D Single Electric Control, Electric Control
⑤ Nominal Diameter: 08 G1/4, 10 G3/8, 15 G1/2, 20 G3/4, 25 G1, 35 G1-1/4, 40 G1-1/2
⑥ Product Model: WHSJ
⑦ Rated Voltage: AC380V, AC220V, AC110V, AC36V, DC220V, DC110V, DC24V
Symbols:
 K25J-WHSX Series poppet valves 5/2-way 1
K25J-WHSX Series poppet valves 5/2-way 2

Outlook Dimension

Type Nominal Dia Threads G(Imperial) B C D E F φG R M
K25J-8W 8  G1/4 95  94  45  32  31  φ9.0 43.5  160
K25J-10W 10  G3/8 95  94  45  32  31  φ9.0 43.5  160
K25J-15W 15  G1/2 95  94  45  32  31  φ9.0 43.5  160
K25J-20W 20  G3/4 127  124  52  47  52  φ10.5 58  195
K25J-25W 25  G1 127  124  52  47  52  φ10.5 58  195
K25J-32W 32  G1-1/4 155  220  67  55  111  φ11 80  215
K25J-40W 40  G1-1/2 155  220  67  55  111  φ11 80  215

Specification

K25J-WHSX Series poppet valves 5/2-way 3

AC Voltage

Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29  0.25  0.27  0.14  0.12  0.13
Holding Current 0.15  0.12  0.15  0.08  0.06  0.07
PowerConsumption  (W) 8  7  9  8  7  9

DC Voltage

Valve Type K25JD-W
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7




Tag:

pneumatic electric valve,

pneumatic air valve,

pneumatic directional control valve
