10A-5ST

10A-5ST
10A-5ST

Large Image :  10A-5ST

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO901
Model Number: 10A-5ST
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

10A-5ST

Description
Highlight:

1-10 bar Pneumatic Solenoid Valve

,

15 bar Solenoid Valve

,

50-700mm/s Air Control Valve

I.Features:

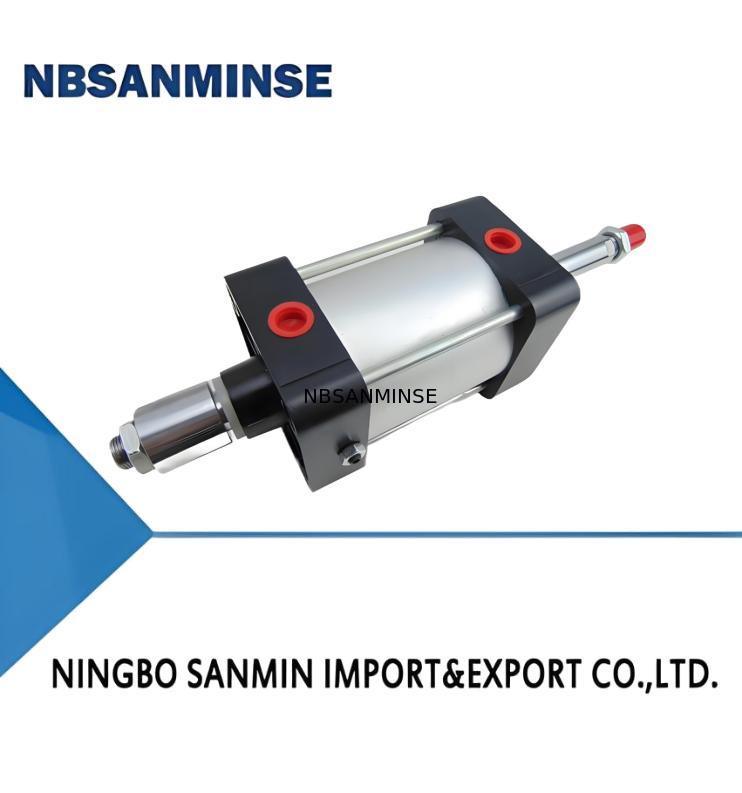

This product is developed based on the QGEW-2 series double piston rod cylinder. It is composed by extending the thread length at the piston rod end and installing an adjusting screw sleeve. Adjusting the stroke-adjusting screw sleeve can effectively adjust the extension stroke of the cylinder

II.Model:

10A-5ST 0

III. Main Technical Parameters:

Cylinder Bore Diameter D (mm) φ32 φ40 φ50 φ63 φ80 φ100 φ125 φ160 φ200
Maximum Stroke S (mm) 500  800  1600
Operating Pressure Range 1~10 bar
Proof Pressure 15 bar
Operating Speed Range 50-700mm/s
Operating Temperature Range -25-+80℃ (under non-freezing conditions)
Working Medium Purified compressed air
Lubrication Not required (Lubrication optional)
Cushion Adjustable cushion on both sides
Cushion Stroke (mm) 25  25  28

IV. Graphical Symbols, Outline and Installation Dimensions

Standard Type

SD (Basic Type)

10A-5ST 1

Dimension Table:

10A-5ST 2
