QGA QGB Pneumatic Solenoid Valve with 1.5-8 bar Operating Pressure 12 bar Proof Pressure and -25 to +80°C Temperature Range

Large Image : QGA QGB Pneumatic Solenoid Valve with 1.5-8 bar Operating Pressure 12 bar Proof Pressure and -25 to +80°C Temperature Range

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	QGA QGB

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

QGA QGB Pneumatic Solenoid Valve with 1.5-8 bar Operating Pressure 12 bar Proof Pressure and -25 to +80°C Temperature Range

Description

Highlight:

1.5-8 bar Pneumatic Solenoid Valve

12 bar Proof Pressure Solenoid Valve

-25 to +80°C QGA QGB Valve

QGA QGB Series Cylinders

Product Features

Traditional product with long production history, continuously improved for reliability and durability
Wide bore diameter range from Φ32 to Φ400 with customizable stroke lengths
Construction materials vary by size:
- Φ32-Φ100: Aluminum alloy end caps with hard anodized precision aluminum tube
- Φ125-Φ400: Cast iron end caps with hard chrome plated precision seamless steel tube
Multiple installation accessories and connectors available for various application requirements

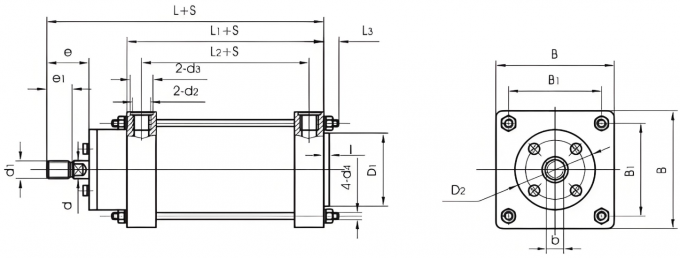

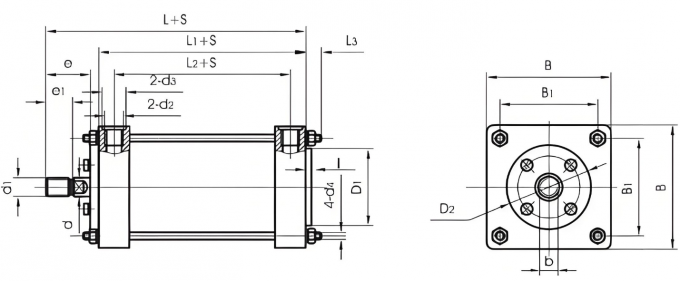

Graphical Symbols and Appearance

Cylinder without Cushion

Cylinder with Cushion

Main Technical Parameters

Model	QGA QGB	QGAI QGBI
Bore Diameter (mm)	32 \| 40 \| 50 \| 63 \| 80 \| 100 \| 125 \| 160 \| 200 \| 250 \| 320 \| 400
Maximum Stroke (mm)	500 \| 800 \| 1000 \| 2000
Operating Pressure (bar)	1.5～8
Proof Pressure (bar)	12
Operating Temperature Range (℃)	-25~+80 (under non-freezing conditions)
Working Medium	Purified compressed air containing oil mist
