Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SF-6 SF-8-2 SF-8-3 SF-8A SF-8B
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

solenoid valves

Description
DN: Φ8 Voltage: DC12V, DC24V
Connection: (Cannula) Pressure: 0-0.03bar

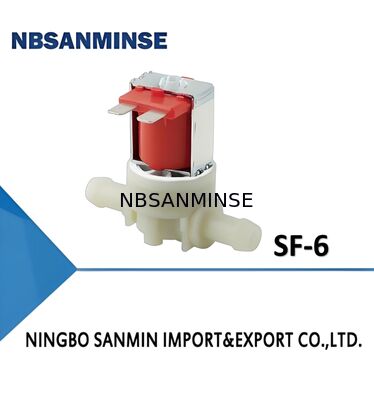

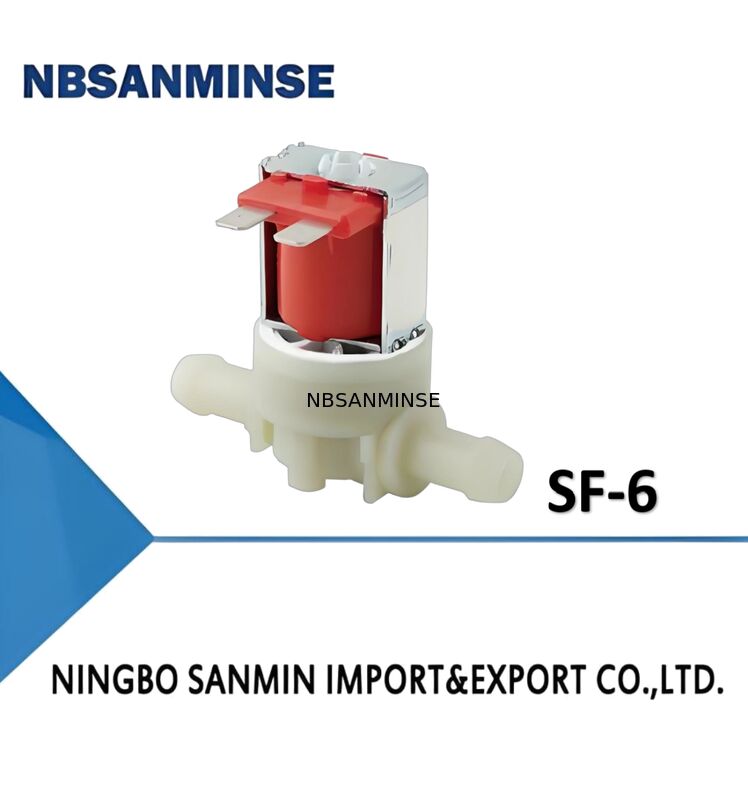

SF-6(Technical Parameters):

Form Normally closed
Pressure 0-0.02bar
Working medium water
DN Φ8.5
Voltage DC12V, DC24V,AC110V,AC230V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 0

Specifications

Technical Parameter
Type Normally Closed
DN Φ8mm
Rated Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Applicable Medium Water
Applicable Ambient Temperature 0-50℃
Applicable Medium Temperature 0-100℃
Operating Pressure Range 0-0.02bar
Connection Cannula
Service Life 100,000 Cycles

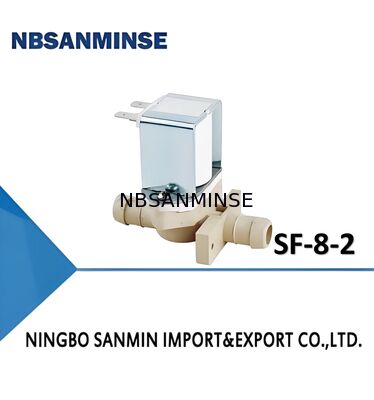

SF-8-2(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ8
Voltage DC12V, DC24V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 1

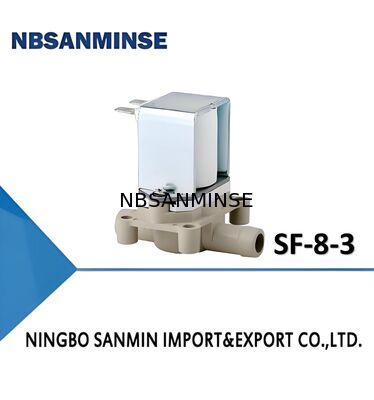

SF-8-3(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ8
Voltage DC12V, DC24V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 2

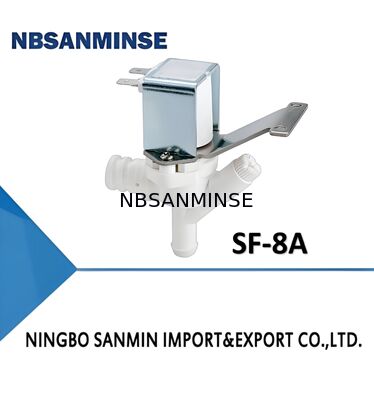

SF-8A(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ8
Voltage DC12V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 3

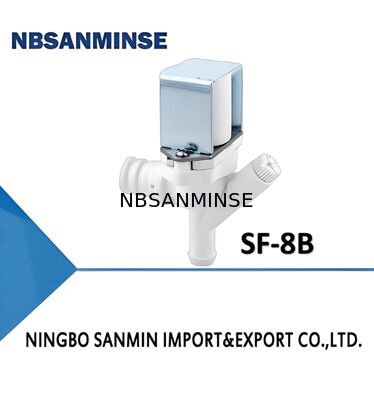

SF-8B(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ8
Voltage DC12V
Connection (Cannula)

(2/3way valveN.C.)

solenoid valves 4
