solenoid valves

solenoid valves
solenoid valves solenoid valves solenoid valves solenoid valves

Large Image :  solenoid valves

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SF-9 SF-9A SF-9C SF-9E
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

solenoid valves

Description
Pressure: 0-0.03bar DN: Φ8
Voltage: DC12V Working Medium: Water

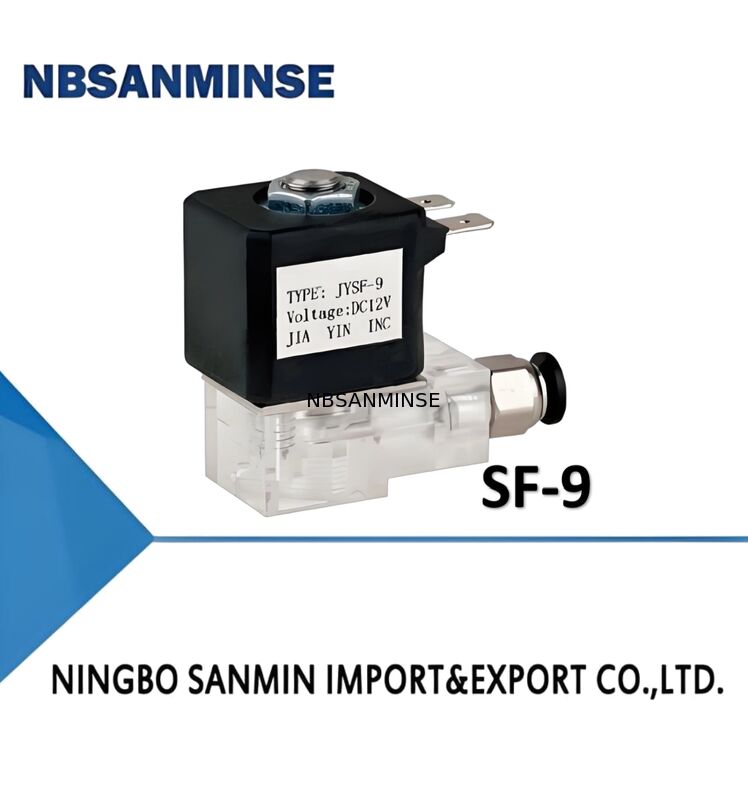

SF-9(Technical Parameters):

Form Normally closed
Pressure 0-6bar
Working medium water
DN Φ2.9
Voltage DC12V, DC24V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 0

Specifications

Technical Parameter
Type Normally Closed
DN Φ9mm
Rated Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Applicable Medium Water
Applicable Ambient Temperature 0-50℃
Applicable Medium Temperature 0-100℃
Operating Pressure Range 0-0.03bar
Connection Cannula
Service Life 100,000 Cycles

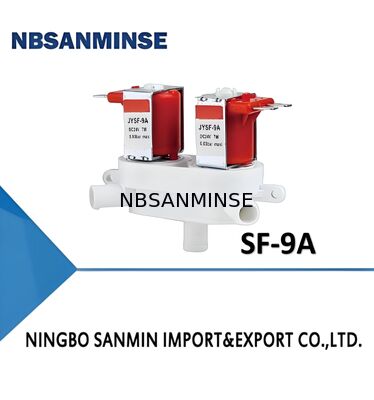

SF-9A(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ8
Voltage DC12V, DC24V
Connection (Cannula)

solenoid valves 1

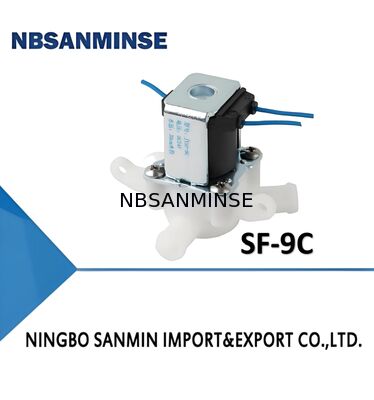

SF-9C(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ9
Voltage

DC12V, DC24V,DC36V,

AC110V,AC120V,AC230V
Connection (Cannula)

solenoid valves 2

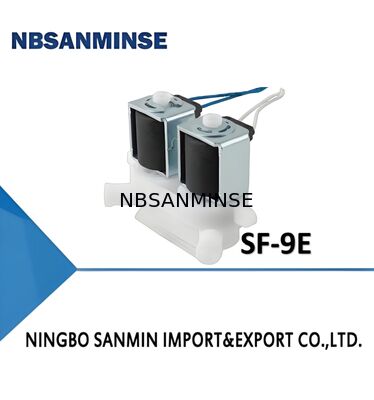

SF-9E(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ8
Voltage

DC12V, DC24V,DC36V,

AC110V,AC120V,AC230V
Connection (Cannula)

solenoid valves 3

Specifications

Technical Parameter
Type Normally Closed
DN Φ8mm
Rated Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Applicable Medium Water
Applicable Ambient Temperature 0-50℃
Applicable Medium Temperature 0-100℃
Operating Pressure Range 0-0.03bar
Connection Cannula
Service Life 100,000 Cycles
